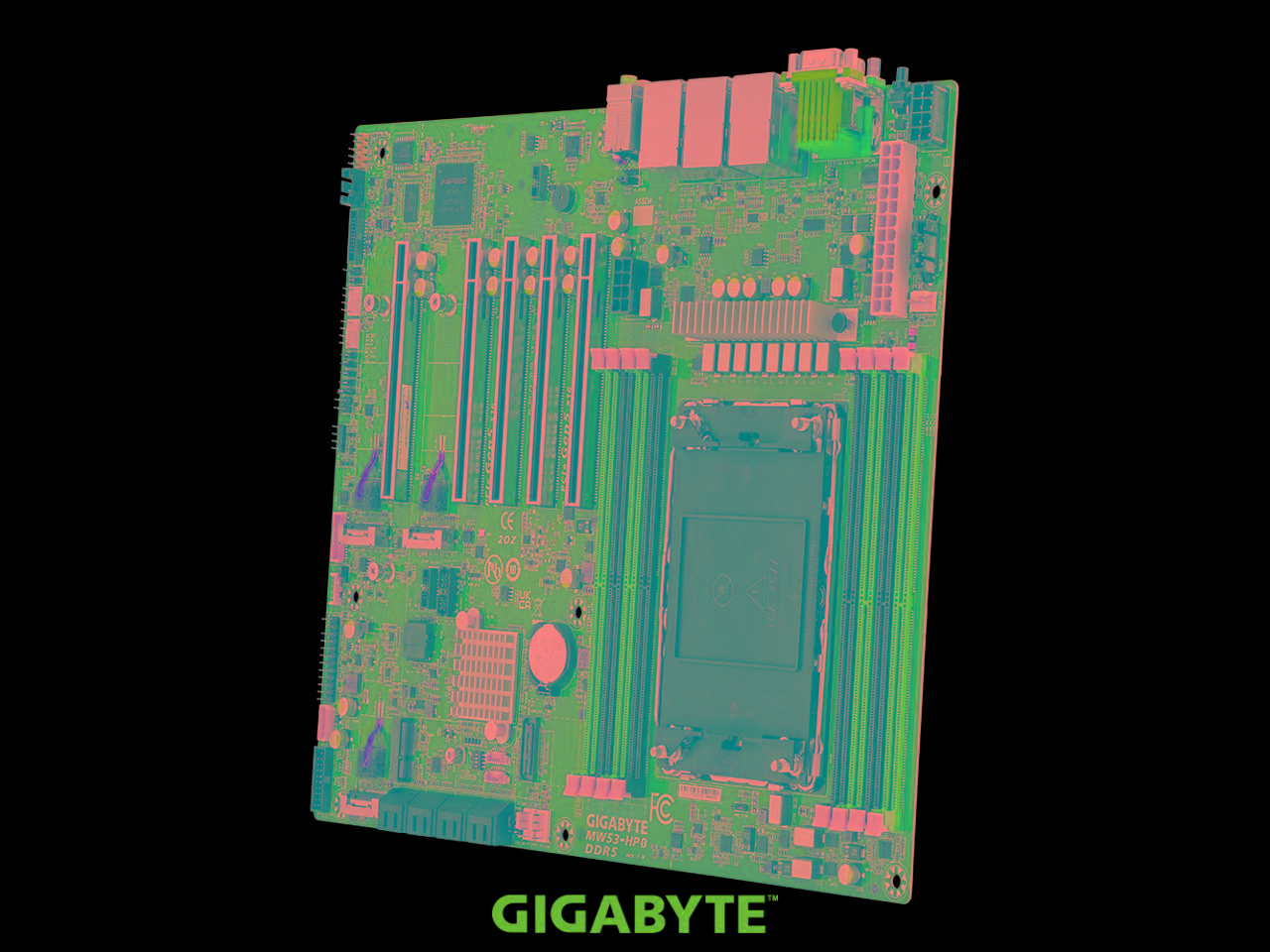

Gigabyte MW53-HP0 Workstation Motherboard - Intel W790 Chipset - Socket LGA-4677 - ATX Gigabyte MW53-HP0 Workstation Motherboard - Intel W790 Chipset - Socket LGA-4677 - ATX

International Customers: All electronic products are packaged for sale in the US with US voltage.

Environmental Compliance:

China Restriction of Hazardous Substances (China RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Product Description

This item is brand-new, factory sealed.

Motherboard - Intel Xeon W-3500/2500/3400/2400 - ATX UP


Single Intel Xeon W-3500/3400 Processors

Single Intel Xeon W-2500/2400 Processors

4-Channel DDR5 RDIMM, 8 x DIMMs

Intel W790 Chipset

2 x 2.5Gb/s LAN ports via Intel I226-LM

8 x SATA 6Gb/s ports

3 x M.2 slots with PCIe Gen4 x4 interface

1 x M.2 slot with PCIe Gen3 x1 interface for Wi-Fi add-in cards

4 x PCIe Gen5 x16 expansion slots

1 x PCIe Gen3 x4 expansion slot


Intel Xeon W-3500 & W-2500 Platform

New Expert 1S and Mainstream Workstation Solutions

Compute heavy workloads rely on the best and latest CPU technology to deliver excellent performance while the new Xeon line of processors with Intel spans from high-end to more affordable chips. Intels new workstation processors bring many important technological advancements that greatly benefit a wide range of disciplines from Engineering to Data Science to Media & Entertainment. PCIe 5.0 provides the highest possible throughput between CPU and GPU or SSD, including support for CXL devices. Couple that with higher CPU performance across all workloads, these new Xeon workstation CPUs can also crunch memory intensive workloads faster with DDR5 memory and AI/DL workloads have more floating point formats to choose from.


MW53-HP0 Product Overview

MW53-HP0 is an expert workstation motherboard which is designed to support Intel Xeon W-3500/3400 & W-2500/2400 Processors including the all-new architecture optimizes CPU performance so that creatives, engineers and data scientists can work at their best computing environment. Form Factor
ATX
304.8W x 244D mm CPU
Intel Xeon W-3500 ProcessorsNote
Intel Xeon W-2500 Processors
Intel Xeon W-3400 ProcessorsNote
Intel Xeon W-2400 Processors
Single processor, TDP up to 385W
Note: Carriers for Intel Xeon W-3500/3400 Processors are not included. Please refer to the optional parts for proper support. Socket
1 x LGA 4677 Chipset
Intel W790 Memory
8 x DIMM slots
DDR5 memory supported only
4-channel memory architecture
RDIMM up to 64GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0. LAN
2 x 2.5Gb/s LAN ports (2 x Intel I226-LM)
1 x 10/100/1000 Mbps Management LAN Video
Integrated in Aspeed AST2600
- 1 x VGA port Audio
Realtek ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio jacks (Audio in/Audio out/Mic) Storage Interface
PCH:
- 8 x SATA 6Gb/s ports RAID
Intel SATA RAID 0/1/10/5 Expansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU
Slot_2: PCIe x16 (Gen3 x4) slot, from PCH
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
4 x System fan headers
1 x Front audio header
2 x USB 3.2 Gen1 headers
3 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header Rear I/O
1 x USB 3.2 Gen2x2 (Type-C)
5 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010 OS Compatibility
CentOS Stream 9 (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64) Board Management
Aspeed AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors Operating Properties
Operating temperature: 10oC to 40oC
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40oC to 60oC
Non-operating humidity: 20%-95% (non-condensing)Item Dimension (L inchxW inchxH inch)
15 x 13 x 4

Weight
6.00 lb

Warranty Information
1 year SpecificationPhysical CharacteristicsForm FactorATXWidth12"Depth9.6"I/O ExpansionsTotal Number of Expansion Slots5PCI Express Standard

• PCI Express 3.0
• PCI Express 5.0

Number of PCI Express x16 Slots5Total Number of PCI Express Slots5MemoryMemory TechnologyDDR5 SDRAMNumber of Memory Slots8Memory Speed Supported

• 4800 MHz
• 4400 MHz

Memory Form Factor
