High Quality &High Performance

HD-SDI Fiber Optical Media converters with Ethernet and Bi-directional RS-485 data

Overview:

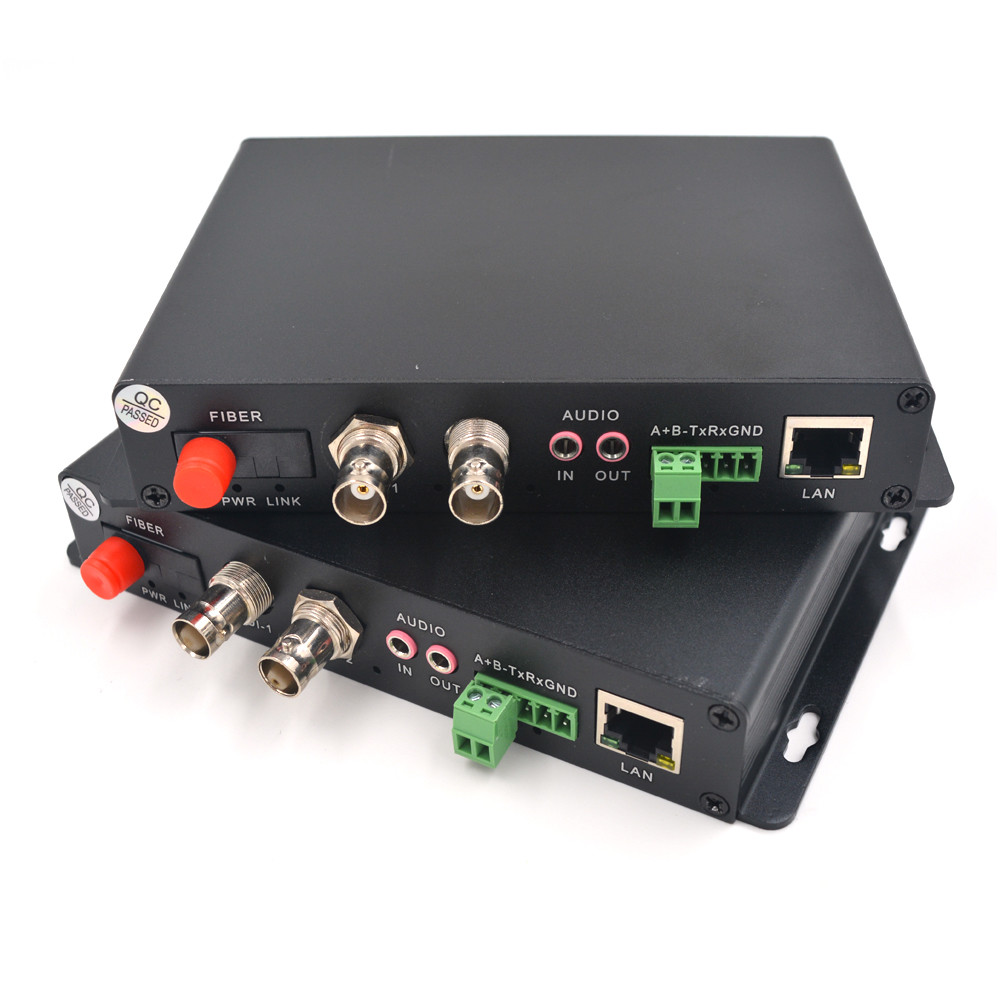

The HXT-HD-1SDI-R-E is a HD-SDI over singlemode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of one HD/SD-SDI signal with embedded audio signal and has offerirectional RS485 data channel for camera control also loop-out connectors on the transmitter & receiver for monitoring. The system support signals accord with standards support digital TV signals such as DVB-ASImeeting the industrialrequirements of audio and video equipment with high performanceand reliability. In addition, our innovative QuestTel video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.

Function:

• 1x HD-SDI in and loop out
• 1x RS-485 data (bi-directional, reverse direction is optional)
• 1x 10/100M Ethernet

Features:

1. 100% Brand-New
2. Support transmission of one-way high-definition SDI video over asingle-mode fiber with FC/FC fiber or a multimode fiber
3. Support 10/100Mbps ethernet
4. Support RS-485 data (offerirectional, reverse direction is optional ) , control PTZ .
5. Support high-definition HD-SDI (1.485Gbps) (SD-SDI and 3G-SDI is optional, if need, contact us);
6. Compatiable with 1080P@30 and backward,1080i@60 and backward
7. Support SMPTE292M(HD-SDI),SMPTE259M(SD-SDI) standard.
8. The maximum cable length: SD 400m; HD 200M .
9. Working distance: Single-mode 0-20Km, compatiable with multimode fiber 0~500m.
10. Wavelength : Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm)
11. Package:carton box

Package Include:

• 1 x HD-SDI Transmitter
• 1 x HD-SDI Receiver
• 2x Power adaptor AC100~240VDC5V/2A (default US, EU/UK/AU available)
• 1x FC/FC 3m singlemode fiber patchcord
• 1x Manual
