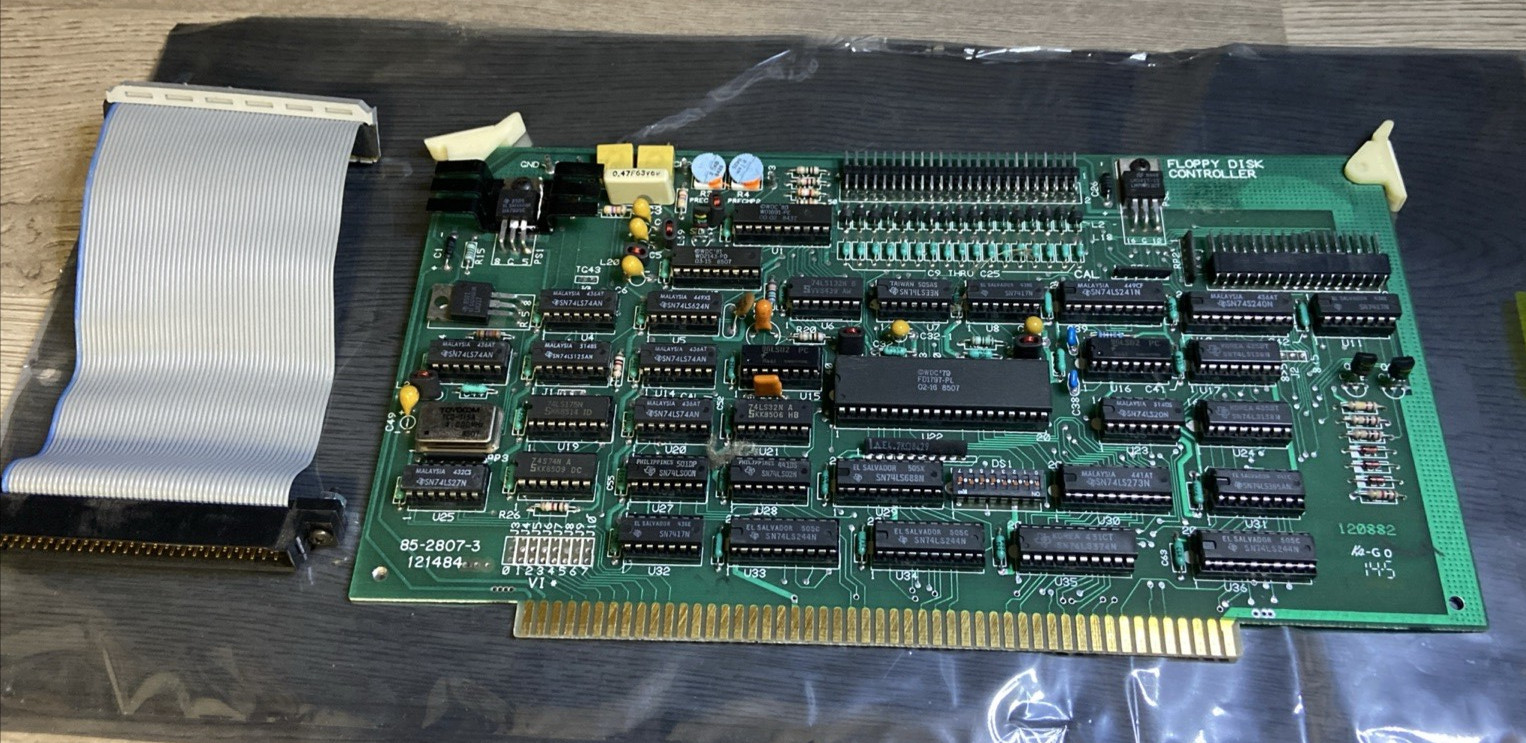

Vintage Heathkit / Zenith Z-207 Floppy Disk Controller Card

Original floppy disk controller board for the Heath/Zenith Z-100 series computer.

Board CORP
FLOPPY DISK CONTROLLER

Features the original Western Digital floppy-controller chipset including the FD1797-PL, WD1691-PE, and WD2143-PD. The Z-207 controller is documented by Heath/Zenith for the H/Z-100 family.

Includes the attached ribbon cable shown in the photos.

This is the later 85-2807-3 revision. Board appears complete overall and is in good vintage cosmetic condition. There are several visible factory/service-style jumper wires and solder modifications on the underside, so buyers should review all photos carefully. I would not describe those as damage without knowing their history.

Untested and sold as-is due to age. No attempt has been made to install or operate the controller. Please verify compatibility with your system before purchase.
