Description

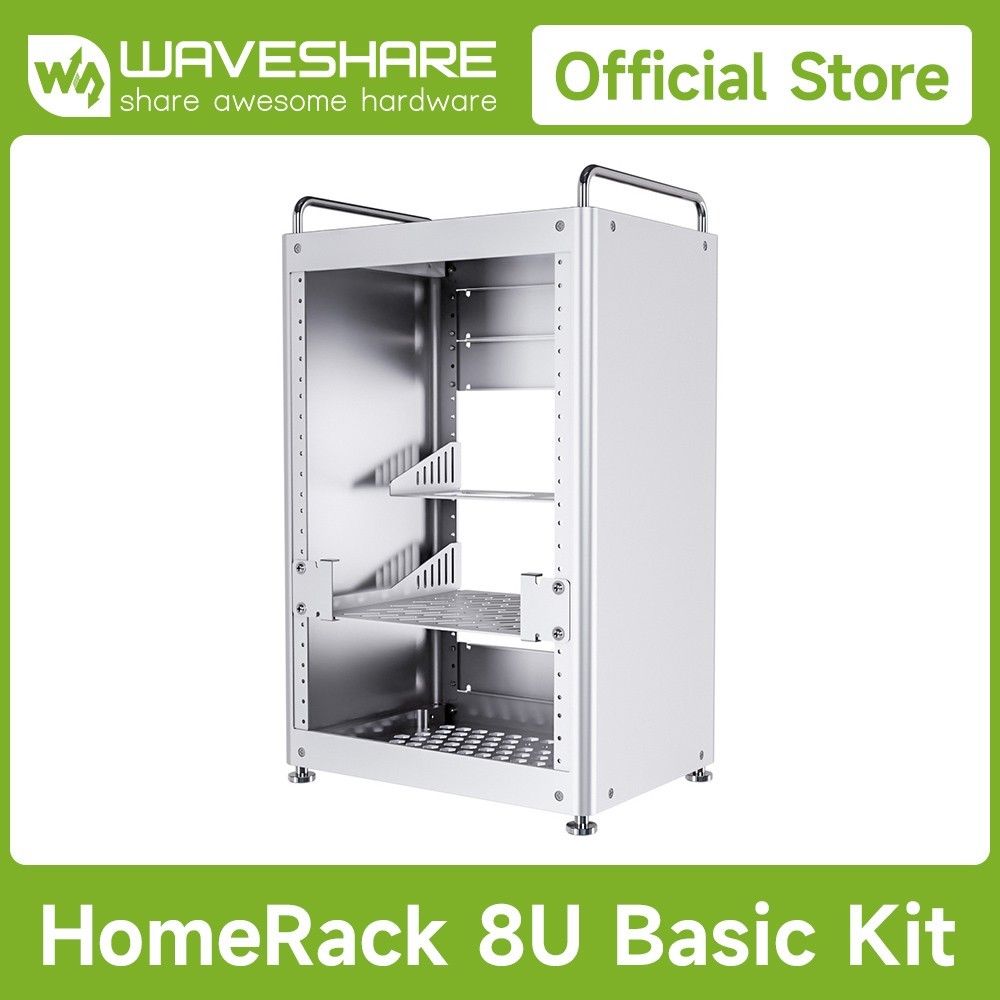

HomeRack 8U Server Cabinet Basic Kit, 10inch All Aluminum Alloy Rack, High CompatibilityHomeRack 8U Server Cabinet Basic Kit

10inch Desktop All Aluminum Alloy Rack

TheHomeRack 8U Basic Kitis a lightweight, compact cabinet designed for desktop server deployment, network equipment consolidation, and structured multi-device installations. Standard 10inch width and 8U height mounting space, enabling the creation of a compact infrastructure platform.

Full Aluminum Alloy Frame Structure

The Rack is made of high-strength aluminum alloy, ensuring structural stability and durability against deformation

(for reference only, please refer to the package content for detailed part list)

8U height mounting space

Supports 0.5U / 1U / 2U and other expansion modules

*for reference only, please refer to the package content for detailed part list.

Application Scenarios

Small Server Deployment

Centralized Network Device Management

Multi-SBC Cluster

Desktop Edge Computing Node

*for reference only, please refer to the package content for detailed part list.

Basic Kit Instructions
How to install

Step 1
Assemble parts ① ②
Screws: M4*8

Step 2
Assemble parts ③ ④ ⑤
Screws: M4*8

Step 3
Assemble Step 2 with Step 1
Screws: M4*12

Step 4
Assemble parts ⑥ ⑦ ⑧
Part ⑧ comes with an M8 thread

Step 5
Assemble Step 4 with Step 3
Screws: M4*12

Step 6
Assemble parts ⑨ ⑩ ⑪ ⑫
Screws: M4*6, head Ø10

Outline dimensions
Resources & ServicesPackage Content

Weight:4.87 kg

1. Small front panels x4
2. Frame side panel x2
3. Handle x2
4. Top cover x1
5. Connector 1 x2
6. Connector 2 x2
7. Bottom cover x1
8. Foot pad x4
9. 1U blank panel x3
10. Function board mounting plate x1
11. Large shelf x1
12. Large shelf support x2
13. Raspberry Pi Adapter Board x2
14. Hexagon screwdriver x1
15. M4 × 8mm screw x12
16. M4 × 12mm screw x8
17. M4 × 6mm screw x24
18. HomeRack SBC Shelf 1U screws pack x1
19. Cross-head screwdriver x1
