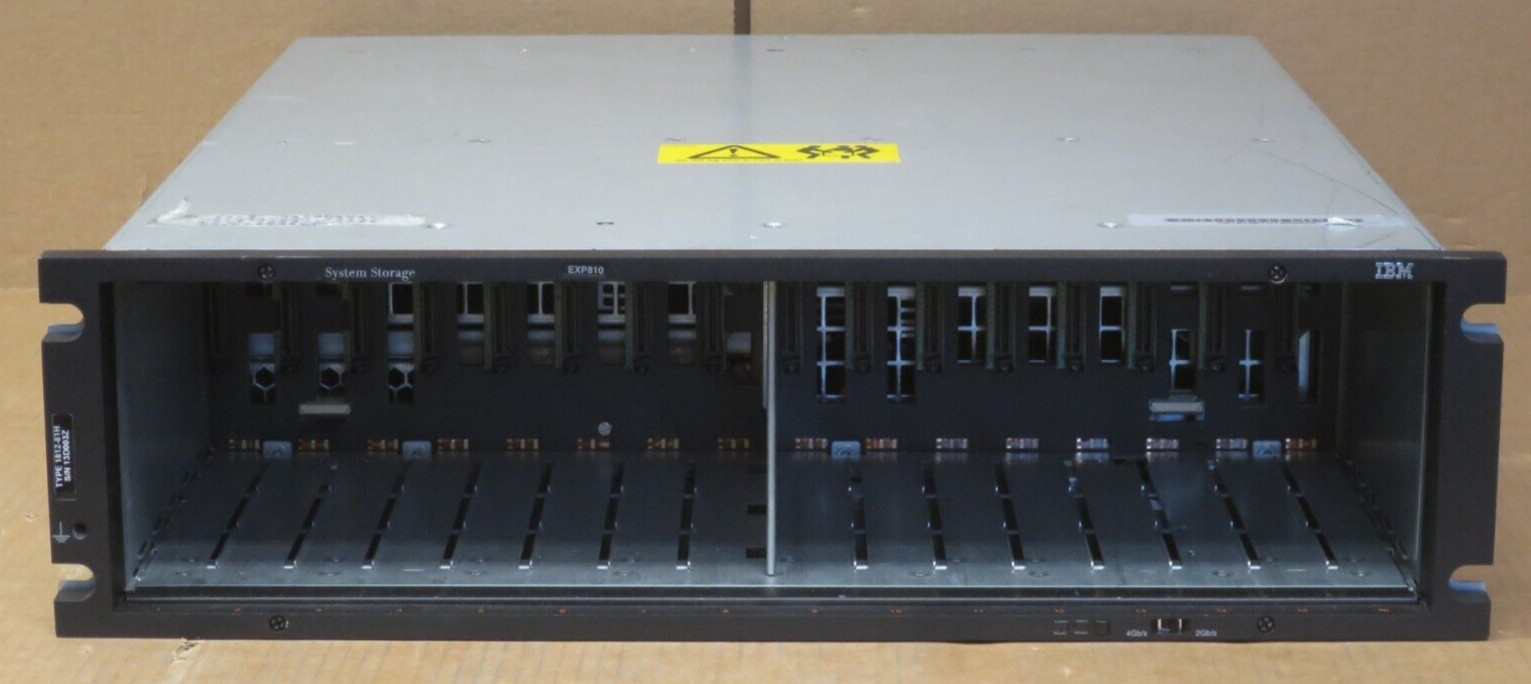

IBM TotalStorage FAST EXP810 DS4000 1812-81H 16 Bay Fibre Channel Storage Array

In verygood condition and in full working order

Included

2 x 81Y2437 Power supplies

2 x 41Y5151 ESM Controller

Table 1. TotalStorage DS4000 EXP810 bays
(std/max)Hot-swap
HDD EXP810 Model 811,2,3,51812-81HFibre Channel416/16Y12TB

Table 1. TotalStorage DS4000 EXP810 at-a-glance x D x H)Form
factorMax
cfg sizeDS4000 EXP810 Model 811,2,3,51812-81H482mm x 559mm x 132mm (18.97in x 23.52in x 5.21 in)Rack Drawer (3U)38.56kg (85lbs)2/2 - 450wNotes:

1. Attachment to a supported Storage Server is required. This expansion unit does not attach directly to the server.
2. DS4000 EXP810 accommodates up to four short-wave SFP modules. The unit ships with two short-wave SFP modules.
3. Also includes two 2.8m/9ft intra-rack power cords (IEC 320-C13 to IEC 320-C14). If U.S. wall-outlet power cords are required, then order quantity two of P/N 39Y7931.
4. Supports Enhanced Disk Drive Module (E-DDM) disks only. Insertion of unsupported disks will cause significant damage.
5. Comes with rack mounting rails and two rack Power Distribution Unit (PDU) power cords, and product documentation.

Back to top

Table 2. Additional Features1812-81HESMs (std/max)2/21Input Ports (std/max)2/2Output Ports (std/max)2/2Note:

1. Ships standard with two ESMs, each providing one input port and one output port.

Back to top

Figure 1. EXP810 Connectors VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£100 ex VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

LJM 292491

SL 88169 IB 87213
