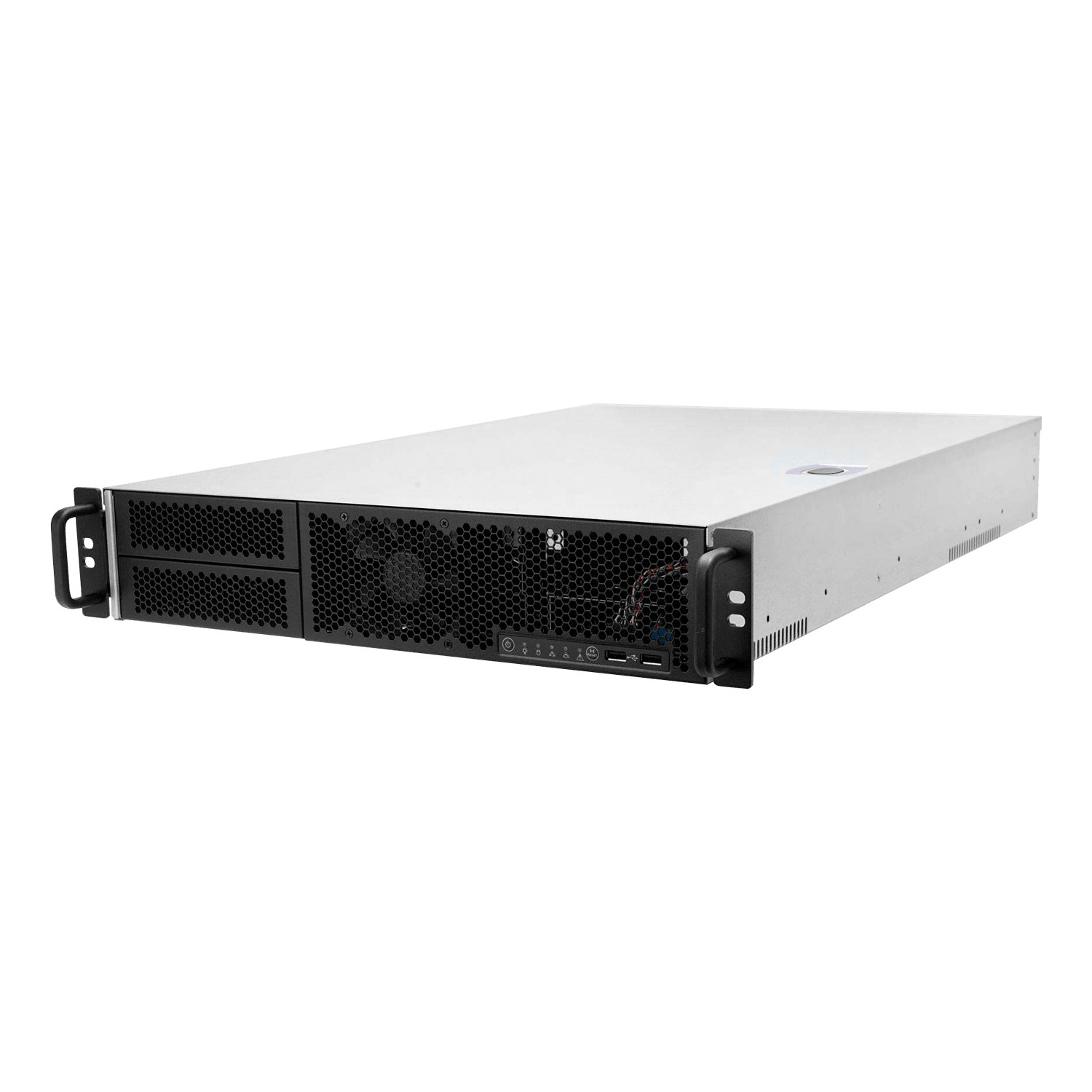

2U rackmount supports ATX / CEB / EEB motherboards
Supporting external 5.25" x 2 and internal 3.5" HDD x 6
Supports 80 x 25mm cooling fans x 3
Compatible with single PSU 500W or CRPS 550W/800W
Expandable storage option with InWin storage kit
Supporting 7 low-profile cards or optional full-height PCIe slots x 3 with rear PCIe card holder
Tool-less top cover for quick maintenanceSpecificationIndustry StandardCompatible with EIA-RS310D standard 19" cabinetsM/B Form FactorATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay• External: 5.25" x 2
• Internal: 3.5" x 6
Power SupplyIncluded:
•Dual 800w
Supports:
• Form factor: single or CRPS
• Watt: single 500W, CRPS 550W or 800W
IndicatorsPower status, HDD, LAN activity LEDs
Front Control PanelPower switch, system reset, USB 2.0 x 2
Chassis SecurityIntrusion switch (optional)Cooling FansSupports 80 x 25mm PWM middle fan x 3Expansion SlotLow profile PCIe slot x 7 or full-height PCIe slot x 3 (via riser card)
Material• Material: SGCC
• Thickness: 1.2mm
Rail KitSupports 28" tool-less & ball-bearing slide railsProduct Dimensions (DxWxH; Chassis Only)661 x 432.4 x 88mm
(26.02" x 17.02" x 3.46")
Package Dimensions (DxWxH)840 x 563 x 204mm
Weight (Chassis Only)• Net weight: 8.84kg
• Gross weight: 12kg
Cubic Feet3.41
Container InformationSingle packing with pallets:
• 20': 216pcs
• 40': 468pcs
• 40' HQ: 520pcs
