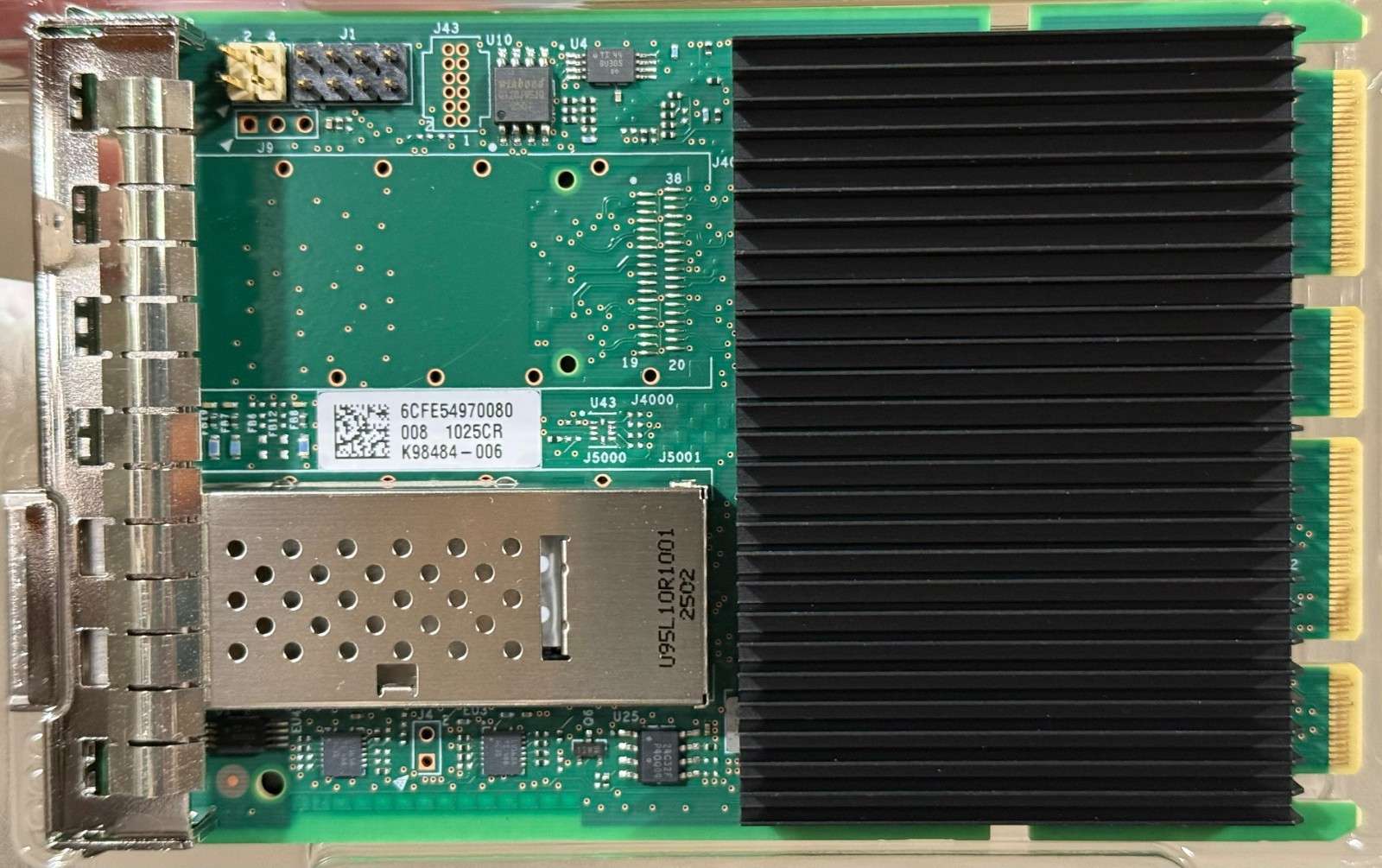

Intel E810CQDA1OCPV3L Ethernet Network Adapter
NEW BROWN BOX
DOES NOT COME WITH BRACKETS
***Shipping DOES NOT include - any taxes/VAT that you may have to pay directly to your government based on your countries import laws. That is a charge you would pay - please check with your government BEFORE committing to buy this item***
Key Features
• OCP NIC 3.0 Small Form Factor
• Application Device Queues (ADQ)
• PCI Express (PCIe) 4.0 x16
• Dynamic Device Personalization (DDP)
•Ethernet Port Configuration Tool (EPCT)
• Supports both RDMA iWARP and RoCEv2
Improve application efficiency and network performance with innovative and versatile capabilities that optimizeserver workloads such as Network Functions Virtualizations (NFV), storage, HPC-AI and hybrid cloud.
The OCP NIC 3.0 specification defines a standardized design for a new generation of network adapters. Simpleand straightforward form factors, clear manageability requirements, and improved serviceability help simplifydeployment for current and emerging capabilities.
Performance for Cloud ApplicationsDelivers the bandwidth and increased applicationthroughput required for demanding cloud workloadsincluding edge services, web servers, databaseapplications, caching servers, and storage targets• Application Device Queues (ADQ) improvesapplication response time predictability usingadvanced traffic-steering technology• Dynamic Device Personalization (DDP) enhancespacket classification capabilities, to deliver up to 3xthroughput improvement¹ for some cloud workloads• Supports both RDMA iWARP and RoCEv2for high-speed, low-latency connectivity tostorage targets
Optimizations for Communications WorkloadsProvides packet classification and sortingoptimizations for high-bandwidth network andcommunications workloads, including mobile core,5G RAN, and network appliances• Dynamic Device Personalization (DDP) supportsexisting and new communications-specific protocolsimproving packet-processing efficiency up to 3x forsome NFV workloads• IEEE 1588 Precision Time Protocol (PTP) v2 supportenables precise clock synchronization across the5G RAN deployments•Enhanced Data Plane Development Kit (DPDK)support increases packet-processing speeds
Versatile Port Configurations with EPCTE810-CQDA1 and -CQDA2 adapters for OCP 3.0 support a wide range of system configurations to meetcustomer needs and workload requirements. The many port and speed combinations available simplify validationand deployment.All 800 Series products include these technologies:
Greater Predictability at ScaleAs modern data centers scale, a key challenge isto provide scalable, predictable application-levelperformance. Application Device Queues (ADQ)technology improves performance scalability andpredictability by dedicating queues to key workloads,delivering predictable high performance throughdramatically reduced jitter.Increasing the predictability of application responsetimes by lowering jitter enables more computeservers to be assigned to a task and can allow moreusers to access the system, providing a betterend-user experience. Even applications that are notlarge scale can benefit from higher consistency,enabling them to meet service-level agreements(SLAs) more easily.ADQ enables application-specific data steering,signaling, and rate limiting using an optimizedapplication thread to device data path. This abilityto dedicate queues and shape network traffic notonly increases performance, it reduces latency andimproves throughput.
Increase Throughput and Lower LatencyRemote Direct Memory Access (RDMA) provideshigh throughput and low-latency performancefor modern high-speed Ethernet by eliminatingthree major sources of networking overhead: TCP/IP stack process, memory copies, and applicationcontext switches. Intel Ethernet 800 Series NetworkAdapters support all Ethernet-based storagetransport, including iWARP, RoCEv2, and NVMeover Fabric.RoCE (RDMA over Converged Ethernet): RoCEv2substitutes the InfiniBand physical layer and data linklayer with Ethernet, operates on top of UDP/IP, and isroutable over IP networks.iWARP, IETF standard protocols based: DeliversRDMA on top of the pervasive TCP/IP protocol.iWARP RDMA runs over standard network andtransport layers and works with all Ethernet networkinfrastructure. TCP provides flow control andcongestion management and does not require alossless Ethernet network. iWARP is a highly routableand scalable RDMA implementation.
Improve Packet Processing EfficiencyDynamic Device Personalization (DDP) customizablepacket filtering, along with enhanced DPDK, supportsadvanced packet forwarding and highly-efficientpacket processing for both Cloud and NFV workloads.The 800 Series firmware loads an enhanced DDPprofile with many workload-specific protocols atdriver initialization for greater flexibility. Whenmultiple 800 Series adapters are present in a system,the pipeline on each adapter can be programmedindependently with a different DDP profile.
Increase Timing AccuracyIntel Ethernet 800 Series supports both IEEE1588 PTP v1 and v2 with two-step option. Theproducts provide increased accuracy at single-digitnanosecond level, and can report the receptiontime for every packet. This level of timing accuracycan help ensure tight synchronization acrossnetwork deployments ranging from 5G RANto financial services, industrial automation, andenergy monitoring.
Protect, Detect, and RecoverZero Trust is a security design strategy centered onthe belief that organizations, by default, should notautomatically trust any request for system access.This includes requests coming from outside, aswell as inside its perimeters. Zero Trust demandsthat every access request be verified beforegranting access.The 800 Series implements a design philosophy ofplatform resiliency with 3 attributes compliant withthe NIST Cybersecurity Framework, including NIST800-193 Platform Firmware Resiliency Guidelines:Protect, Detect and Recover. By design, the HardwareRoot of Trust in the 800 Series protects the firmwareand critical device settings with authentication forevery access. Signed firmware updates and theHardware Root of Trust protects and verifies criticaldevice settings with built-in corruption detection andautomated device recovery. Together these featuresensure the device safely returns to its originallyprogrammed state.Intel® Ethernet 800 Series Network Adapters aredesigned with Intel® Ethernet Controller E810 andinclude these features²: Host Interface • ACLs Manageability • Compliance with PCIe 4.0 - 8K programmable TCAM entries • SMBus operating at up to 1Mb/s • Concurrency for 256 non-posted requests - Tiling capability to n*40b width • DMTF-compliant NC-SI 1.1 Interface at Software Interface • Classification Filters 100Mb/s • Base mode VF compatibility with Intel® - Hash-based statistical distribution • MCTP over PCIe and SMBus Adaptive Virtual Functions Specification - Intel® Ethernet Flow Director (Intel® • Enterprise-level management schemes via • Tx/Rx Queues Ethernet FD) flow-based classification local BMC - 2048 Tx queues and 2048 Rx queues - Flow-based identification of iWARP and • SNMP and RMON statistic counters - Dynamic allocation of queues to RoCE flows • Watchdog timer functions and VSIs - Programmable rules • PLDM over MCTP; PLDM Monitoring; • Interrupts • Modifier PLDM firmware update; PLDM for RDE - 2048 interrupts vectors, allocated in - Insert (Tx), remove (Rx), and modify of • Firmware Management Protocol support a flexible manner to queues and packet VLANs Power Management other causes - L3 and L4 checksums and CRC • Supports PCI power management states - Multiple interrupt moderation schemes Virtualization D0, D3hot, D3cold - 20M interrupts/sec • Host virtualization via VMDQ and SR-IOV Time Synchronization • Control Queues (a.k.a. Admin Queues) • Up to 256 SR-IOV Virtual Functions • Time stamp with each Rx packet - Mailbox Queues for PF-VF and • Stateless offloads for tunneled packets • Selective time stamps for Tx packets driver-driver (network virtualization support) • IEEE 1588 PTP v1 and v2 support - Admin Queues for Software-Firmware • Malicious VF protection • Time synchronization signaling with other control flows • Virtual machine load balancing (VMLB) local platform ingredients - Sideband Queues for Software to access • Advanced packet filtering Pre-Boot IPs inside the E810 • VLAN support with VLAN tag insertion, • Signed UEFI option ROM compatible with • 256 Tx Doorbell (DB) Queues stripping and packet filtering for up to 4096 HTTPS boot • 512 Tx Completion Queues VLAN tags Security • Quanta Descriptor (QD) Queue per Tx • VxLAN, GENEVE, NVGRE, MPLS, VxLANGPE with Network Service Headers (NSH) • Hardware-based Root of Trust queue. Quanta information is also • Intel® Ethernet Adaptive Virtual • Authentication on NVM Read and Power On embedded in the Tx doorbell Function drivers • Built-in detection of firmware/critical setting • Programmable Rx descriptor fields RDMA corruption with automated device recovery Packet Processing • iWARP and RoCEv2 Ethernet Port Configuration Tool (EPCT) • Enhanced Data Plane Development Kit • 256K Queue Pairs (QPs) • Available for all 100Gb Intel® Ethernet 800 (DPDK) • Send Queue Push Mode Series Network Adapters • General Note: RDMA is not supported when the E810 • Offers system configuration options for - Stages of parsing, switching, ACLs, is configured for >4-port operation. high-density, port-constrained network classification, packet modification QoS environments - Programmable packet processing • WFQ Transmit scheduler with nine - Up to six configurations to choose from pipeline programmable layers - Validate once, reconfigure as often - Profile based • Pipeline sharing and starvation avoidance as needed - Programmable actions • QoS via 802.1p PCP or Differentiated - Propagation of priorities between stages Services Code Point (DSCP) value • Parser • Packet shaping - Parses up to 504B from packet header - Parse Graph based - Session-based parsing - Programmable parse engine • Binary Classifier (VEB Switch) - 768 switch ports (VSIs) - Programmable forwarding rules - Storm Control Intel® Ethernet Network Adapter E810-CQDA1 for OCP 3.0 Essentials Product Collection 800 Series Network Adapters (up to 200GbE) Marketing Status Launched Launch Date Q1'21 Vertical Segment Server Cabling Type QSFP28 port - DAC, Optics, AOC's Bracket Height OCP 3.0 Recommended Customer Price $463.00 Networking Specifications Port Configuration Single Data Rate Per Port 100/50/25/10GbE Intel® Virtualization Technology for Connectivity (VT-c) Yes Speed & Slot Width 16 GT/s x 16 lanes Controller Intel Ethernet Controller E810 Package Specifications System Interface Type PCIe 4.0 (16 GT/s) Intel® Virtualization Technology for Connectivity On-chip QoS and Traffic Management Yes Flexible Port Partitioning Yes Virtual Machine Device Queues (VMDq) Yes PCI-SIG* SR-IOV Capable Yes Advanced Technologies iWARP/RDMA Yes RoCEv2/RDMA Yes Intel® Data Direct I/O Technology Yes Intelligent Offloads Yes Storage Over Ethernet iSCSI, NFS Adapter Features Data Rate Supported 100/50/25/10GbE Per Port Bus Type/Bus Width PCIe 4.0 x16 Hardware Certifications BSMI, CE, CMIM, FCC, ICES, KCC, RCM, UKCA, cURus, and VCCI BMSI RoHS and RoHS-compliant Product is compliant with Taiwan Bureau of Standards, Metrology and Inspection (BMSI), and EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU) Controller Intel® Ethernet Controller E810-CAM1 (Single Port), Intel® Ethernet Controller E810-CAM2 (Dual Port) Dimension 115 mm x 76 mm Form Factor OCP NIC 3.0 Small Form Factor Manageability for OCP NIC 3.0 RBT and RBT + MCTP Product Order Code Configuration Product Code Single Port E810CQDA1OCPV3 Dual Port E810CQDA2OCPV3
Supported Physical Layer Interfaces 100Gbps 50Gbps 25Gbps 10Gbps DACs IEEE 100GBASE-CR2, 100GBASE-CR4 IEEE 50GBASE-CR, 25G/50G Consortium 50GBASE-CR2 25GBASE-CR (CA-N, CA-S, CA-L) SFP+ 10GbE DAC Optics and AOCs CAUI-4, 100GAUI-2, 100GAUI-4, 100Gb-SR/SR4/LR/LR4 IEEE 50GAUI-1, IEEE 50GAUI-2, IEEE LAUI-2 25GBASE-SR/LR 10GBASE-SR/LR
