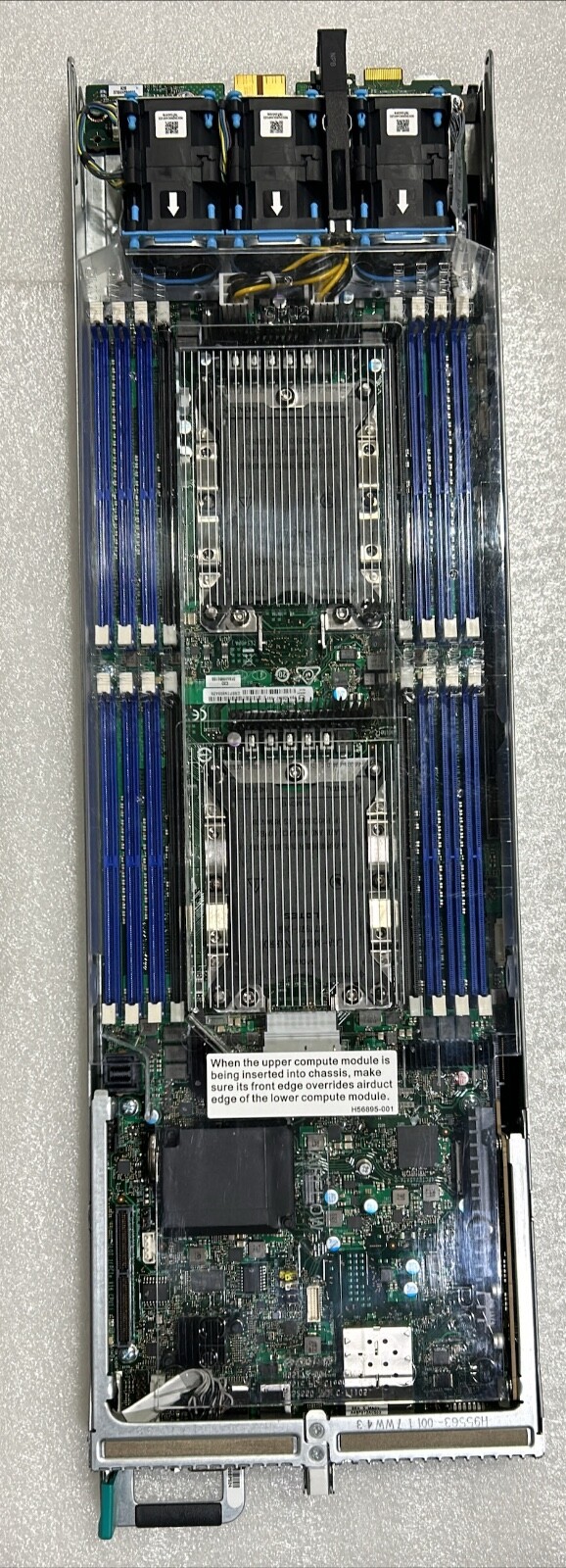

Intel HNS2600BPS24 Compute Module 2U Rack Socket P
OPEN/DAMAGED BOX_PRODUCT NEW AND UNUSED
***Shipping DOES NOT include - any taxes/VAT that you may have to pay directly to your government based on your countries import laws. That is a charge you would pay - please check with your government BEFORE committing to buy this item***
ARK | Compare Intel® Products
12/04/2023 01:45:22 PM
Intel® Compute Module HNS2600BPS24 ()
Essentials
Product Collection
Intel® Server System S2600BPR Family
Code Name
Products formerly Buchanan Pass
Marketing Status
Discontinued
Launch Date
Q3'17
Expected Discontinuance
Q3'19
EOL Announce
Monday |April 22 |2019
Last Order
Thursday |August 22 |2019
Supported Operating Systems
Windows Server 2016* |Windows Server 2012 R2* |Red Hat Enterprise Linux 7.3* |SUSE Linux Enterprise Server 12 SP2* |CentOS 7.3*
Compatible Product Series
Intel® Xeon® Scalable Processors
Board Form Factor
Custom 6.8" x 19.1"
Chassis Form Factor
2U Rack
Socket
Socket P
Integrated Systems Available
Yes
Integrated BMC with IPMI
IPMI 2.0 & Redfish
Rack-Friendly Board
Yes
TDP
165 W
Included Items
(1) 1U node tray(1) Intel® Server Board S2600BPS(1) Power Docking Board FHWBPNPB24 |(3) 40x56mm dual rotor managed fans FXX4056DRFAN2(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS(1) Air duct(1) External VGA port bracket (1) Slot 2 riser card w/80mm M.2 SSD slot.Required Items – Sold Separately: One (1) bridge board option -AHWBPBGB24 |AHWBPBGB24R OR AHWBPBGB24P; One or two Intel® Xeon® processor Scalable family | Up to Sixteen (16) DDR4 RDIMM/LRDIMM
Board Chipset
Intel® C622 Chipset
Target Market
High Performance Computing
Supplemental Information
Embedded Options Available
No
Description
A hot-pluggable high-density compute module integrated with the Intel® Server Board S2600BPS for large memory capability and flexible configuration options for the Intel® Server Chassis H2224XXLR3.
Additional Information
View now
Memory Specifications
Max Memory Size (dependent on memory type)
1.46 TB
Memory Types
DDR4 ECC RDIMM/LRDIMM 2133/2400/2666
Max # of Memory Channels
12
# of Memory Slots
16
ECC Memory Supported‡
Yes
GPU Specifications
Integrated Graphics ‡
No
Graphics Output
VGA
Expansion Options
PCI Express Revision
3.0
Max # of PCI Express Lanes
80
Riser Slot 1: Total # of Lanes
16
Riser Slot 2: Total # of Lanes
24
Riser Slot 3: Total # of Lanes
24
Riser Slot 4: Total # of Lanes
16
I/O Specifications
# of USB Ports
2
USB Revision
3.0
Total # of SATA Ports
4
RAID Configuration
RAID Levels 0/1/10/5/50 (LSI)
# of Serial Ports
1
# of LAN Ports
2
Integrated LAN
2x 10GbE SFP+; 1x 1GbE (Dedicated Management)
Package Specifications
Max CPU Configuration
2
Advanced Technologies
Intel® Optane™ Memory Supported ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® Remote Management Module Support
Yes
Intel® Node Manager
Yes
TPM Version
2.0
Intel® Transparent Supply Chain
Includes Statement of Conformance and Platform Certificate
No
Security & Reliability
Intel® AES New Instructions
Yes
Intel® Trusted Execution Technology ‡
