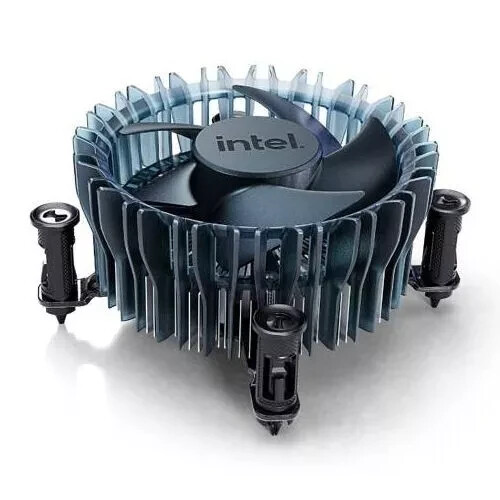

Intel Laminar RS1 LGA1700 Cooler M23905-001 Aluminum Heatsink 65W TDP
Price: US $13.95
Intel Laminar RS1 Cooler M23905-001 LGA1700 Aluminum Heatsink Fan

  • Overall Height: Up to 47mm (top of fan to bottom of heatsink)
  • Overall Size: Up to 100mm x 100mm
  • Mass: Up to 260g
  • Sound Power Level: 4.6 BA (max RPM, 40C inlet, 65W)
  • Sound Pressure Level: 36 dBA (max RPM, 40C inlet, 65W)
  • TDP Support: Up to 65W (Intel LGA1700)
  • Fan Type: PWM controlled variable speed fan
  • Connector Type: 4-Pin
  • Operating Voltage: 13.2V max, 12.0V rated, 10.8V min
  • Current (peak): Up to 400mA
  • Max RPM (+/- 5%): Up to 3150 RPM
  • Min RPM (+/- 20%): 600 RPM
  • Operating Temp : 0 to 70C
  • Operating Humidity: 85% relative humidity @ 55C
  • Fan Protection: Locked-rotor/polarity protected
  • Sense Frequency: 2 pulses/Rev, 12V pull-up with 10Kohm
  • PWM Frequency: 25KHz +/- 5KHz
  • PWM Pull-up Voltage: 5.25V max
  • PWM Duty Cycle Range: 0–100%
