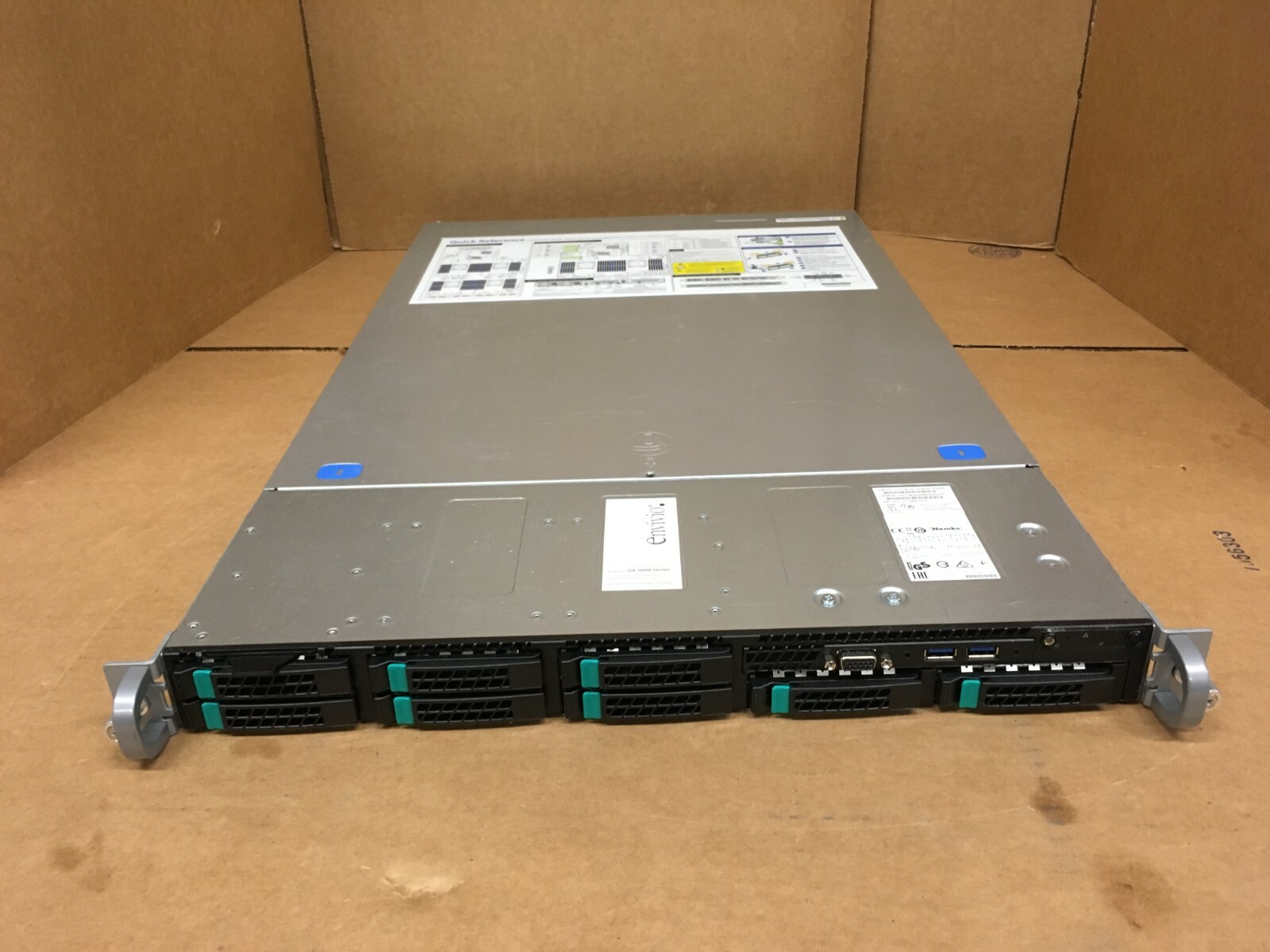

Sellercore: HTML PreviewIntel Intel® Server System R1208WT2GSRServer System Barebone PBA G15234-350 Intel S6g Quad Port 1gbPBA G15234-350 Intel S6g Quad Port 1gbIN GOOD CONDITION, CLEAN, FULLY TESTED, INCLUDES POWER CORD, 2X 750W POWER SUPPLY, USB 3.0 AND 1 PBA INTEL QUAD 1GB PORT NIC CARD
Intel® Server System R1208WT2GSRWith PBA G15234-350 Intel S6g Quad Port 1gb 2X 750W POWER SUPPLYSYSTEM SPECS
***NO CPU***Essentials

• Product CollectionIntel® Server System R1000WT Family

• Code NameProducts formerly Wildcat Pass

• Launch DateQ1'16

• StatusDiscontinued

• Expected DiscontinuanceQ3'20

• EOL AnnounceFriday, July 19, 2019

• Last OrderSunday, July 5, 2020

• Last Receipt AttributesMonday, October 5, 2020

• Limited 3-year WarrantyYes

• Extended Warranty Available for Purchase (Select Countries)Yes

• Additional Extended Warranty DetailsDual Processor System Extended Warranty

• Chassis Form Factor1U, Spread Core Rack

• Chassis Dimensions16.93" x 27.95" x 1.72"

• Board Form FactorCustom 16.7" x 17"

• Rack Rails IncludedNo

• Compatible Product SeriesIntel® Xeon® Processor E5-2600 v4 Family

• SocketSocket R3

• TDP145 W

• Heat Sink2

• Heat Sink IncludedYes

• System BoardIntel® Server Board S2600WT2R

• Board ChipsetIntel® C612 Chipset

• Target MarketCloud/Datacenter

• Rack-Friendly BoardYes

• Power Supply750 W

• Power Supply TypeAC

• # of Power Supply Included1

• Redundant FansYes

• Redundant Power SupportedSupported, requires additional power supply

• BackplanesIncluded

• Included Items(1) Intel® Server Board S2600WT2R w/ Dual 1GbE; (1) standard control panel board (FXXFPANEL); (1) front I/O panel assembly (front 1xVGA and 2x USB); (8) 2.5 inch hot-swap drive carriers (FXX25HSCAR); (1) 12Gb SAS backplane (F1U8X25S3HSBP); (1) 730mm SAS/SATA Multiport data cable with straight SFF8643 to right angle SFF8643 connectors (AXXCBL1UHRHD); (1) 800mm SAS/SATA Multiport data cable with straight SFF8643 to right angle SFF8643 connectors (AXXCBL1UHRHD); (2) processor heatsink (FXXCA84X106HS); (2) risers with 1x16 PCIe* 3.0 FHHL slot on each (F1UL16RISER); (1) 750W AC power supply (FXX750PCRPS); (1) Air duct; (6) Dual rotor system fans (FR1UFAN10PW)


Supplemental Information

• DescriptionIntegrated 1U system featuring an Intel® Server Board S2600WT2R supporting eight 2.5 inch hot-swap drives, dual 1-GbE LAN, 24 DIMMs, one 750W redundant-capable power supply, enterprise class I/O, with built in discrete management network interface.


Memory & Storage

• Memory TypesDDR4-1600/1866/2133/2400

• Max # of DIMMs24

• Max Memory Size (dependent on memory type)1.5 TB

• # of Front Drives Supported8

• Front Drive Form FactorHot-swap 2.5"

• Rear Drive Form FactorN/A


Processor Graphics

• Integrated Graphics‡Yes


Expansion Options

• PCIe x16 Gen 32


I/O Specifications

• # of USB Ports8

• Total # of SATA Ports10

• RAID ConfigurationSW RAID 0, 1, 10, optional 5

• # of Serial Ports2

• Integrated LAN2x 1GbE

• # of LAN Ports2

• Optical Drive SupportYes

• Integrated SAS Ports0

• Embedded USB (eUSB) Solid State Drive OptionYes

• Integrated InfiniBand*No


Package Specifications

• Max CPU Configuration2


Advanced Technologies

• Intel® Remote Management Module SupportYes

• Integrated BMC with IPMIIPMI 2.0 with OEM extensions

• Intel® Node ManagerYes

• Intel® On-Demand Redundant PowerYes

• Intel® Advanced Management TechnologyYes

• Intel® Server Customization TechnologyYes

• Intel® Build Assurance TechnologyYes

• Intel® Efficient Power TechnologyYes

• Intel® Quiet Thermal TechnologyYes

• Intel® Virtualization Technology for Directed I/O (VT-d)‡Yes

• Intel® Matrix Storage TechnologyNo

• Intel® Rapid Storage TechnologyNo

• Intel® Rapid Storage Technology enterpriseYes

• Intel® Quiet System TechnologyYes

• Intel® Fast Memory AccessYes

• Intel® Flex Memory AccessYes

• Intel® I/O Acceleration TechnologyYes

• TPM Version1.2/2.0

*L-11*Shipping Information

We will ship itprofessionally with good method and extra material.

Condition: seller refurbished, tested, 30 days warranty.LOCAL PICKUP IS ALWAYS AVAILABLE Hackensack, New Jeresy off Route 80 Exit 66

Terms of SaleReturn policyAfter receiving the item, contact seller withinRefund will be given asReturn shipping30 daysMoney backBuyer pays for return shippingRefer to Return policyfor more details. You are covered by the Money Back Guarantee
if you receive an item that is not as described in the listing.Payment detailsPayment method
