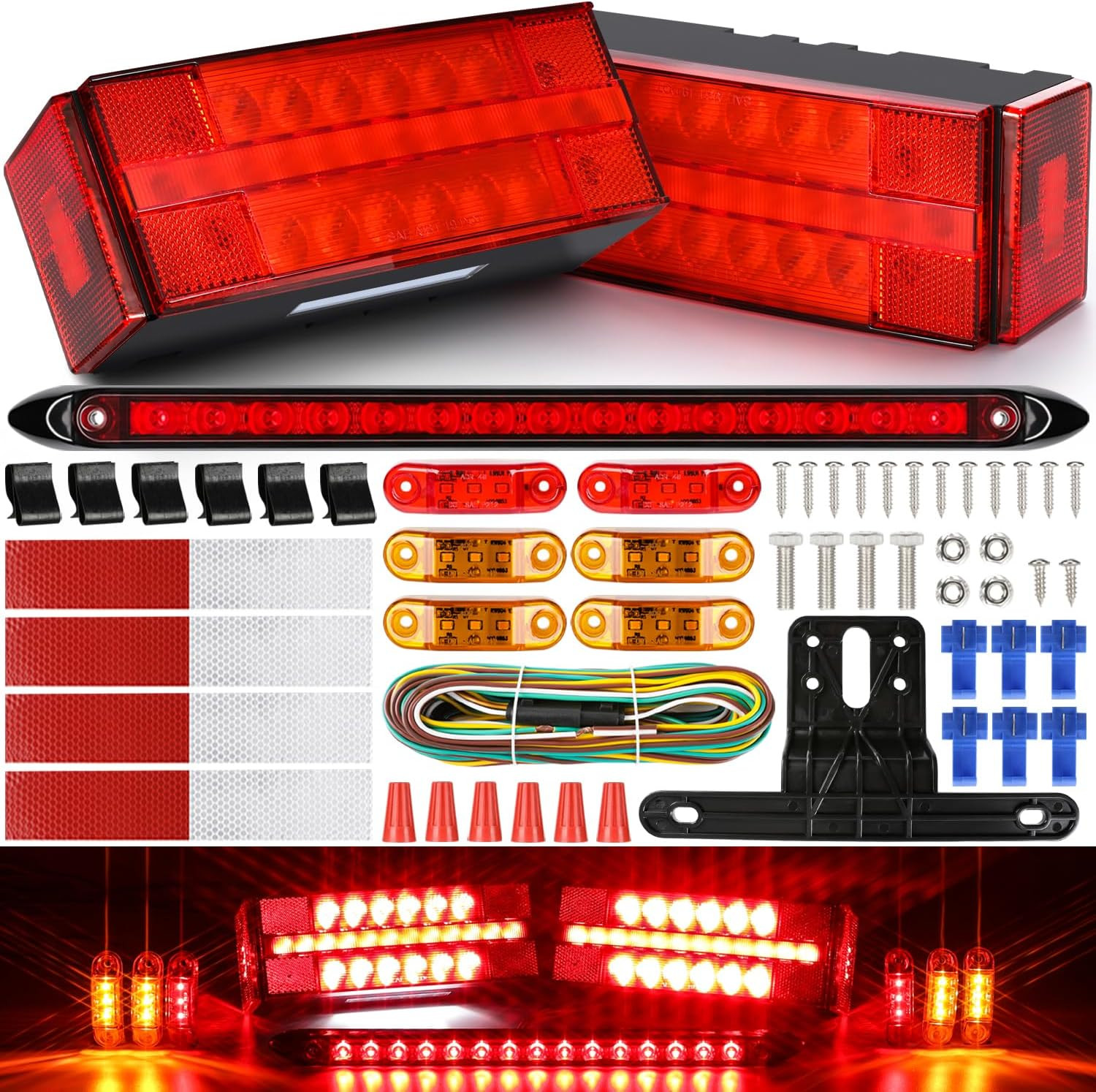

LED Submersible Rectangular Trailer Tail Light Kit, Super Bright Brake Stop Turn Reverse Side Marker Tail License Lights Sealed for Utility Trailer Boat Truck Marine over 80 InchDescription Specific Uses For Product Brake Lights Light Source LED Compatible with Vehicle Type Boat, Trailer, Snowmobile, Truck Additional Features Submersible Voltage 12 volts Wattage 24 watts Auto Part Position Rear Automotive Fit Type Universal Fit Lens Material Plastic Color Red Lens Color Red, Amber Model Year 2024 Manufacturer Part Number 8012R-904A4R2-821R Set Name Complete LED Trailer Lighting Kit (8 Piece) Model Number 8012R-904A4R2-821R Light Source Type LED Vehicle Service Type Boat, Trailer, Snowmobile, Truck Year 2024 Special Feature Submersible

Product description

This Sturdy universal mount combination tail light fits great with most RV's, campers, trailers and boat.

Feature:

-Sturdy design for years of use.

- Unique halo glow pattern when lit

- 8-function: stop, turn, tail, rear clearance, rear reflex, side marker, side reflex and and third 3rd brake light bar

- The light is sealed, IP67 waterproof

-Corrosion proof plastic housing, Compliant with DOT standards

WIDELY APPLICATION

Functions as running light, stop light, brake light, turn signal light, reverse light, flash light, rear reflex reflector, side marker light, side reflex reflector, license plate illuminator, clearance Light, identification light bar.

Widely used for 80" Inch width trucks, trailers, tractors, semi-trailer, horse trailer, travel trailer, dump Truck, special vehicle, etc.

SPECIFICATIONS

Voltage: DC 12V

Waterproof Rate: IP67

Lights Color: Red / White / Amber

Oval side fender marker lights Dimension: 2.55*0.65*0.72 Inch

Brake light bar Dimension: 13.7*0.6*0.85 Inch

PACKAGE INCLUDES

• 2x Rectangle running/stop/tail/turn LED tail lights
• 6Pcs Mini Oval side fender marker lights (2Red+4Amber)
• 1Pc Trailer 3rd brake identification tail light bar
• license plate bracket and Mounting Hardware
• 25ft wire Harness( 21.65ft length wire harness and 3.93ft wire harness )
• 4pcs reflective sticker

How to wiring?

Left Side:

White Wire: Ground(Negative); White Wire + Yellow Wire: High Brightness, used as Brake Light & Turn Light; White Wire + Brown Wire: Low Brightness, used as Running Light/Left License Plate Lamp.

Right Side:

White Wire: Ground(Negative); White Wire + Green Wire: High Brightness, used as Brake Light & Turn Light; White Wire + Brown Wire: Low Brightness, used as Running Light.

Oval side fender marker lights:

Black Wire: Ground(Negative); Red Wire: Positive.

Trailer 3rd brake identification tail light bar:

White Wire: Ground(Negative); White Wire + Red Wire: High Brightness, used as Stop & Turn Light; White Wire + Brown Wire: Low Brightness, used as Running Light

Super Bright

Left tail light: 33 Diodes ( 12 Red diodes for halo light+12 Red diodes for front light+3 Red diodes for side light+6 White diodes for license Plate illumination )

Right tail light: 27 Diodes ( 12 Red diodes for halo light+12 Red diodes for front light+3 Red diodes for side light )

Sturdy Shell Housing

The lamp shade of utility trailer light kit with corrosion resistant ABS material, protect the whole LED light bar effectively. Build a red reflection into the red portion of the lens

IP67 Waterproof

The circuit board of tail light is seal. So the water will not damage the diodes or circuit board. excellent tightness makes it be definitely waterproof and submersible.

• Trailer Light Kit : Led boat trailer light kits has everything you need, includes 2Pc Rectangular stop turn signals LED tail lights, 6Pcs mini oval side fender marker lights (2Red+4 Amber), 1Pc 3rd brake identification tail light bar, 25ft wire Harness, license plate bracket, 4pcs complimentary reflective sticker.
• Boat Trailer Tail Lights kit have 8 functions : stop light/turn signal light/tail light/rear reflector/side reflector /side marker light/ license plate light and third 3rd brake light bar. Compliant with DOT standards.
• IP67 Waterproof and Submersible: There is no screw on the lamp shade, the LED trailer lights are completely sealed. This is to guarantee that water will not damage the diodes or circuit board. Excellent tightness makes it be definitely waterproof and submersible.
• 25ft 18 Gauge copper wiring harness have more durable than the traditional copper coated aluminum wires and split Y-style color coded harness. Fully operable in inclement weather, these trailer lights are tough and durable for the long term.
• Easy to install: Please make sure wires connect correctly and no electronic short before marine/underwater. Package include the wiring diagram. Widely applicable to 80 Inch width tractor, such as truck, trailer, boat, bus, lorry, van, caravan, snowmobile, etc.
