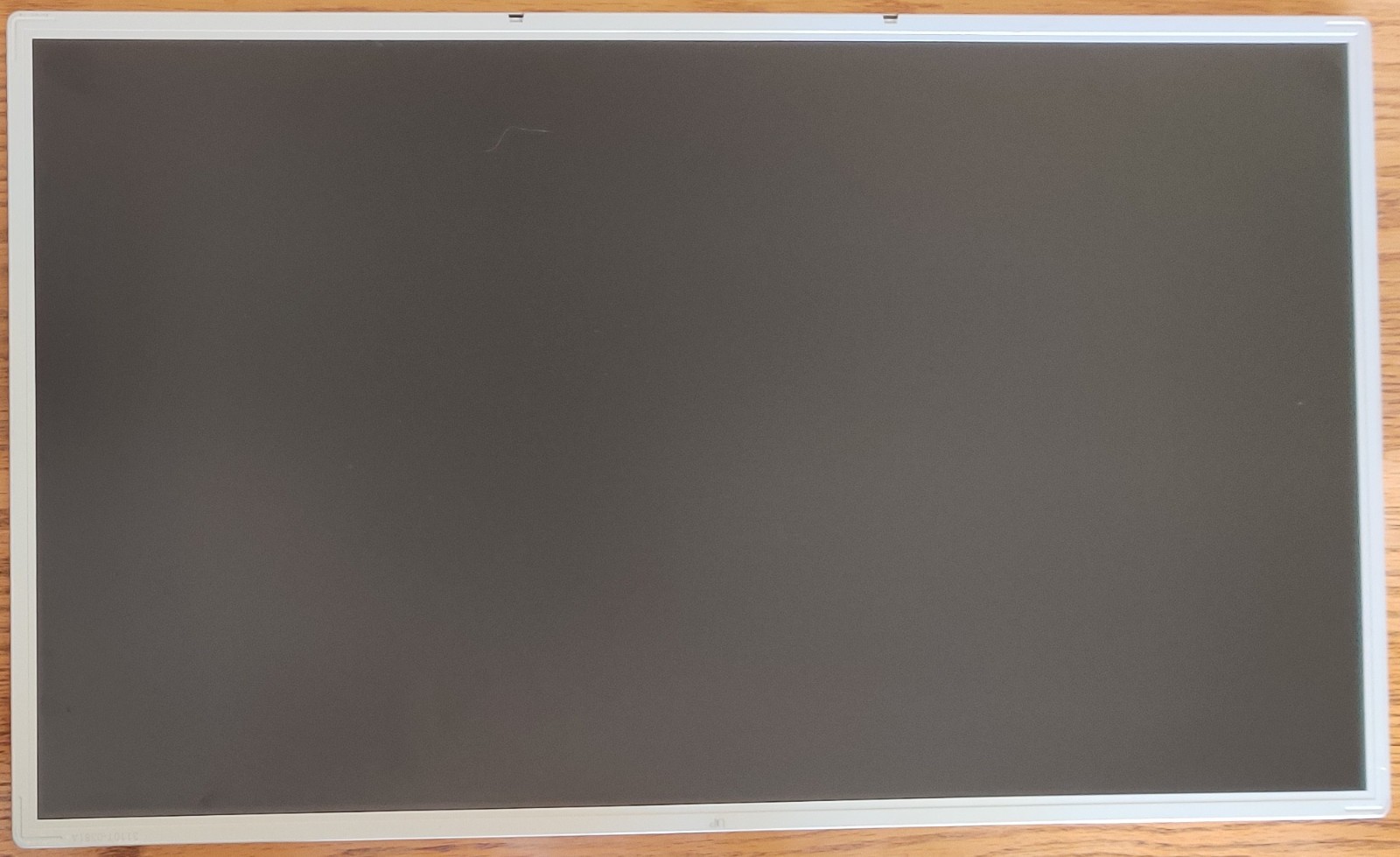

LG Display [LM230WF1-TLA6] 23" LCD Screen Panel 1920x1080 FHD 30-Pin LVDS CCFLShipped via USPS Ground Advantage

High-resolution LG Display LCD panel designed for compatible desktop monitors and display repair applications. Features a 23-inch widescreen display, Full HD 1920 x 1080 resolution, matte antiglare finish, and a 30-pin LVDS interface.

Ideal for replacing a damaged or malfunctioning LCD panel in compatible equipment.

Product Specifications:

• Brand: LG Display

• Model: LM230WF1-TLA6 / LM230WF1 (TL)(A6)

• Screen Size: 23.0 Inches

• Resolution: 1920 x 1080 (Full HD)

• Aspect Ratio: 16:9

• Panel Technology: a-Si TFT-LCD

• Display Mode: TN, Normally White, Transmissive

• Brightness: 300 cd/m² (Typical)

• Contrast Ratio: 1000:1 (Typical)

• Display Colors: 16.7 Million

• Refresh Rate: 60Hz

• Response Time: 1.3/3.7ms (Tr/Td)

• Pixel Configuration: RGB Vertical Stripe

• Surface: Matte Antiglare, Hard Coating (3H)

• Signal Interface: LVDS (2 Channel, 8-bit)

• Connector: 30-Pin

• Input Voltage: 5.0V (Typical)

• Backlight Type: CCFL (4 Lamps)

• Rated Lamp Life: 50,000 Hours

• Power Consumption: 30W (Typical)

Physical Dimensions:

• Overall Size: 533.2 x 312 x 17 mm

• Active Display Area: 509.184 x 286.416 mm

• Approximate Panel Weight: 2.60 kg

• Mounting: Side Mounting Holes

Compatibility Notice:

This listing is for the LCD display panel itself, NOT a complete desktop monitor.

The panel requires compatible display control electronics, an appropriate LVDS connection, and a separate CCFL backlight driver/inverter.

Please verify your existing panel's exact model number, connector type, voltage, backlight configuration, and physical dimensions before replacement LCD panel. Please review all listing photographs for the exact physical and cosmetic condition of the item, including the display surface, mounting points, and connectors.

Included:

• 1x LG Display LM230WF1-TLA6 23" LCD Panel

No monitor housing, stand, controller board, power adapter, or additional accessories are included unless specifically pictured.
