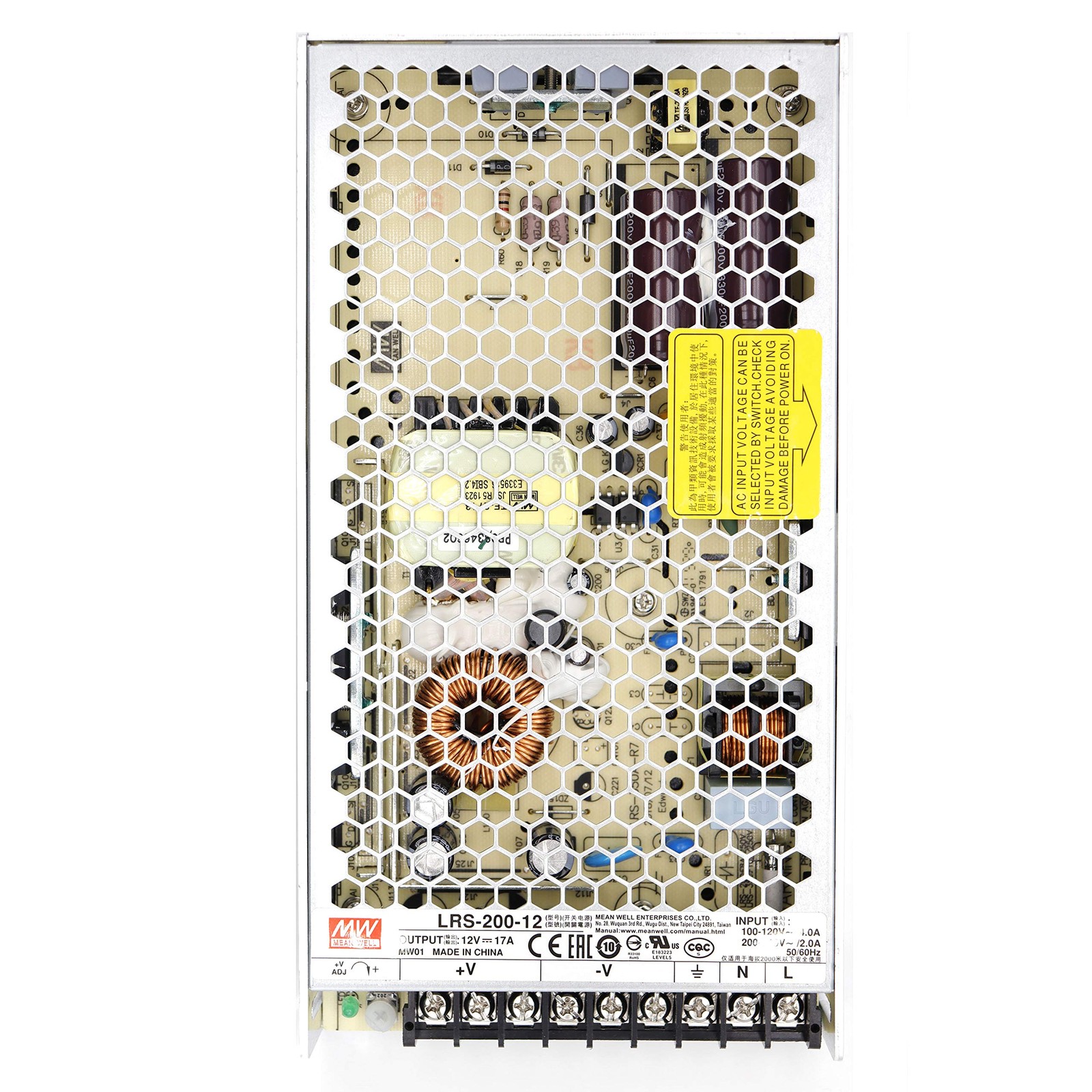

LRS-200-12 Single Output Switching Mode Power Supply 204W 12VDC 17A Output (LRS Series 200W 12V)🛍 Product Details

Ensure optimal performance of your electronic device with the use of this LRS-200-12 AC to DC power supply from .
It has a voltage of 12 V and maximum output power of 204 W.
This part's single output can handle a current up to 17 A.
This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Package Height: 30
Package Width: 115
Package Length: 215
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 12
Output Current (A): 17
Output Power (W): 204
Minimum AC Input Voltage (V): 90
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 240
Maximum DC Input Voltage (V): 370
Minimum Isolation Voltage: 3000VAC
Line Regulation: 0.5%
Load Regulation: 1%
Maximum Input Current (A): 4(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1.5
Efficiency (%): 87.5(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 660
Pin Count: 9

🌟 Key Features

• AC Input Range Selectable By Switch. 90-132VAC Switch on 115VAC / 180-264VAC Switch on 230VAC
• Rated Output: 12V, 17A, 204W LRS-200-12
• Working Temperature: -30~+70°C Withstand 5G vibration test
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Complete safety certificates: IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC004
