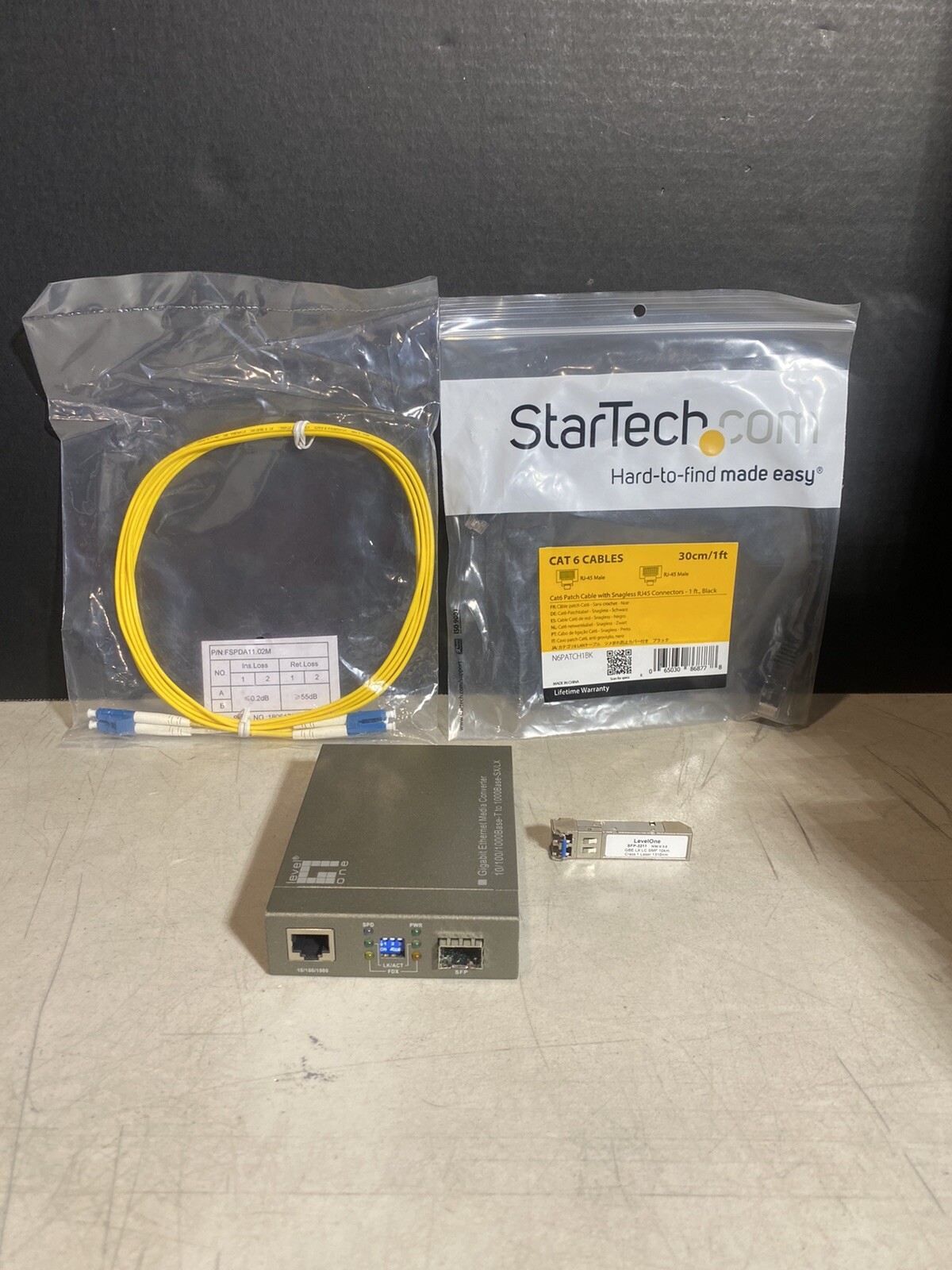

This listing consists of a lot of the following items:
- (1) Level One GVT-4000 media converter in excellent pre-owned working conditions.
- (1) SFP-3211 GBE LX LC SMF 10KM pre-owned
- (1) NEW LC-LC Singlemode Fiber patch cord.
- (1) NEW CAT6 Copper Patch Cord.
NOTES: Power cord not included. 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE802.3x Flow Control and Back pressure
Wavelength
850nm (Multi-mode)
1310nm (Single-mode)
1550nm (single-mode)
Fiber Cable
Fiber Core
Multi-Mode (62.5/125µm, 50/125µm)
Single-Mode (9/125µm, 3.3V
RJ-45 Socket
CAT-5 (10/100/1000Mbps) Twisted Pair cable
Auto MDI/MDI-X and Auto-Negotiation Function Support
DIP Switch:
DIP Switch 1: Fiber Auto-Nego / 1000Mbps Full Duplex mode
DIP Switch 2: TX to Fiber LLF (Link Lose Forwarding) Disable/Enable
DIP Switch 3: Fiber to TX LLF (Link Lose Forwarding) Disable/Enable
Transfer TX (100/1000Mbps, LK/Act, FDX), Fiber (LK/Act, FDX)
Power Adapter
Power DC9V / ~ 45°C
Humidity
10% to 90% to Fiber (mini-GBIC) Media converter
Auto Negotiation Speed, Half/Full Duplex
TX port support Auto MDI/MDI-X
Build in Link Loose Forwarding Technology
Hot swap for chassis
Can be used stand alone or mounted in Converter Chassis
Dimensions & Weight
Dimensions
4.7" x 3.3" x 1.0"
