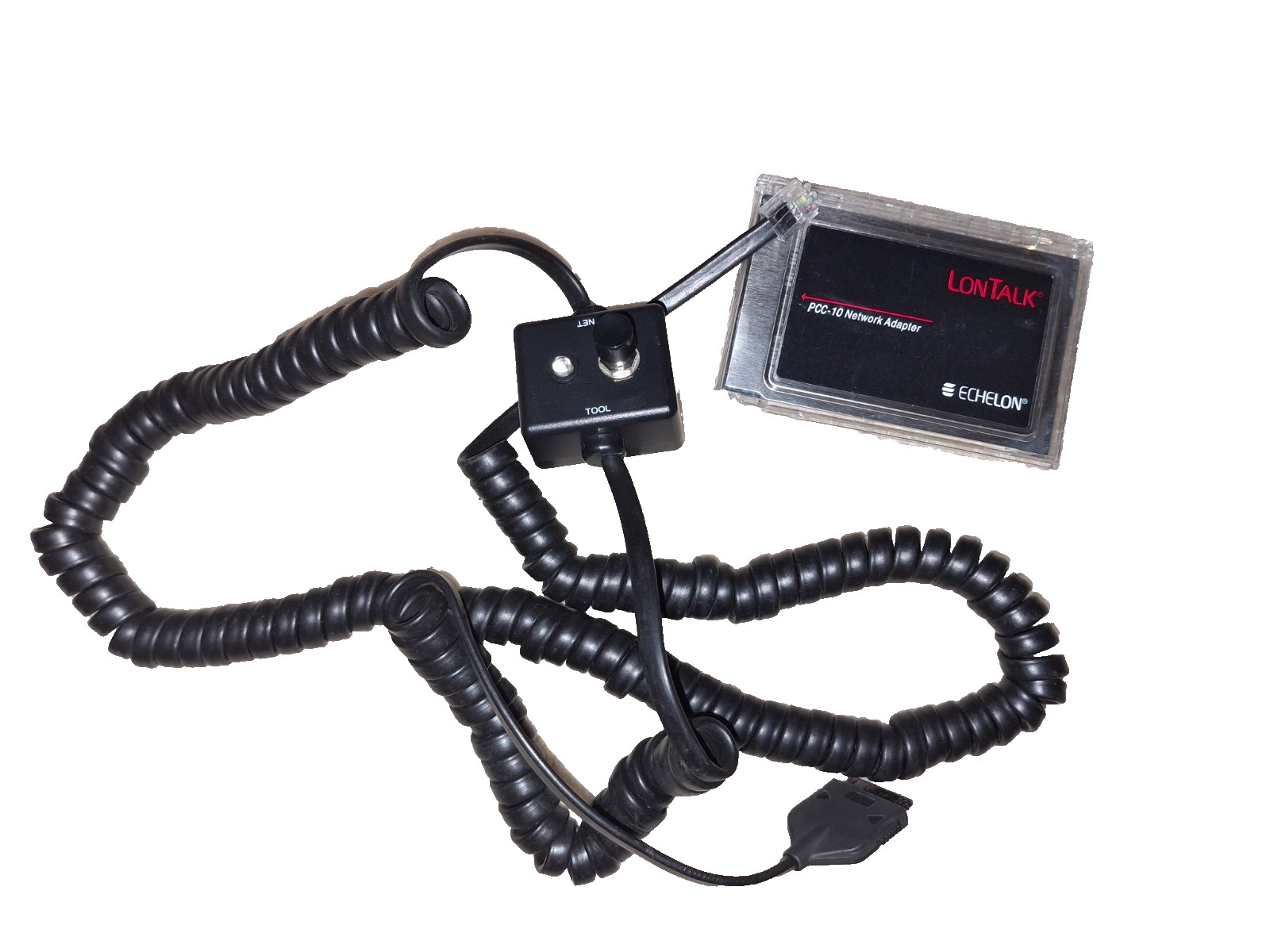

Card and Cable included
RJ-11 Jack General Signal Allocations

• Pin 1 & 6: Shield / Ground reference or unused depending on adapter variant.
• Pin 2 & 5: Power / Common or Thermistor signal return.
• Pin 3 & 4: Data / LonWorks (LOY+/LOY-) or Sensor Signal & Override/Bypass switch input.

DescriptionThe PCC-10 PC LonTalk Adapter is a high-performance LONWORKS interface for personalcomputers equipped with a Type II PC Card (formerly PCMCIA) interface and a compatible operating system. Designed for use in LONWORKS control networks that require a PCto monitor, manage, or diagnose the network, the PCC-10 adapter is ideal for industrialcontrol, building automation, and process control applications. The PCC-10 adapter features an integral FTT-10A twisted pair transceiver, downloadable memory, a network management interface, and plug-and-play capability with Microsoft Windows 95/98/2000 andWindows NT.Model 73200R is compliant with the European Directive 2002/95/EC on the restriction ofthe use of certain hazardous substances (RoHS) in electrical and electronic equipment.Single-ended and special purpose communication port modes are available via a 15-pinconnector. Access toLONWORKS bus-style TP/XF-78 and TP/XF-1250 twisted pair channels is accomplishedthrough external transceiver assemblies (referred to as “pods”). The PCC-10 card can alsobe used with power line, RF, coaxial cable, IR, and fiber optic transceivers, and current-limited +5VDC power is supplied for powering these external pods.The PCC-10 TP-78 Pod (Model 73250) allows the PCC-10 PC Card to be attached to aTP/XF-78 channel. while the PCC-10 TP-1250 Pod (Model 73251) allows the PCC-10 PCcard to be attached to a TP/XF-1250 channel. Echelon manufactures the PCC-10 TP-78Pod and the PCC-10 TP-1250 Pod ; other pod version may be available from other manufacturers.
