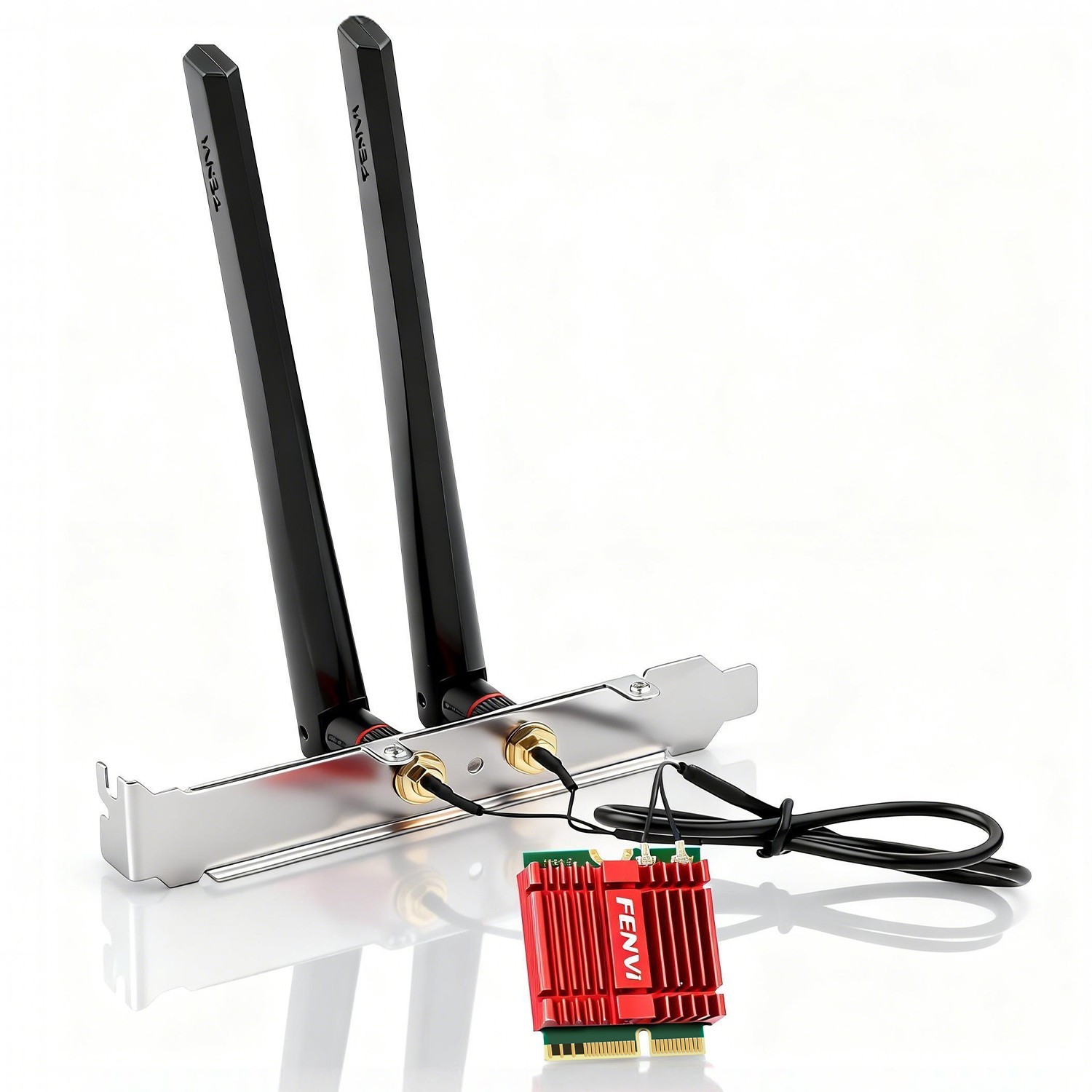

MT7925 WiFi 7 M.2 2230 Key E Card with Antenna Kit BE6500 Tri-Band Bluetooth 5.4

Upgrade your laptop or desktop with WiFi 7 technology. This M.2 2230 card uses the MediaTek MT7925 chipset and supports tri-band speeds up to 6.5 Gbps (6GHz: 2882Mbps, 5GHz: 2882Mbps, 2.4GHz: 688Mbps). Suitable for 8K video streaming, online gaming, and large file transfers.

Key Features

• WiFi 7 (802.11be) BE6500 tri-band speeds up to 6.5 Gbps

• 160MHz channel bandwidth support on 6GHz and 5GHz

• Bluetooth 5.4 for headsets, keyboards, mice, and controllers

• OFDMA and MU-MIMO for stable multi-device connections

• WPA3 security encryption

• M.2 2230 Key-E form factor

• Includes low-profile bracket, cables, and two high-gain antennas for desktop use

Operating System Notes

• Windows 11: Full support for 6GHz band and WiFi 7 features

• Windows 10: May not support 6GHz band; speeds will be limited to 2.4GHz and 5GHz only

Important Compatibility Notes

• MLO requires a WiFi 7 router that also supports MLO. Both the card and the router must have this feature enabled.

• When connected to a WiFi 6 or older router, the card will work at the router’s maximum supported speed.

• Please verify your device has an available M.2 2230 Key-E slot and compatible antenna connectors before purchase.

• Bluetooth function may require an internal USB connection on some motherboards. Refer to your motherboard manual if Bluetooth is not detected.

• This card connects your PC to a WiFi network. It does not create its own hotspot.

Package Includes

• 1x WiFi 7 M.2 2230 Card (MediaTek MT7925)

• 2x High-Gain Antennas

• 1x Low-Profile Bracket
