Mellanox 100gb/s Qsfp28 Optical Transceiver - For Optical Network 1 Mpo 100gbase-sr4 Network - Optical Fiber Multi-mode - 100 Gigabit Ethernet - 100gbase-sr4 - Hot-pluggable (mma1b00-c100d) Mellanox 100gb/s Qsfp28 Optical Transceiver - For Optical Network 1 Mpo 100gbase-sr4 Network - Optical Fiber Multi-mode - 100 Gigabit Ethernet - 100gbase-sr4 - Hot-pluggable (mma1b00-c100d)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Environmentally Friendly: Yes
Country of Origin: Israel
Product Description
This item is brand-new, factory sealed.

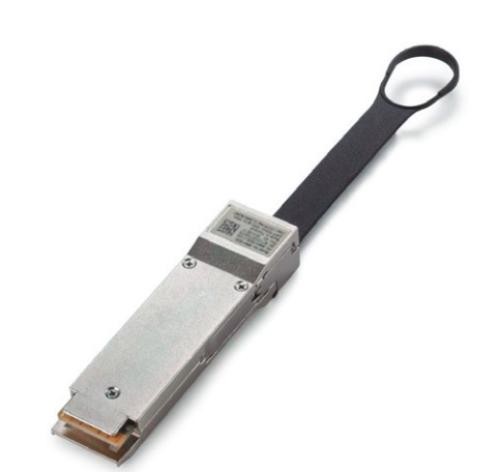

Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.
The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:
-Temperature with warning/alarm
-Supply voltage with warning/alarm
-Laser bias current
-Transmitted optical power with warning/alarm
-Received optical power with warning/alarm
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
SpecificationPhysical CharacteristicsForm FactorHot-pluggableWarrantyLimited Warranty1 YearInterfaces/PortsTotal Number of Ports1Connector TypeMPOInterfaces/Ports Details1 x MPO 100GBase-SR4 NetworkGeneral InformationBrand NameMellanoxMarketing InformationMellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant. The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd. The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds: -Temperature with warning/alarm -Supply voltage with warning/alarm -Laser bias current -Transmitted optical power with warning/alarm -Received optical power with warning/alarm Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability. Product TypeQSFP28Product Name100Gb/s QSFP28 Optical TransceiverManufacturerNVIDIA CorporationManufacturer Part NumberMMA1B00-C100DMedia & PerformanceEthernet Technology100 Gigabit EthernetMedia Type SupportedOptical FiberFiber Mode SupportedMulti-modeNetwork Technology100GBase-SR4TitleProduct TitleMellanox 100Gb/s QSFP28 Optical Transceiver (MMA1B00C100D)Technical InformationApplication/Usage
- Optical Network
- Data Networking
