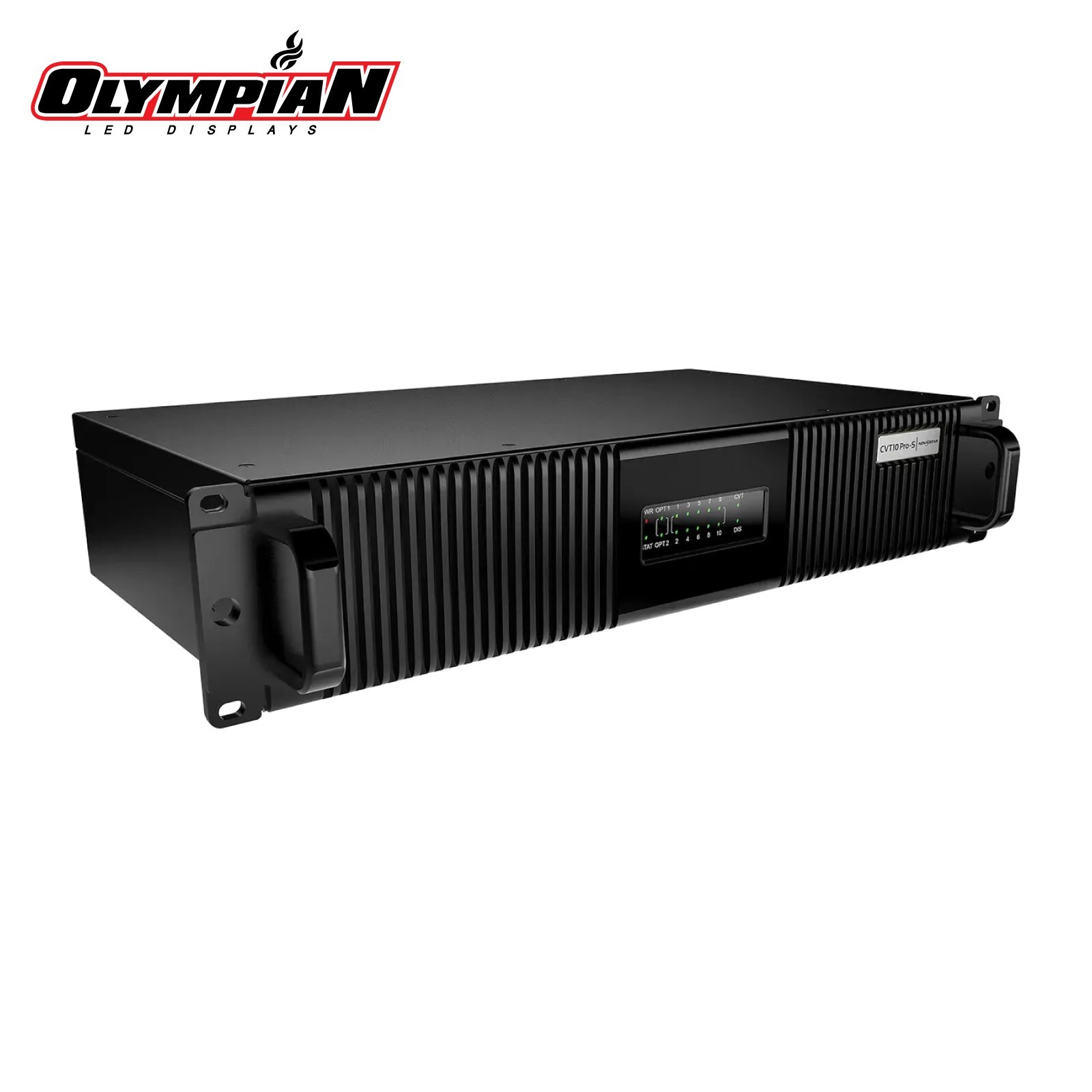

The NovaStar CVT10 Pro is a professional-grade fiber converter designed to deliver stable, high-speed, full-duplex transmission between LED sending cards and LED display screens. Whether you're working with single-mode (CVT10 Pro-S) or multi-mode (CVT10 Pro-M) fiber networks, this converter ensures long-distance data transmission with hot-swappable optical ports and dustproof, waterproof build quality — all in a rugged 1U rackmount form factor.

🔧 Key Features:

• Models Available:

  • CVT10 Pro-S: Single-mode, 1310nm, up to 10 km range

  • CVT10 Pro-M: Multi-mode, 850nm, up to 300 m range

• 10x Gigabit Ethernet Ports:

  • Up to 1 Gbit/s each

  • Supports 8 or 10 ports depending on optical signal encoding

• 2x 10G Optical Ports (Hot-Swappable):

  • OPT1 = Primary

  • OPT2 = Backup

• 1x USB Type-B Port:

  • For firmware upgrades (NovaLCT V5.4.0+)

• Certifications: CE, FCC, UL, IC, CB, RCM, KC – Fully Certified for Global Use

📦 Included in Box:

• CVT10 Pro Unit

• Power Cord

• USB Cable

• Certificate of Approval

• Ships in protective white carrying case + kraft box packaging

📐 Dimensions & Specs:

• Power Supply: 100–240V~, 50/60Hz, 1.5A

• Rated Power: 22W

• Operating Temp: –20°C to +55°C

• Dimensions: 482.6mm × 88.1mm × 280.0mm

• Weight: 5.9 kg (Net) / 7.8 kg (Gross)

• Mounting: Rackmount or Truss Clamps (φ10mm bolts required)

• Optical Connectors: LC Type

🎯 Ideal For:

• LED Display Technicians

• AV Professionals

• Stadiums, Arenas, Houses of Worship

• Any long-distance LED control setup

💬 Why Buy From Us?

We’re a trusted distributor with extensive inventory and technical knowledge. Our units are in stock and ready to ship from the USA. If you need help choosing between single-mode or multi-mode models, we’re happy to assist!
