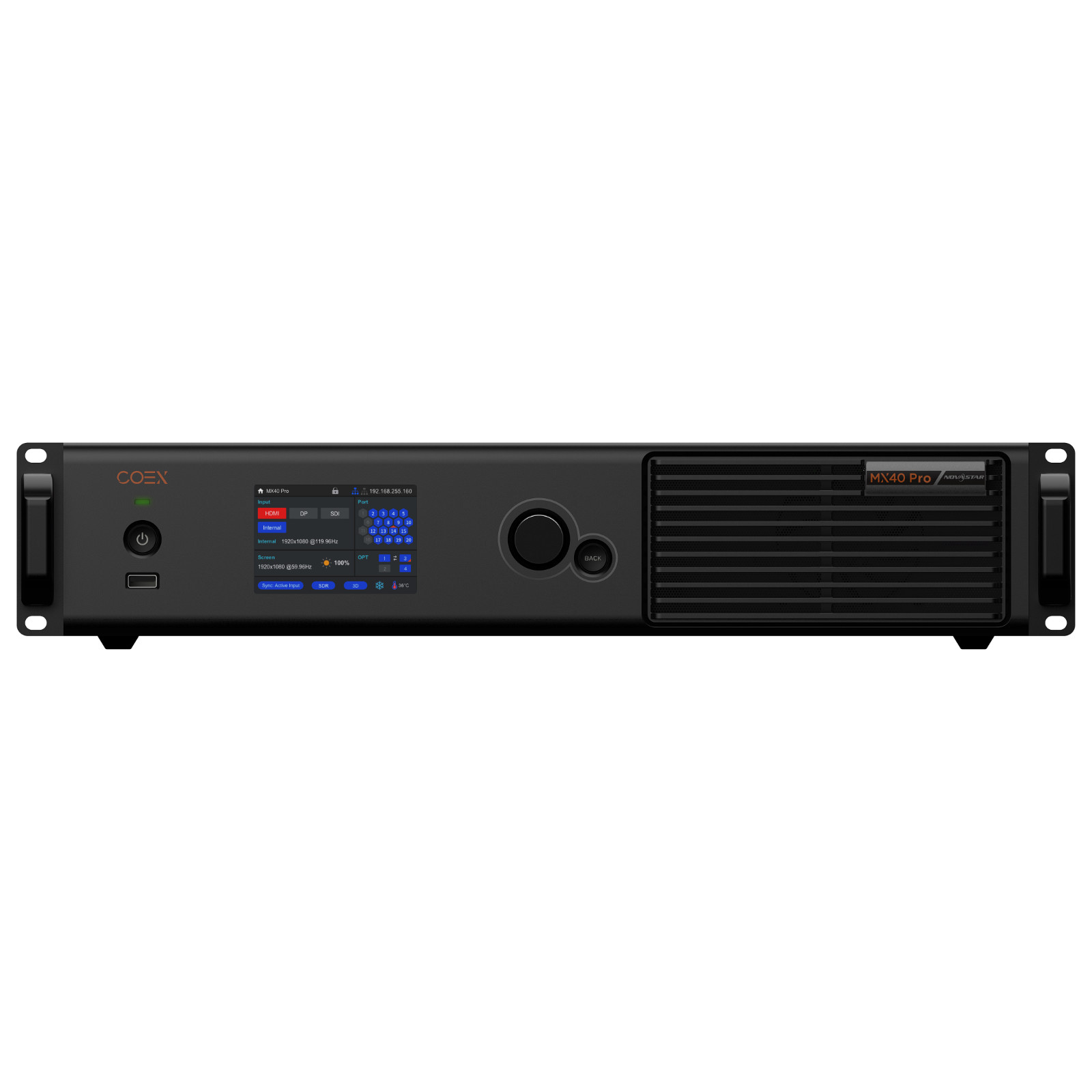

The MX40 Pro is a flagship 4K LED display controller in the new generation control system COEX series. This controller offers rich video inputs (HDMI 2.0, DP 1.2 and 12G SDI) and 20 Ethernet outputs . It can also work with the brand new software VMP ( Vision Management Platform) to provide a better operation and control experience.
NOTE: The MX40 Pro currently does not support scaling. It should be coming in a future firmware update in May. If you are needing scaling now, you might want to check out the NovaPro UHD Jr. Call us for better pricing!
Inputs
− 3x HDMI 2.0 (with loop through
− 1x DP 1.2
− 1x 12G SDI (with loop through
12 bit, 10 bit and 8 bit video inputs
Genlock signal input (with loop through
Ethernet outputs
20 Ethernet outputs , up to 8.8 million pixels supported
Optical outputs
Four 10G SFP+ outputs
Adaptive frame rate
Adaptive to various input frame rates, including
decimal frame rates
Advanced Features
Color processing
Abundant functions are provided to adjust and correct the video colors, such as Color Replacement, 14CH Color Correction, Color Curve and 3D LUT.
Dynamic Booster
The frame by frame image analysis and dynamic adjustment can significantly improve the display contrast and image details for better visual experience and effectively control and lower the display power consumption , extending the service life of the LED screen
Full Grayscale Calibration
Each grayscale of the input source has its own unique calibration coefficients, which can achieve brightness and chroma uniformity in high brightness, medium grayscale, and low grayscale at the same time.
Pixel level brightness and chroma calibration
Work with NovaStar’s high precision calibration system to calibrate the brightness and chroma of each pixel, effectively eliminating brightness differences and chroma differences, and enabling high brightness consistency and chroma consistency.
HDR
− Support HDR10 and comply with the SMPTE ST 2084 standard.
− Support HLG and comply with the BT.2100 standard.
Latency
− Support low latency. The latency at the sending card is 0 frame less than 1 ms and the loading capacity is not reduced.
− Support additional video delay. Zero to two frames of delay can be added at the sending card.
3D
Work with the specified receiving cards , 3D emitter and 3D glasses to bring a fascinating and immersive 3D viewing
experience.
Device Controls
VMP software control
The device can be c onnected to and managed by NovaStar’s brand new VMP software. VMP features plenty of practical and easy to use functions, such as input and output settings , screen configuration, display correction, color processing , preset management, screen maintenance, and more.
Cascading control via Ethernet
The Gigabit Ethernet control ports support TCP/IP protocol and star topology . No switch is needed to cascade control of multiple devices as a network switch is already built in.
****Olympian LEDis a wholesale distributor dealing primarily with professional consumers, therefore we are not staffed to provide technical support for the layperson.
Due to the technical nature of this product, the price of the item, and the cost to ship it,if you are not 100% sure about how to use this product,we ask you to contact Olympian LED before purchasing the product so we can help you determine if it will meet your needs.
Reasonable best offers are considered. However, please keep in mind:
1) We are already the lowest price on .
2) These are brand new.
3) We offer free shipping and due to the weight and the need to insure them, it costs us approximately $90 to ship within the continental US.
IMPORTANT: Due to the high dollar value of this item, an adult signature will be required if shipping to a RESIDENTIAL address.
