Main Parameters
Product Name

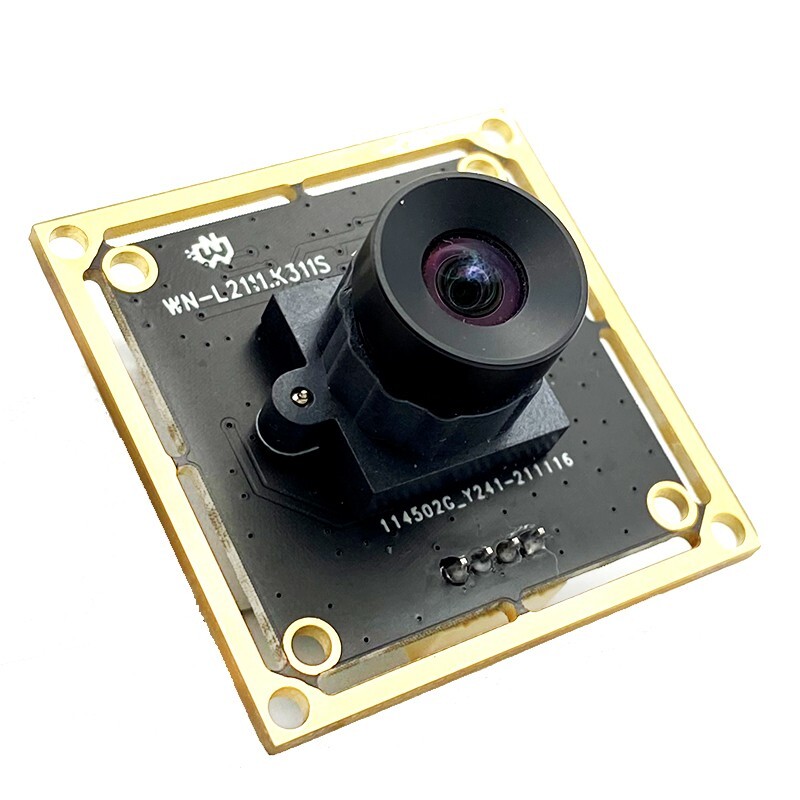

2MP USB2.0 Camera Module
Product Code
WN-L2111.K311S
Module Size
38*38mm,32*32mm
Image Sensor
1/2.7-inch OV2735CMOS Sensor
Max. Resolution
1920H x 1080V
Pixel Size
2.8*2.8μm
Output Format
MJPEG, YUY2
Field of View
95 Degree Without Distortion
Lens
F:3.0mm F/NO:2.5 2G2P+650IR(M12-0.35P)
Focus Mode
Fixed Focus/Manual focus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB2.0
Interface
4PIN2.0mm Connector
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
1920x1080
30FPS
1280x720
30FPS
640x480
30FPS
YUY2
1920x1080
5FPS
1280x720
5FPS
640X480
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
190mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
