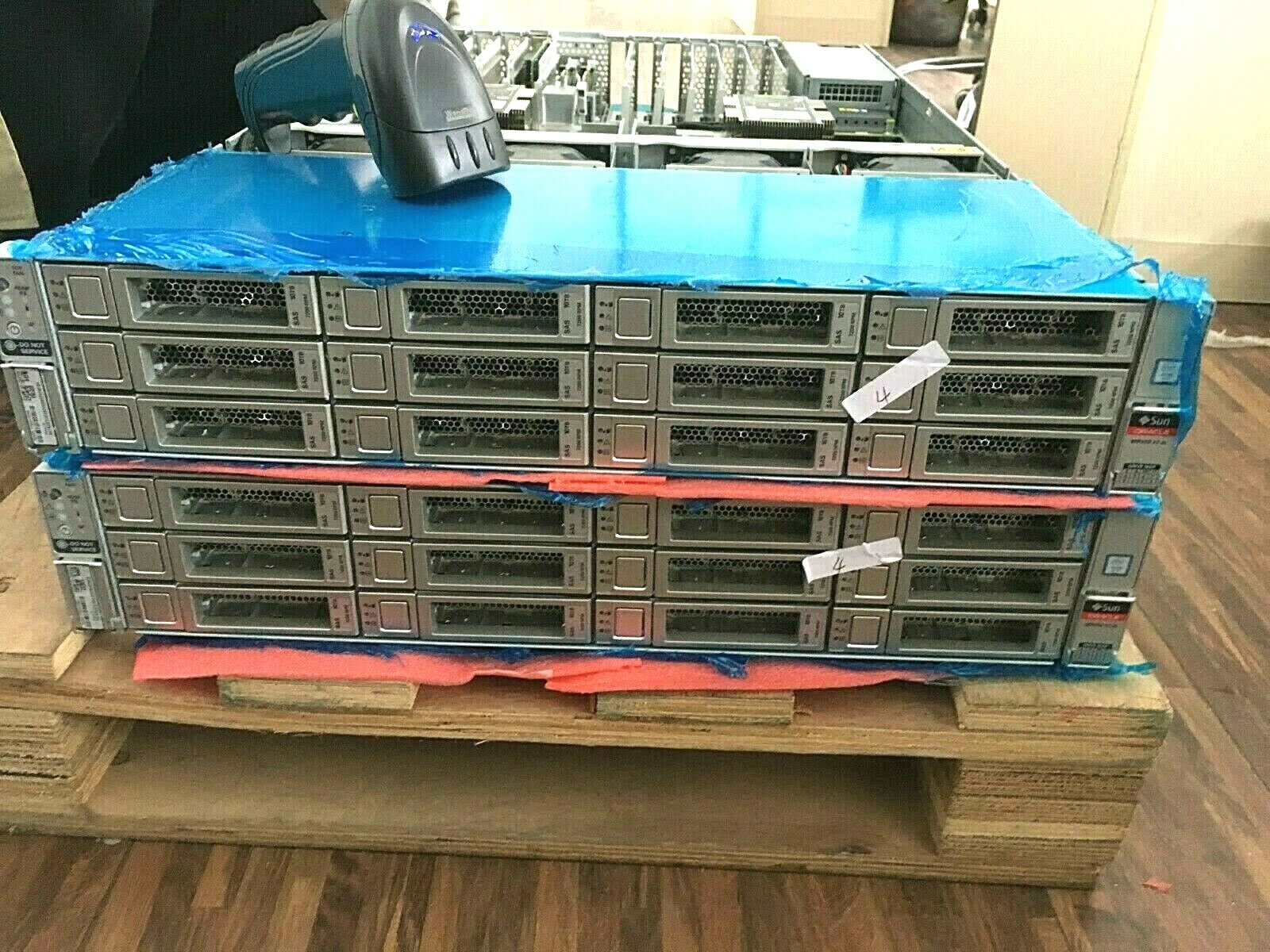

Oracle Exadata X7-2L Server

Includes-

:

• Exadata X7-2 Storage Server (X7-2L Based) USED, including:
• 2х 10-Core 2.2GHz Xeon S-4114, 85W
• 1х System Board Assembly
• 12х 16GB DDR4-2666/2933 Registered DIMM
• 1х 16-Port 12Gbps SAS-3 Internal RAID HBA
• 1х Cable and Super Capacitor Assembly, includes:
• - Double Sided Fastener, 1"x5"
• - 13.5V 6.4F Super Capacitor
• - Super Capacitor Cable
• 1х SAS-3 Data Cable Assembly
• - 36-Pin SFF-8643 to 1x 90° 42-Pin SFF-8612, 580mm, Port 3
• - 72-Pin SFF-8643 to 2x 90° 42-Pin SFF_8612, 580mm, Port ½
• 4x 6.4TB Flash Accelerator F640 v1 NVMe PCIe Card (Aura 7 AIC), 7335943
• 12х 10TB - 7200 RPM SAS-3 Disk Drive Assembly with 1 bracket
• 2х 150GB Intel M.2 SATA Solid State Drive
• 2х M.2 Form Factor Riser Assembly
• - M.2 Round Snap-Fit Clip
• - M.2 Form Factor Carrier
• 1х Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
• 2х Type A266 800/1200 Watt AC Input Power Supply
• 1х Cable Kit
• - 11-Pin Front Interface Module Cable, 600mm
• - 10-Pin DC Power Cable, 420mm
• - 6-Pin PCI Express Power Cable, 150mm
• - 3-Pin Temperature Sensor Cable, 170mm
• - 34-Pin Backplane Data Cable, 445mm
• - Serial Management Cable
• 1х Left Front Indicator Module
• 1х 12-Slot Disk Backplane
• 1х Air Flow Director
• 4х Dual Counter Rotating Fan Module
• 1х 1U/2U Snap-In Slide Rail Rackmount Kit (includes two Rails)
• 1х Cable Management Arm
• 2х 10Gbps QSFP to QSFP passive Copper Cable, 3m, 530-4445 [F]
• 2x 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M, Black, 7015400 [F]
•


FULLY TESTED

SHIPS SAME OR NEXT DAY

90 DAY WARRANTY

Email us....we can configure to meet your exact specification

Oracle Server X7-2L: Hardware Memory

Standard I/O

• Internal Mass Storage
• Power Supplies and and Weights
• Rack Mounting

ProcessorNumber1 or 2 Processors (two processors required for maximum memory and I/O configurations)ArchitectureType:Intel Xeon Processor Scalable Family of ProcessorsCPUs10-Core 2.2GHz Xeon S-4114, 85W
6-Core 3.4GHz Xeon G-6128, 115W
18-Core 2.3GHz Xeon G-6140, 140W
24-Core 2.1GHz Xeon P-8160, 150W
24-Core 2.7GHz Xeon P-8168, 205W
CacheLevel 1: 32 KB instruction and 32 KB data L1 cache per core
Level 2: 1 MB shared data and instruction L2 cache per core
Level 3: Up to 1.375 MB shared inclusive L3 cache per coreMain MemoryCapacities

• 24 DIMM Slots
• DIMM Size and Type:16GB: DDR4-2666 Registered DIMMs, 32GB: DDR4-2666 Registered DIMMs, or 64GB: DDR4-2666 Load Reduced DIMMs
• Minimum Memory Capacity:1 DIMM per installed CPU is the minimum requirement.
• Maximum Memory Capacity:1.5TB using 64GB DIMMs x 24 Slots in a 2 CPU configuration

Standard I/ONetwork Management

• One 10/100/1000BASE-T RJ-45 Oracle Integrated Lights Out Manager (ILOM)
  service processor (SP) network management (NET MGT) port.
• One 10/100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port, labeled NET 0

Serial ManagementOne RJ-45 serial management (SER MGT) portUSBRear:1 USB 3.0 Port
Internal:1 USB 3.0 PortI/O ExpansionEleven PCIe 3.0 slots:

• Slots 1 and 7: x16 electrical interface
• Slots 1 through 6, and slots 8 through 11: x8 electrical interface

Note:PCIe slots 1 through 6 are nonfunctional in single-processor systems.Internal Mass StorageDisks and FlashThe storage drive configuration can comprise both hard disk drives (HDDs) or solid state drives (SSDs). The configuration includes:

• Up to twelve 3.5-inch hot-pluggable SAS3/SATA3 HDDs/SSDs, or optional support for up to twelve 2.5-inch NVM-Express (NVMe) SSDs
• Two hot-pluggable internal SATA/PCIe M.2 flash modules

Note:The NVM-Express PCIe switch card is required for storage drive configurations that contain NVMe SSDs.
Note:NVMe SSDs are supported only on servers running Oracle Linux or Oracle Solaris operating systems.Power Supplies and FansPower SuppliesTwo hot-swappable and redundant power supplies, rated 91% efficiency.Cooling FansFour 80-mm, hot-swappable fan modules for chassis cooling. Each fan module contains one pair of counter-rotating fans.
Each power supply has its own cooling fans.EnvironmentPower ConsumptionOnline power calculatorAC powerRated line voltage: 100 to 240 VAC
Rated input current 100 to 127 VAC 8.5 A and 200 to 240 VAC 5.7 ATemperatureOperating:5° C to 35° C (41° F to 95° F)
Nonoperating:-40° C to 68° C (-40° F to 154°F)Relative HumidityOperating:10% to 90% noncondensing, short term -5° C to 55° C (23° F to 113° F)5% to 90% noncondensing, but not to exceed 0.024 kg of water per kg of dry air (0.053 lbs water/2.205 lbs dry air)Nonoperating:Up to 93% noncondensing 35° C (95°F) maximum wet bulbAltitudeSingle, non-rack system:
Operating:Up to 3,000 m * (9,840 ft) maximum ambient temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft)
* In China markets, regulations may limit installations to a maximum altitude of 2,000 meters (6,562 feet)
Nonoperating:Up to 12,000 m (39,370 ft)Acoustic NoiseMaximum condition:7.1 Bels A-weighted operating
Idle condition:7.0 Bels A weighted
VibrationOperating:0.15 G (z-axis)
0.10 G (x-, y-axes), 5-500Hz swept sine
IEC 60068-2-6 Test FC
Nonoperating:0.5 G (z-axis)
0.25 G (x-, y-axes), 5-500Hz swept sine
IEC 60068-2-6 Test FCShockOperating:3.5 G, 11 ms half-sine
IEC 60068-2-27 Test Ea
Nonoperating:Roll-off: 1.25-inch roll-off free fall, front to back rolling directions
Threshold: 13-mm threshold height at 0.65 m/s impact velocity
ETE-1010-02 Rev ARegulations
Meets or exceeds the following requirements:SafetyUL/CSA-60950-1, EN60950-1-2006, IEC60950-1 CB scheme with all country differencesEMCEmissions: FCC CFR 47 Part 15, ICES-003, EN55022, EN61000-3-2 and of Hazardous Substances (RoHS) Directive 2011/65/EU, Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU, Low Voltage Directive 2006/95/EC, and EMC Directive 2004/108/ECCertifications

• North America Safety (NRTL)
• European Union (EU)
• International CB Scheme
• BIS (India)
• BSMI (Taiwan)
• RCM (Australia)
• CCC (PRC)
• MSIP (Korea)
• VCCI of Srpska

European Union Directives

2014/35/EU Low Voltage Directive
• 2014/30 EMC Directive
• 2011/65/EU RoHS Directive
• 2012/19/EU WEEE Directive

Dimensions and WeightHeight8.69 cm (3.42 in.).Width48.2cmm (18.9 in.).Depth75.9 cm (29.9 in.).WeightFully Populated Server:29.03kg (64lbs)Rack MountingOracle Server X7-2L Rack Installation Kits

• Tooless rackmounting slide rail kit
• Cable management arm
