Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

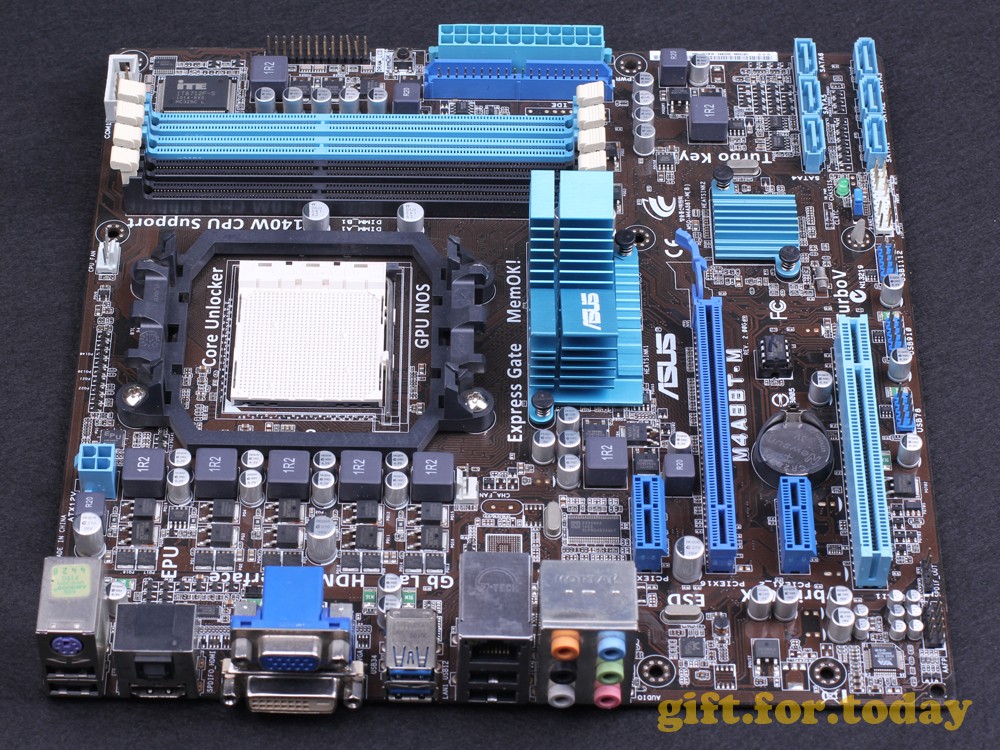

ASUS M4A88T-M Motherboard Introduction

CPU

AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3 45 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet™ Technology

Chipset

AMD 880G/SB710

Memory

4 x DIMM, Max. 16GB, DDR3 1866(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.

System Bus

Up to 5.2 GT/s HyperTransport™ 3.0

Graphic

Integrated ATI Radeon™ HD 4250 GPU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 85 Hz
Maximum shared memory of 1024 MB
Dual independent displays support with HDMI/DVI and D-Sub
Hardware Decode Acceleration for H.264, VC-1, and MPEG-2
Blu-ray playback support *1
Supports DirectX 10.1, OpenGL 2.0, Shader Model 4.1, Universal Video Decoder (UVD) 2.0

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Expansion Slots

1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI

Storage

AMD SB710 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD

LAN

Realtek® 8111E , 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel

USB Ports

Built-in Controller :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

ROG Exclusive Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Power Design :
- ASUS EPU-4 Engine
Turbo Key
TurboV
Core Unlocker
Auto Tuning *2
GPU NOS
ASUS Exclusive Features :
- MemOK!
- Anti-Surge
- Express Gate
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Q-Fan
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)

BIOS

16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WOL by PME,WOR by PME,WOR by Ring,PXE

Form Factor

uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Note

*1: Please use Windows Vista or above OS for Blu-ray Playback.
*2: Adopt fast mode.

Unlock the Potential, Turbocharge your Performance!

• Core Unlocker - Intelligently Unlocks True Core Performance
• TurboV - Feel the adrenaline rush of real-time O.C.!
• GPU NOS - Instant iGPU Level Up!
• Auto Tuning - Auto System Level Up!
• MemOK! - Any Memory is A-OK!
• Turbo Key - Touch-N-Boost! No more lag!

ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as "gift", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.

Package include:1* motherboard2* SATA cables1* I/O pannel
