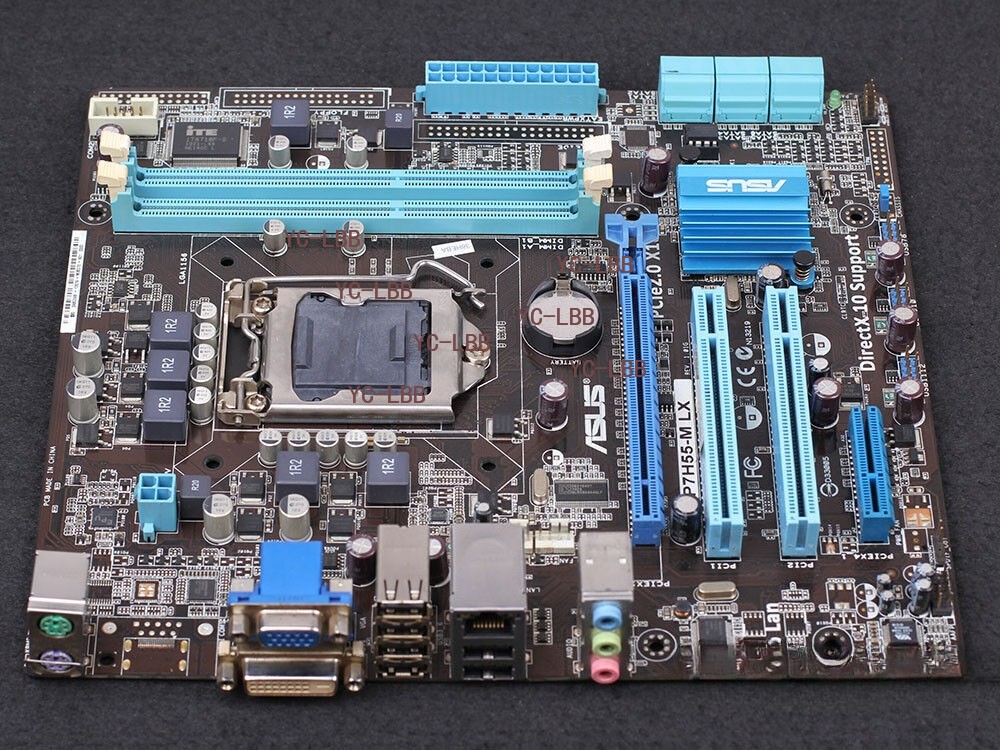

ASUS P7H55-M LXMotherboardIntroduction

CPU

Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium®
Support Intel next generation 32nm Multi-Core CPU

Chipset

Intel® H55

Memory

2 x DIMM, Max. 8 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
2 x PCI

VGA

Multi-VGA Output Support: DVI-D and RGB Ports
Supports Microsoft® DirectX 10
D-SUB with Max. Resolution : 2048 X 1536 @75Hz
DVI with Max. Resolution : 1920 X 1200 @60Hz

Storage

Intel® H55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports

LAN

Realtek 8112L Gigabit LAN PCIe controller

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC
- Support Multi-streaming

USB

12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features

ASUS Quiet Thermal Solution
- ASUS Q-Fan 2
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS AI NET 2
ASUS Anti-Surge

Back Panel I/O Ports

1 x DVI
1 x D-Sub
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
6 x USB 2.0/1.1
3 -Channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
COM connector
System Panel connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector

BIOS

64 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a

Manageability

WOR by Ring, WOL, PXE, PME Wake up

Form Factor

uATX Form Factor
9.6 inch x 8.6 inch ( 24.4 cm x 22.9 cm )
