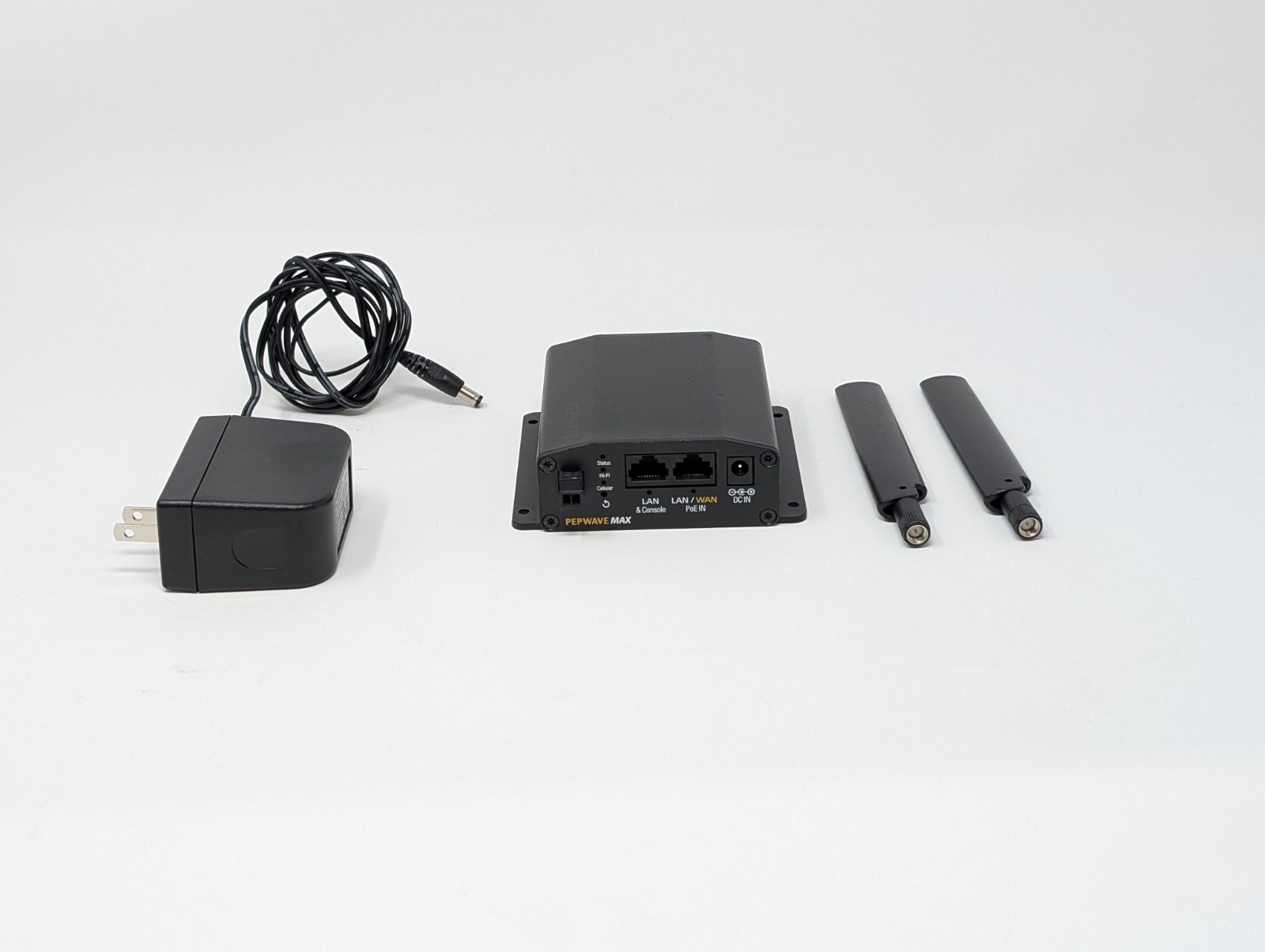

Peplink Pepwave MAX BR1 Mini – LTE ModelNote: This unit came out of a working environment. It is used. Cleaned and tested.Package contains, Power Supply, 2 Antennas, and Pepwave MAX BR1 Mini.

Hardware Specifications

WAN / LAN Ports

• 1 × WAN (10/100 Mbps)
• 1 × LAN (10/100 Mbps)
  (Note: With optional “feature pack,” the LAN port can be turned into a second WAN.)

Embedded Cellular Modem

• 4G LTE or LTE-Advanced (depending on SKU)
• Dual redundant SIM slots (Nano-SIM)
• Automatic failover between SIM A & SIM B

Typical LTE Performance

• LTE model: up to ~100 Mbps down / ~50 Mbps up
• LTE-A model: up to ~300 Mbps down / ~50 Mbps (2.4 GHz)
• Supports Wi-Fi WAN (as WAN input) with optional license

Physical & 4.1 × 4.3 × 1.2 in
(≈ 105 × 110 × 30 0.54 lb (244 g)

Operating Temperature

• –40°F to +149°F (–40°C to non-condensing

Power

Input Power

• 10–30 V DC
• Optional 802.3af PoE (requires PoE splitter)

Power Consumption

• Typically 8–12 W

Antenna / Ports

Antenna Connectors

• 2 × LTE SMA connectors
• 2 × Wi-Fi RP-SMA connectors
• 1 × GPS SMA connector (on GPS-equipped models)

Routing & Software Features

Standard Features

• NAT, DHCP, firewall, port forwarding
• VLAN support (802.1Q)
• QoS, bandwidth control
• Captive portal + RADIUS support
• Local web admin + remote / SpeedFusion (Hot Failover)
  (Bonding & advanced features require “PrimeCare” or add-on license)
• IPsec VPN
• OpenVPN support (varies by throughput: ~100 Mbps
• PepVPN (unencrypted): ~30–60 Mbps depending on model
• PepVPN (AES-256 encrypted): typically 20–40 Mbps
