Designed for harsh industrial environments, the XT model operates from -40°C to +75°C (-40°F to +167°F) and supports applications such as industrial automation, IP surveillance, transportation, utilities, oil & gas, and remote networking. It includes advanced networking features such as Auto-MDIX, Link Pass-Through, Interlink Fault response, Loopback diagnostics, VLAN transparency, and selectable speed/distance profiles.

Specifications

• Manufacturer: Perle Systems

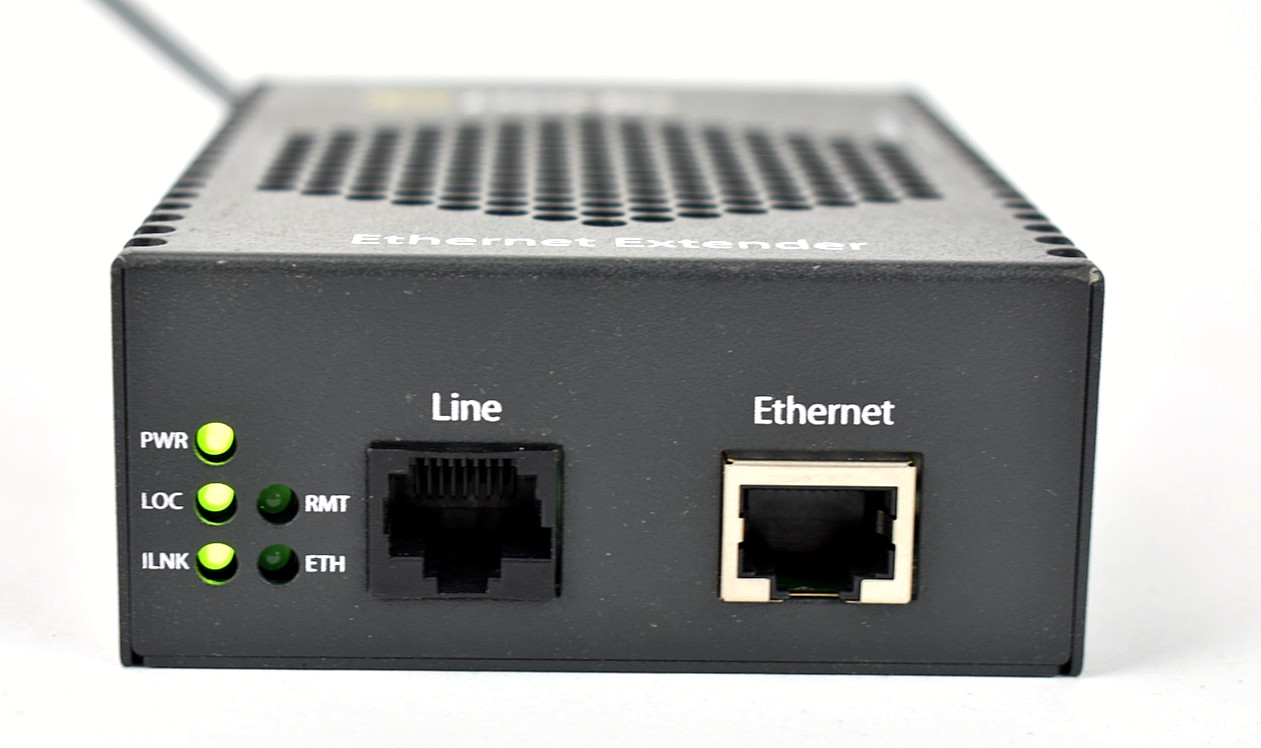

• Model: eX-1S110-RJ-XT
• Part Number: 06003620
• Product Type: Industrial Ethernet Extender
• Ethernet Port:
  • 1 × 10/100Base-TX RJ45
• Interlink Port:
  • 1 × RJ45 VDSL2
• Ethernet Standard:
  • IEEE 802.3
  • IEEE 802.3u
• Maximum Ethernet Distance:
  • 328 ft (100 m) on Ethernet port
• Maximum Extension Distance:
  • Up to 10,000 ft (3 km) over copper
• VDSL Technology:
  • VDSL2 (ITU-T G.993)
• Maximum Frame Size:
  • 1522 Bytes
• Power Input:
  • 9–30 VDC
• Power Consumption:
  • 3.8 W
• Operating Temperature:
  • -40°C to +75°C
• Mounting:
  • Desktop
  • Optional DIN Rail
  • Optional Rack Mount
• Dimensions:
  • 4.7 × 3.1 × 1.4 in. (120 × 80 × 35 mm)
• Weight:
  • 0.73 lb (0.33 kg)
• Country of Manufacture:
  • Canada

Features

• Genuine Perle industrial networking hardware
• Extends Ethernet up to 10,000 ft (3 km)
• VDSL2 high-speed copper transmission
• Industrial temperature rated (-40°C to +75°C)
• Plug-and-play operation
• Auto CO/CPE peer detection
• Auto-MDIX Ethernet interface
• Link Pass-Through support
• Interlink Fault response
• Loopback diagnostics
• VLAN transparent
• Supports existing CAT5/6/7 and other copper wiring
• Rugged industrial metal enclosure

Applications

• Industrial automation
• Factory networking
• Building automation
• Security camera systems
• IP surveillance
• Oil & gas facilities
• Utility networks
• Transportation systems
• Remote equipment networking
• Traffic control systems
• Wireless access point backhaul
• Long-distance Ethernet over copper
