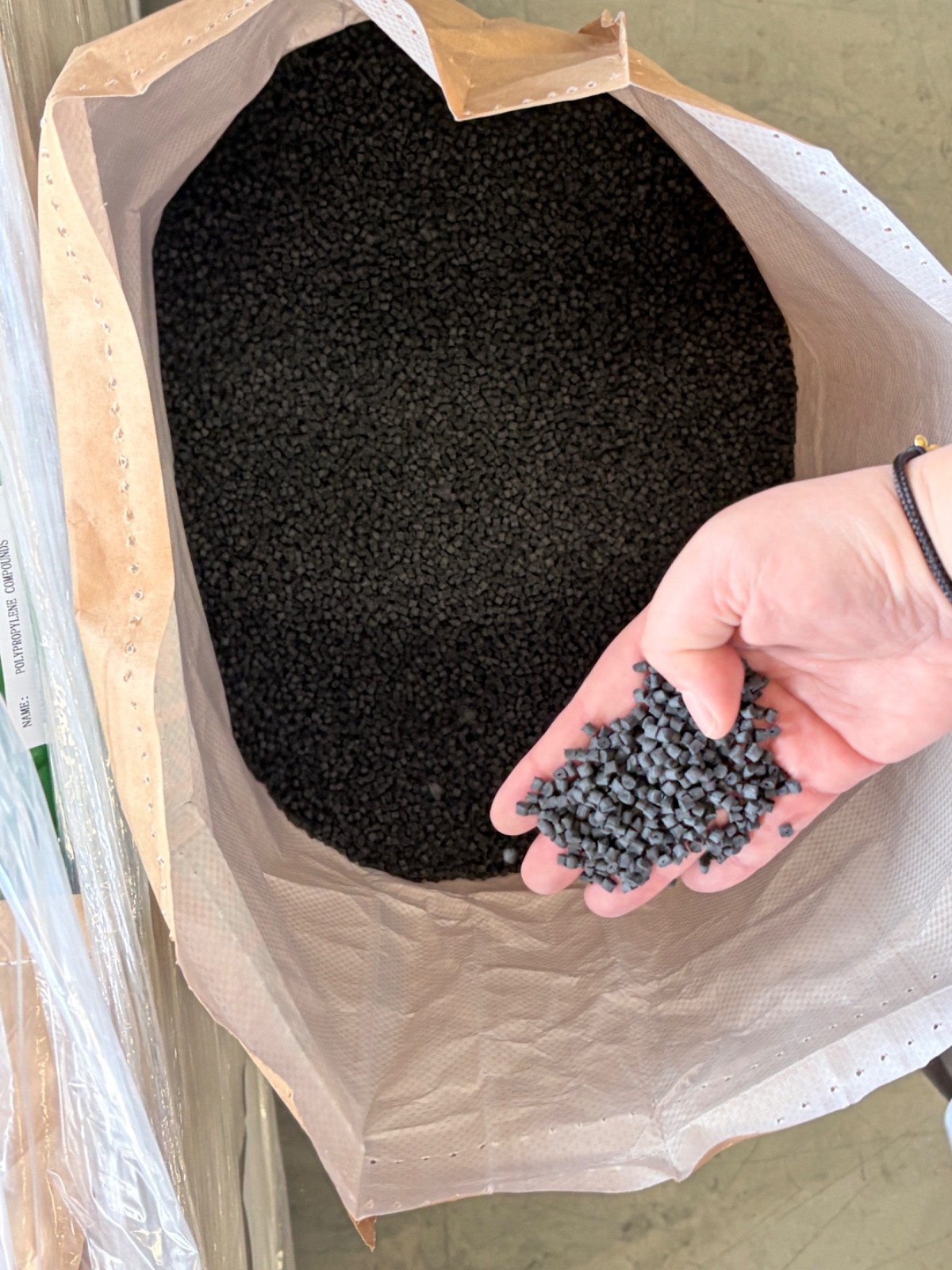

AlgriWorks 3D printing injection engineering plastics
Polypropylene 30% Glass Fiber Load
Color Black x 44 lbs.
Pellet Dimension 3mm x 2mm x 1.5mm
AlgriWorks
Polypropylene 30% Glass Fiber Load
Physical
Test Method
Unit
Typical Value
MFR
@ 230°C/2.16kg
ISO 1133/B
g/10min
11
Density
ISO 1183
g/cm³
1.13
Mechanical
Test Method
Unit
Typical Value
Tensile Strength at Yield
ISO 527/5
“
“
MPa
“
91
Tensile Modulus
7500
Elongation at Yield
%
3.5
Flexural Strength
ISO 178
“
MPa
“
145
Flexural Modulus
7100
Impact
Test Method
Unit
Typical Value
Charpy Impact Strength
@ 23°C (FD)
ISO 179/1eA
kJ/m3
“
10
@ 23°C (TD)
ISO 179/1eU
54
Thermal
Test Method
Unit
Typical Value
HDT
@ 1.8Mpa
ISO 75
°C
150
Melting Point
ISO class="MsoNormal" align="center" style="margin: 0in; line-height: normal; font-size: 12pt; font-family: "Helvetica Light", sans-serif; text-align: center;">
onset
“
“
“
157.5
peak
165
end
170
Crystallization
onset
“
“
“
122
peak
117.5
end
112
Shrinkage
Test Method
Unit
Typical Value
FD
ISO 294
%
0.2
TD
“
“
0.7
Also in Stock:
·Polypropylene 30% Glass Fiber Load
Color Naturalx 44 lbs.
·Polypropylene 20% Glass Fiber Load
Color Blackx 44 lbs.
·Polypropylene Mineral Loaded
Color Black x 55 lbs.
Color Naturalx 55 lbs.
Custom coloring available on request packed in 2205 lbs. Jumbo Bag
