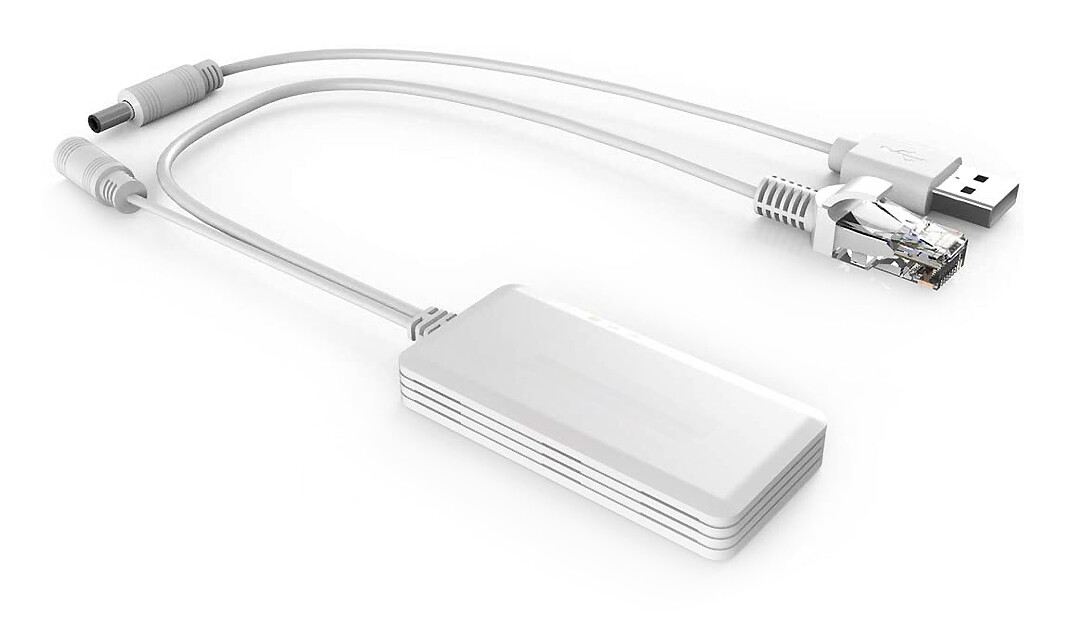

Dual Band 2.4G + 5G Wireless AP + Wi-Fi To Ethernet Bridge Adapter + Wi-Fi Repeater Extender Dual Band 2.4G/5G Wireless AP + Wi-Fi To Ethernet Bridge Adapter + Wi-Fi Repeater Extender
This 3-in-1 Wi-Fi to Ethernet bridge adapter and Wi-Fi repeater AP is an universal Wi-Fi booster and wireless network adapter for extending the wireless signal coverage of existing wireless router or AP or getting wired device with Ethernet port built in such as IP camera, game consoles, network printer wirelessly linked with wireless router or AP.

This portable Wi-Fi adapter transmit in dual wireless band of 2.4Ghz and 5Ghz making this device easy to expand and amplify your network connection in either band with maximum WiFi quality and coverage.

This premium Wi-Fi bridge adapter/repeater can also provide a private Wi-Fi or hotspot from dormitory, hotel room or smart phone to bring Wi-Fi for all of your other mobile devices.

Whether you need a personalize Wi-Fi network or boosting the current Wi-Fi coverage, it has a mode to meet your needs.

This hybrid wireless repeater helps boost the existing WiFi network coverage range up to 1000 feet or 300 meters for wide open transmission.

Multiple Operating Modes
This portable Wi-Fi device supports 3 different operation modes:

• Access Point / Hotspot mode
• Wi-Fi Repeater mode
• Wi-Fi Bridge mode

When the Wi-Fi adapter is set to "Access Point" mode, it could also instantly create a private hotspot point when you are in hotel, office or dormitory to bring Wi-Fi for all of your mobile devices.

When used as a Wi-Fi Repeater/Extender, this Wi-Fi adapter can extend the Wi-Fi coverage of an existing wireless network.

When used as a Wireless To Wired Bridge Adapter, this device will convert a Wi-Fi connection into wired Ethernet connection for hookup with wired device. Any Ethernet-equipped home A/V equipment or wired networking gear can be wirelessly connected with home Wi-Fi network or hotspot from building or smart phone with no network cables attached to them.

Dual-Band Transmission In 5.8 GHz 900Mbps + 2.4GHz 300Mbps
This all-in-1 Wi-Fi booster can take an existing 2.4GHz or 5.8 GHz wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach.

Powered by the latest wireless 802.11AC technology, this Wi-Fi booster delivers ultra fast Wi-Fi speed up to 900Mbps on the 5.8G band and 300Mpbs on the 2.4Ghz band at the same time.

Superior choice for fast HD streaming, online gaming and and other web content upload/download withoutdelay.

Dual Hotspot Zones
This Wi-Fi extender can provide 2 hotspot zones for simultaneous access by other surrounding devices. One at 2.4Ghz and the other at 5.8 Ghz.

Both hotspot zones can be manually turned on or off as needed.

Faster Surfing At 1200Mbps
The featured dual band of 2.4Ghz and 5Ghz transmission delivers data transfer speed up to 1200Mpbs.

Such dual-band transmission can reduce lag time and buffering when you are streaming HD movies to a laptop orconnecting to internet.

Simple tasks like sending emails or web browsing can be handed by the 2.4Ghz band while bandwidth-intensive taskslike online gaming and HD video streaming can be handled on the 5Ghz band.

Universal Compatibility
This Wi-Fi adapter works with any device built with an Ethernet port. Here are some of the many wired Ethernet devices used in the office or home:

• Internet-ready smart TV
• Blu-ray DVD or digital media player with network port
• Video game consoles with Ethernet ports such as Xbox 360
• CCTV system or DVR with network port
• VoIP phones
• IP camera
• Computers such PC or Mac
• Networking gears such as cable modem, router, network switch/hub
• Network attached storage drives
• Laser printer with network port
• Home Theater system with network port

Go Wireless For Wired IP Devices
This Wi-Fi adapter can provide Wi-Fi connection for those wired devices with no wireless link capability.

It converts the Wi-Fi signal through its Ethernet port and passes the internet connection to wired device attached to this Wi-Fi adapter.

Once configured ready, this Wi-Fi bridge adapter can be plugged into the Ethernet port of any wired device. So you can place your wired device virtually anywhere within your wireless office network through using this Wi-Fi adapter.

Smart Wi-Fi Repeater
This device can extend your wireless internet connection at home or in the office.

It can wirelessly connects to your Wi-Fi router, boosting and expanding the Wi-Fi signal more than 1000 square feet so every corner of your house or office has strong, fast Wi-Fi. No more Wi-Fi blind zones

Wired To Wi-Fi Wireless Access Point
When switching to wireless AP mode, this Wi-Fi adapter can instantly expand the originally wired LAN with wireless access function so wireless devices can connect to an existing wired network.

An easy wired to wireless solution without no costly upgrade needed.

It could also instantly create a private hotspot point when you are in hotel room or dormitory to bring Wi-Fi for all of your mobile devices.

Build Your Wireless Hub
This Wi-Fi adapter easily transforms a network switch or network hub into a wireless one by connecting this Wi-Fi adapter into one of the network ports on the switch.

So multiple wired network devices can share just one Wi-Fi adapter and all get wirelessly connected with LAN or internet at the same time.

Easy Setup
Simply plug the Ethernet connector of this Wi-Fi adapter into your computer or use an Android or iOS device to wirelessly log into this Wi-Fi adapter at first.

Then open up a web browser from PC, tablet or smart phone and enter the IP address of its web control panel for configuration of the network settings.

The web-based configuration is only needed once and for all. Just entering existing Wi-Fi parameters such as SSID, network security key, etc and select operation mode for bridge or repeater.

After configuration all done, this Wi-Fi device is ready for use as a stand alone repeater or access point or use with any wired equipment that has Ethernet port built in.

Hybrid Power Supply Mode
This Wi-Fi repeater wired bridge adapter can be powered using the included AC power adapter or smart phone charger or optional power bank. Great for mobile or desktop use.

• 3-In-1 Wi-Fi to wired bridge adapter + Wi-Fi Repeater + Wireless Access Point for all wired and wireless home A/V equipments, security surveillance gears, computer peripherals and networking devices.
• Universal compatibility. Works with any device built with an Ethernet port.
• Boost the existing WiFi network coverage range up to 1000 square feet, eliminating those dead Wi-Fi zones.
• Powered by the latest wireless 802.11AC technology with dual-band transmission in both 5.8 GHz at 900Mbps and 2.4GHz at 300Mbps.
• Superior choice for fast HD streaming, online gaming and other bandwidth demanding tasks.
• Provide 2 hotspot zones for simultaneous access by other surrounding devices. One at 2.4Ghz and the other at 5.8 Ghz.
• Both hotspot zones can be manually turned on or off as needed.
• Instantly expand the originally wired LAN with wireless access function as a wireless Access Point.
• Extend the Wi-Fi coverage of an existing wireless network as a Wi-Fi booster and repeater.
• Convert a Wi-Fi connection into wired Ethernet connection for hookup with wired device as a Wi-Fi to wired bridge adapter.
• Easy solution for transforming wired equipments into Wi-Fi devices.
• Totally eliminating network cable runs for all wired internet equipments.
• Great Wi-Fi bridge adapter for surveillance gears and computer peripherals such as IP camera, CCTV DVR, computer, printer, network switch etc. to share high-speed network connection.
• Premium Wi-Fi Repeater with Ethernet port designed to boost Wi-Fi network coverage range over a wide area.
• Extend the existing wireless signal and eliminate dead zones throughout home or office.
• Instantly create a private hotspot point when you are in hotel room or dormitory to bring Wi-Fi for all of your mobile devices.
• Improve wireless range for smart phones, tablets, laptops and other mobile devices.
• Easy local web GUI setup. 1-minute setup through using computer with a web browser.
• Maximum Wi-Fi transmission range up to 300 meters or 1000 feet.
• Supports all Wi-Fi protocols including 802.11.3u/802.11.3, 802.11n, 802.11g and 802.11b.
• Super fast data transmission rate at 150Mbps.
• Maximum WLAN security with 64/128/152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK data encryption mechanism implemented.
• Supports all hardware data encryption schemes including WEP, TKIP, AES, WPA, WPA2 and WPS.
• Powered by USB port, phone charger or external DC power adapter (included).

• Wi-Fi Protocol Support: 802.11AC, 802.11A, 802.11n, 802.11g, 802.11b
• Transmission Rate:
  • 2.4GHz band: 300Mbps
  • 5GHz band: 900Mbps
• External Interface:
  • A USB plug for power supply
  • A DC 5V plug for power cable
  • A set of 10/100m adaptive Ethernet cable
• Button: Reset button (long press 5 seconds, then release, the device will automatically restore the factory )
• LED Status Indicators:
  • Ethernet port status light (Yellow)
  • 2.4G WiFi connection status light (Blue)
  • 5G WiFi connection status light (Green)
• Antenna:
  • 2 of 5G omni-directional antennas
  • 2 of 2.4G omni-directional antennas
• Wireless Frequency Standard: 2.4Ghz + 5Ghz
• Security Encryption Support: 64/128/152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK and WPS encryption.
• Wireless Transmission Range: 300 meters or 1000 ft.
• Power Input Voltage Support: DC 5V
• Power Consumption: 1.5W Max

• Wi-Fi bridge adapter/repeater unit
• DC to USB power adapter cord
• AC to USB power adapter
• User manual
