QSFP SFP Adapter fortransceivers optical and ethernet modules. Adapter allows to cloning and (re)programming MSA standard SFP / SFP+ / QSFP / QSFP+ / QSFP28 modules with REVELPROG-IS. You can read more about MSA standards by searching in google "MSA standard for transceivers (SFP, OSFP, QSFP, XFP)"

• Adapter requires REVELPROG-ISprogrammer to work - it's NOT included (please check our other items on )

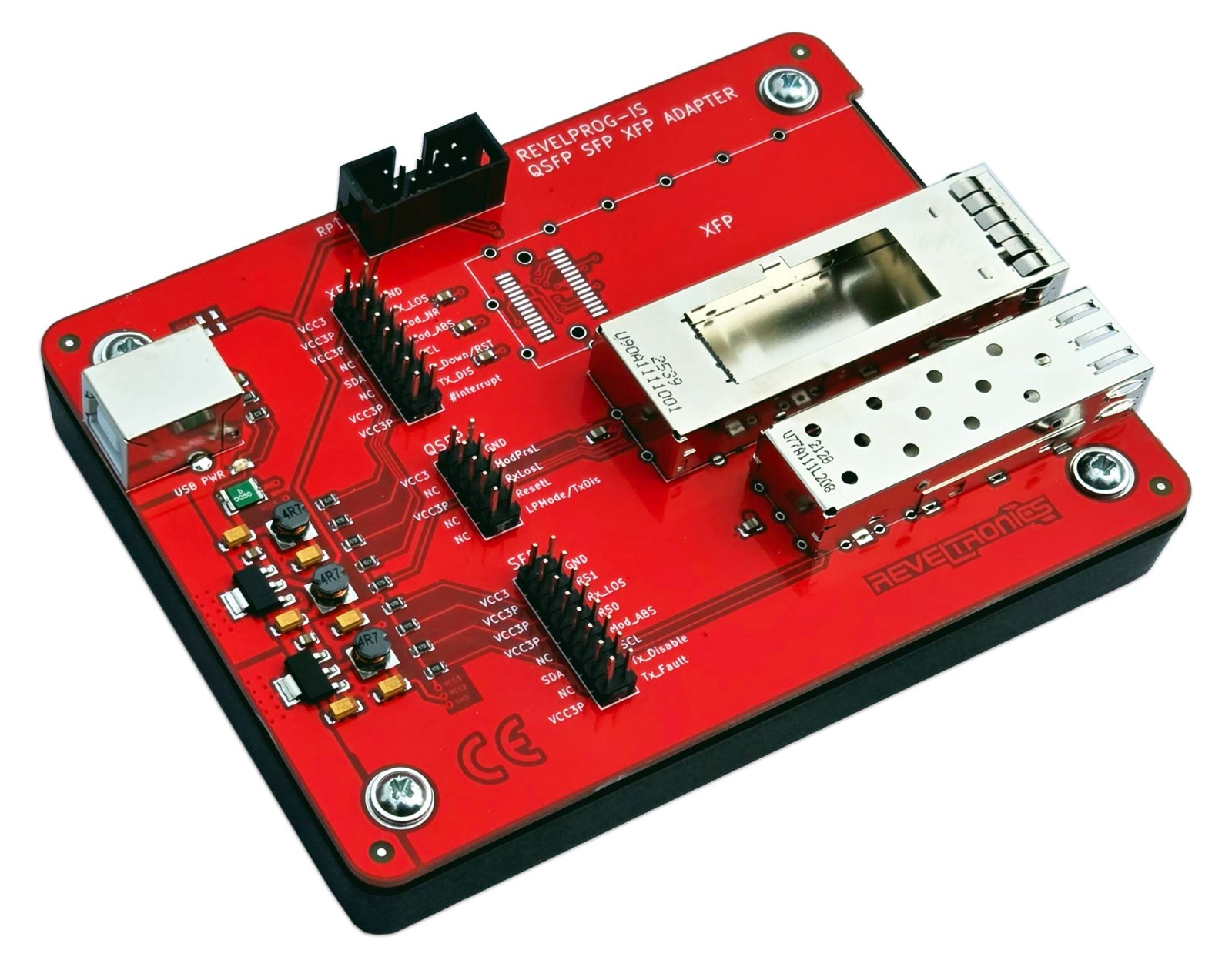

Above coding board is is more advanced version of simple SFP/SFP+ adapter. It's equipped with additional connectors for QSFP/QSFP+/QSFP28 transceivers (XFP connector is not populated). Additionaly all important signals are available on external goldpins. All connectors are equipped with metal cages. We have also in offer coding board for latest multiline transceivers such as OSFP, SFP-DD and QSFP-DD. Please check below table for comparison of all available adapters:.

SFP QSFP Adapter allows programming and clonning unprotected and protected* SFP/SFP+/SFP28/SFP112, QSFP/QSFP+/QSFP28 modules. It is possible to read/write module in MSA standard*, change configuration area (manufacturer name, part name, serial number, configuration bytes etc.) , calculate checksums and write new config to the module. You can make compatible any OEM manufacturer module with your ethernet device, e.g. buy OEM module, programm it with other manufacturers config and make compatible with any switch or router. You can enable TX/RX optics using external pins (jumpers) and tune signal exactly for your needs. *please check memory organization for MSA Standard transceivers on REVELTRONICS forum - search in google "Memory organization in SFP, QSFP and XFP transceivers".

Video: Write password protected SFP & QSFP transceivers with REVELPROG-IS programmer:




In package:

• QSFP SFP Adapter for REVELPROG-IS programmer

• Connection tape compatible with REVELPROG-IS

• USB cable (for power only)
