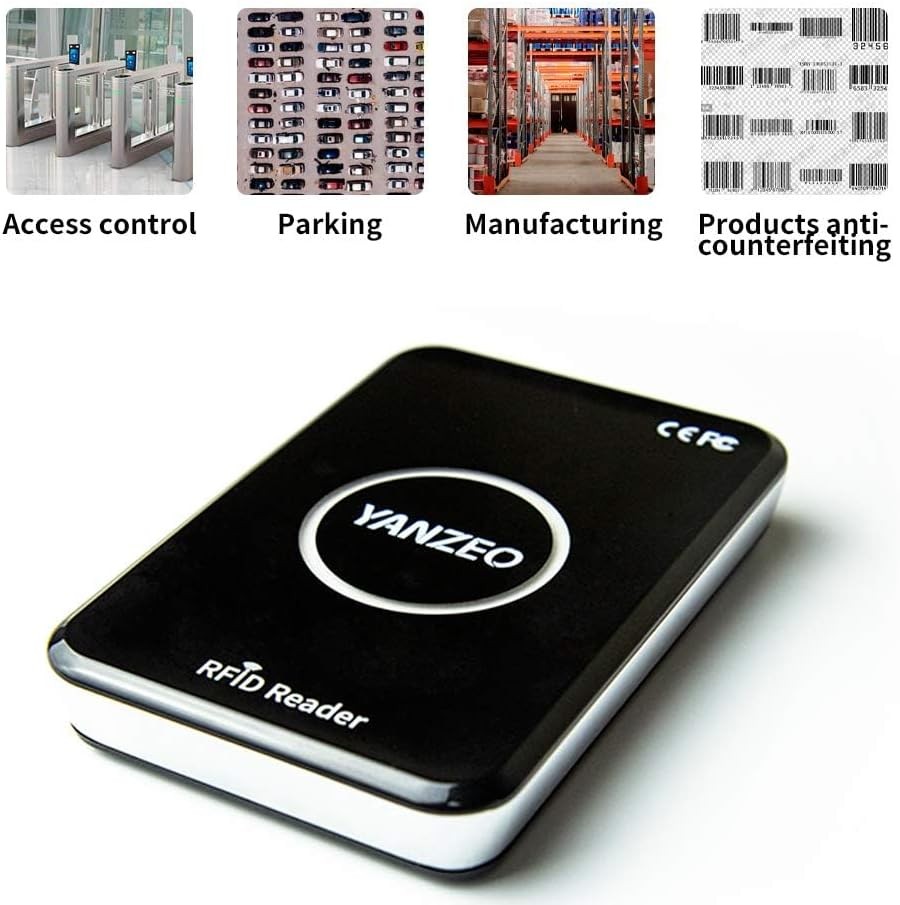

Metal Shell UHF RFID Reader Writer 860-960mhz Complie Standard of EPC C1G2 ISO 18000-6C Support Keyboard Emulation Output Support Read Write UHF Tags for Alien 9654

-Application:
Logistics and Warehouse management;
Parking control system;
Manufacturing management;
Products anti-counterfeiting detection;
Other field: club management,library,student school rolls, attendance management and swimming pool system etc. Product Features:
Small and square shape, suitable for indoor desk
Fast data read rate;
Multi-zone and multi-label reading;
Multi-protocol compatibility;
-Specification
Working frequency:：
CN standard（920～925MHz）
US standard（902～928MHz）
Other frequency standards (customized)
Protocol:：ISO18000-6C (EPC GEN2)
Operation Mode：Fixed Frequency or FHSS or Software Programmable
Antenna parameter ：
2dBi circularly polarized antenna (built-in)
Output power：12.5dBm～26dBm（Adjustable by software）

Reader&write range：
Reading Rang(Max)：0.5m（related to the card or the environment）
Writing Rang(Max)：0.2m（related to the card or the environment）

Working mode：
Active mode
Passive mode
Answer mode (Not recommend)

-Interface
Voltage：DC +5V
Data interface：
USB to virtual keyboard input
USB to virtual serial port(Customized)
Working environment
Working Temp：-20℃～55℃
Storage Temp：-40℃～85℃
Physical parameter
Size：104mm×70mm×15mm
Net/gross Weight：150g/250g

-Accessories
Cable:USB cable
SDK:Free SDK
