RAM Double Ball Yoke Clamp Mount with Round P...

RAM-B-121U-C

Genuine RAM Products!

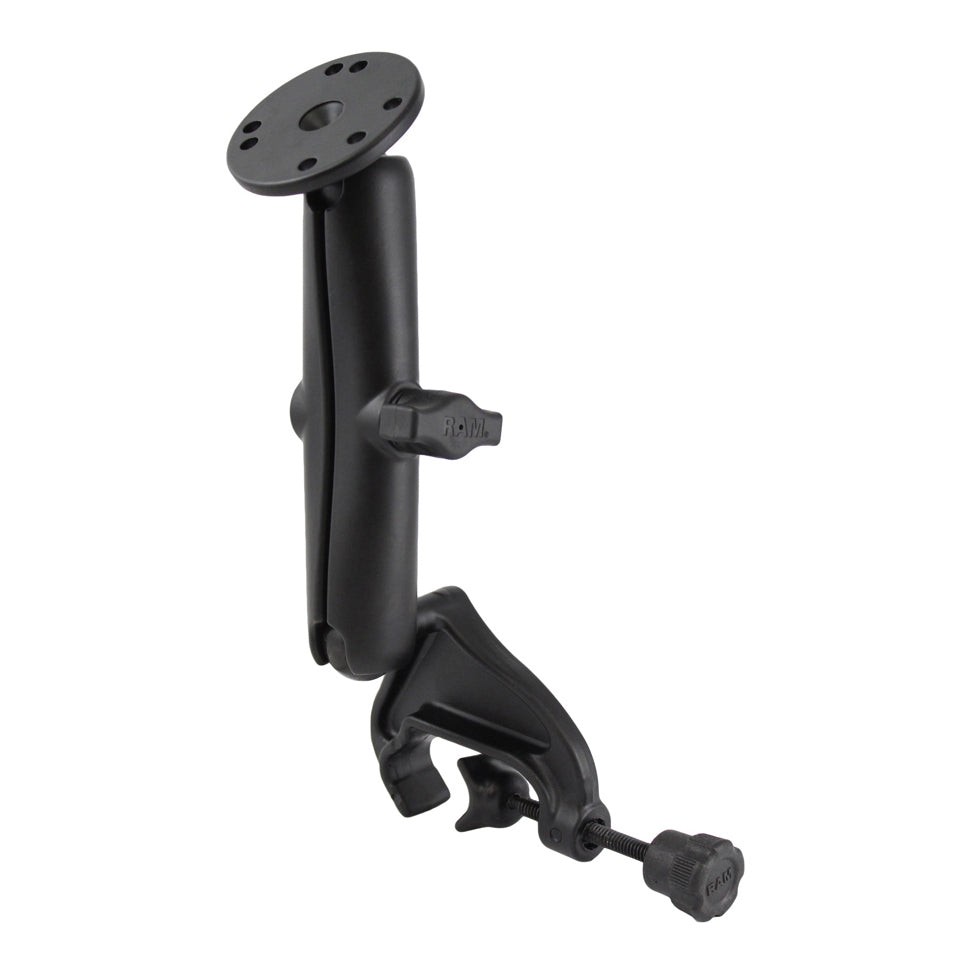

The RAM-B-121U-C consists of a yoke clamp base, LONG length double socket arm and round 2.5 INCHES base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625 INCHES to a maximum of 1.25 INCHES . The 1 INCHES rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1 INCHES diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.hardware included Assembly Hardwareclamp range .625 INCHES - 1.25 INCHES socket to socket length 5.31 INCHES hole pattern 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameterball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumpackaging type Poly BagWeight 0.75 lbhardware included
Assembly Hardwareclamp range
.625 INCHES - 1.25 INCHES socket to socket length
5.31 INCHES hole pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameterball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumpackaging type
Poly BagWeight
0.75 lb
