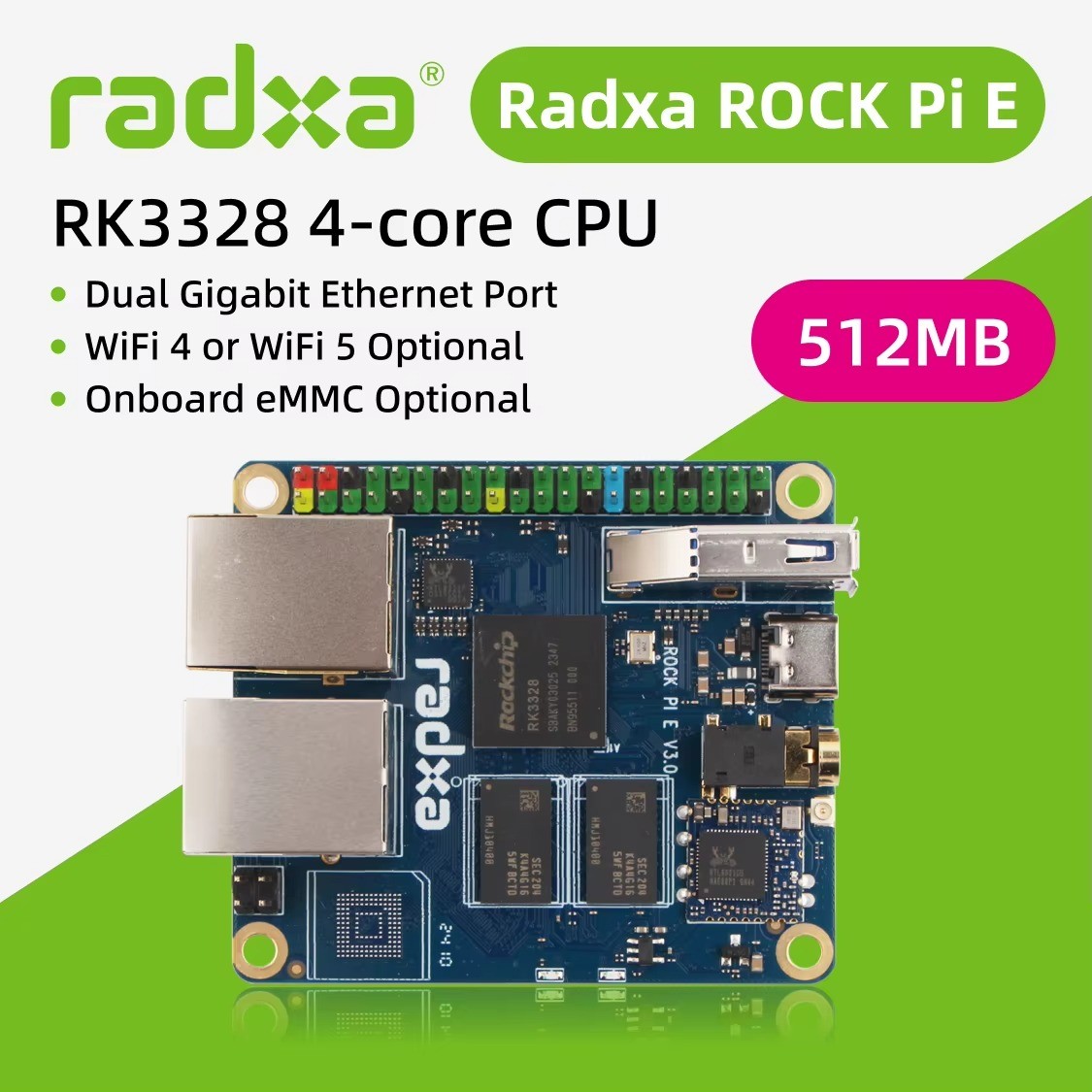

Radxa ROCK Pi E Single Board Computer
RK3328 Quad-Core • Dual Gigabit Ethernet • WiFi Optional ⚡
Choosing Your Option
This listing includes several bundle options that differ in RAM, storage and wireless capability:
- 512MB / 1GB No WiFi: Board only, wired Ethernet networking, no wireless module
- 512MB / 1GB With WiFi: Board with onboard WiFi & Bluetooth module
- 2GB 8GB With WiFi: Board with 2GB RAM, 8GB onboard eMMC storage, and WiFi & Bluetooth module
Please select the bundle that matches the RAM, storage and wireless features you need.
Key FeaturesQuad-Core Performance
Rockchip RK3328 Quad-core Cortex-A53 64-bit CPU @ 1.3GHz with Mali-450MP2 GPU for efficient edge computing tasks.
Dual Gigabit Ethernet
Two independent Gigabit Ethernet ports, one supporting PoE with an optional PoE HAT, ideal for networking and gateway projects.
Flexible Wireless
Select variants include WiFi 4 or WiFi 5 with Bluetooth 4.2 and an external antenna connector for stronger signal.
Expandable Storage
microSD card slot plus onboard eMMC or eMMC socket options depending on bundle selected.
SpecificationsModelRadxa ROCK Pi ESoCRockchip RK3328CPUQuad-core ARM Cortex-A53 64-bit @ 1.3GHzGPUMali-450MP2RAMDDR4 (512MB/1GB/2GB depending on bundle)StoragemicroSD slot, onboard eMMC or eMMC socket (depending on bundle)MultimediaH.264/H.265/VP9 decode up to 4K@60fps, H.264 encode 1080p@30fpsUSB1x USB 3.0 Host Type-A, 1x USB 2.0 OTG/Host via GPIOEthernet2x Gigabit Ethernet, 1 port PoE-capable (PoE HAT required)WirelessWiFi 4 or WiFi 5 with Bluetooth 4.2 (select bundles)GPIO1x 40-Pin GPIO HeaderForm Factor56 x 65 mmProduct ImagesFAQWhat network capability does this board have?
It features two Gigabit Ethernet ports, with one supporting Power over Ethernet when used with a compatible PoE HAT (sold separately).
Does every bundle include WiFi?
No, only the bundles labeled "With WiFi" include a wireless module. Check the variation description above before ordering.
What storage options are available?
All boards include a microSD card slot. Some bundles add onboard eMMC storage as noted in the variation name.
What can this board be used for?
It's well suited for edge computing, networking gateways, NAS, and general embedded development projects.
