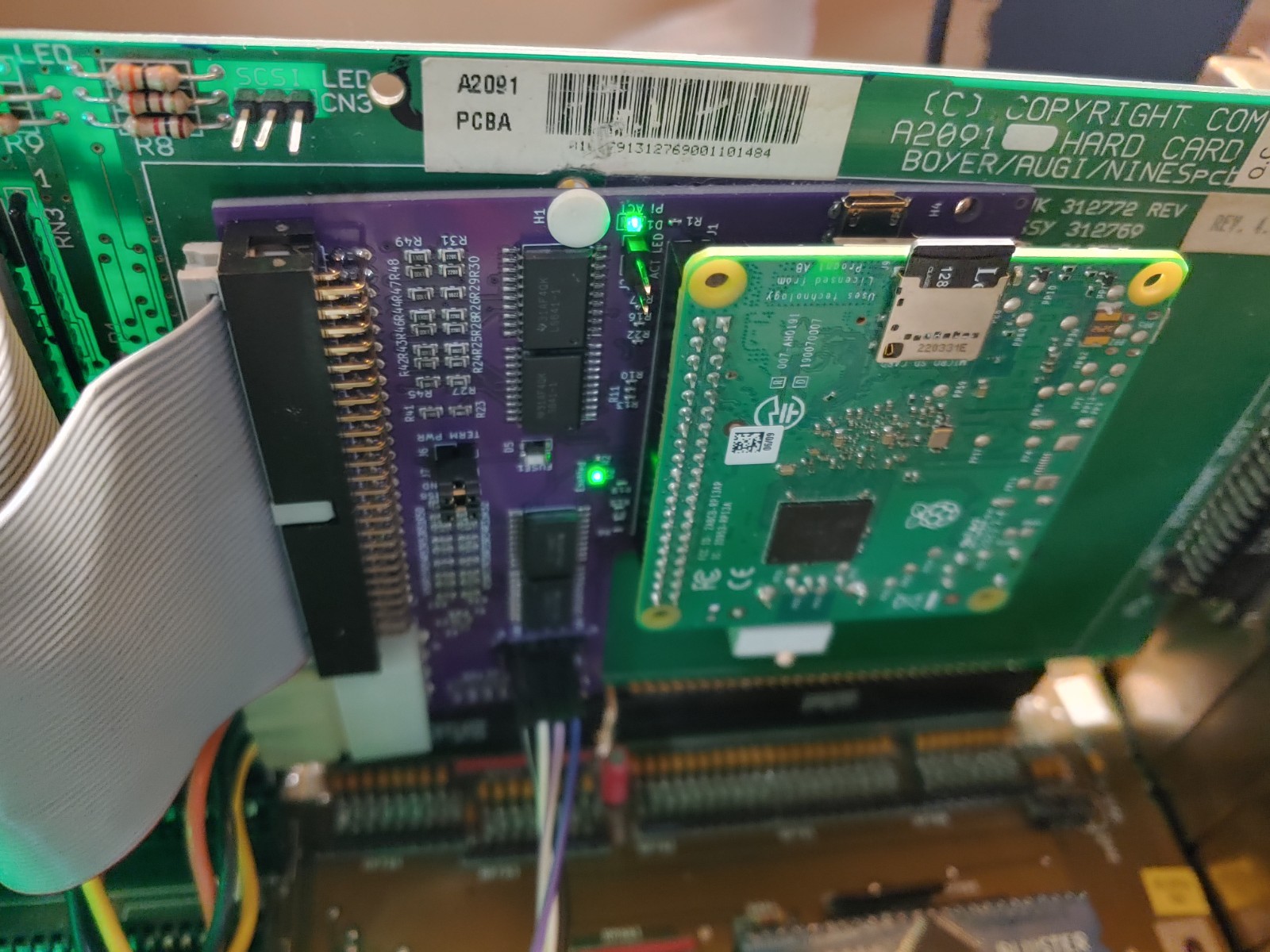

Raspberry Pi as a SCSI device

Price: US $46.00

Pi SCSI interface card with Pre-install option
This is not a simple SCSI hard drive! This goes beyond the HDD it supports emulation as many other types of SCSI devices. This can be setup from a browser on any computer you have connected to your home network. You can upload hard drive/ISO files from the browser of any computer on your home network, so you no longer need to "sneaker-net" the SD Card.
New version 1.2 PCB (white) improved thermal and more modern logic chips.

This card connects to a SCSI bus via a 50-pin SCSI connection
It is designed to be a 3.5-inch half-height form factor to be installed in place of an HDD.
It has a 40-pin connector to install a Raspberry Pi it will connect the Raspberry Pi to your SCSI bus.
Jumpers control the on-board SCSI termination.
Optional LED status screen can be shipped together:Makerfocus OLED for I2C PiSCSI Raspberry Pi 128x32 128x64 |
Instructions Included

You can install the PiSCSI software on the Raspberry Pi SD Card which will provide a web / android app access. From the web interface you can add / create SCSI devices like hard drive image files, cd-rom image files, and other storage media as well as other types of SCSI devices. Additionally, there is a beta feature to add a SCSI graphics card to output video via the Raspberry Pi's HDMI (Classic Macintosh only for now because the Mac has the driver for this).
Image files can be attached to the SCSI bus as a HDD or removable media enable most any computer with a SCSI interface to boot from and image on the Raspberry Pi's SD Card. The majority of computers with a SCSI bus are compatible, but not all computer can boot from the PiSCSI images. Works great for retro computers that have a SCSI bus like Older Servers/PC/Mac/Amiga/Atari.
We are selling the adapter board as well as full pre-installed Raspberry Pi configurations.
Look for our pre-Install Raspberry Pi with SD Card service in our other listing if you need a Raspberry Pi.Retro Pre-Installed Raspberry Pi with SD Card |
What is NOT included:
