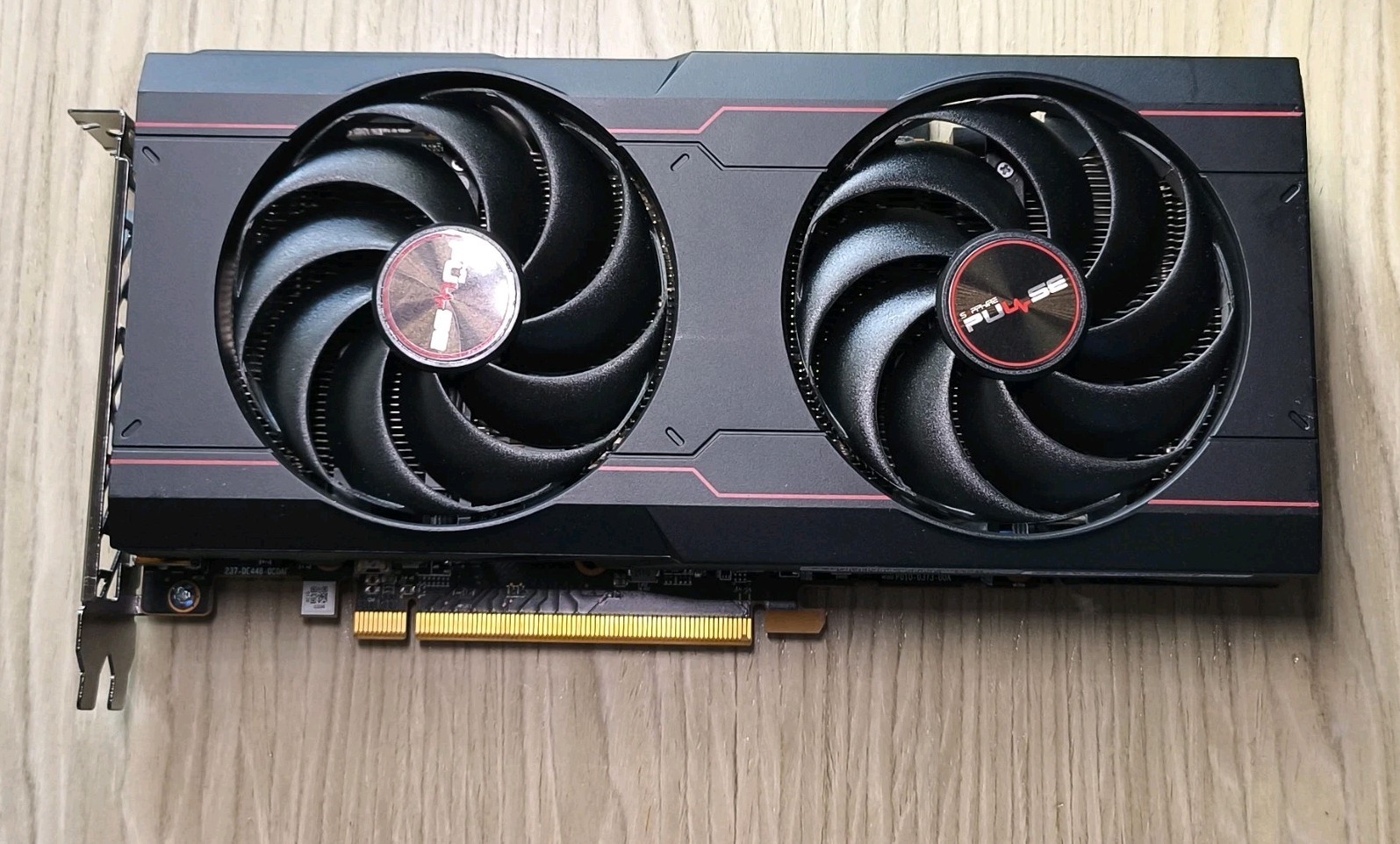

GPU AMD Radeon™ RX 6600 XT Graphics Card
7nm GPU
AMD RDNA™ 2Architecture Engine Clock
- Boost Clock: Up to 2593 MHz
- Game Clock: Up to 2382 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 2048 Infinity Cache 32MB Ray Accelerators 32 Memory Size/Bus 8GB GDDR6 Memory Clock 16 Gbps Effective Displays Maximum 4 Displays Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0 x8
Output
BIOS Support
Game Index
1080P
Sapphire Features
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- Smart Access Memory
- Infinity Cache
- 7nm GPU
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
Cooler Type
Dual Fans
Form Factor 2.2 slot, ATX
Dimension: 240(L)X 119.85(W)X 44.75(H)mm Power Consumption
OS
Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 500 Watt Power Supply
- 1 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
