SDI Switch 4 Ports - Remote Control And RS232 Controllable
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
SDI Switch 4 Ports - Remote Control And RS232 Controllable
Price: FR $162.34

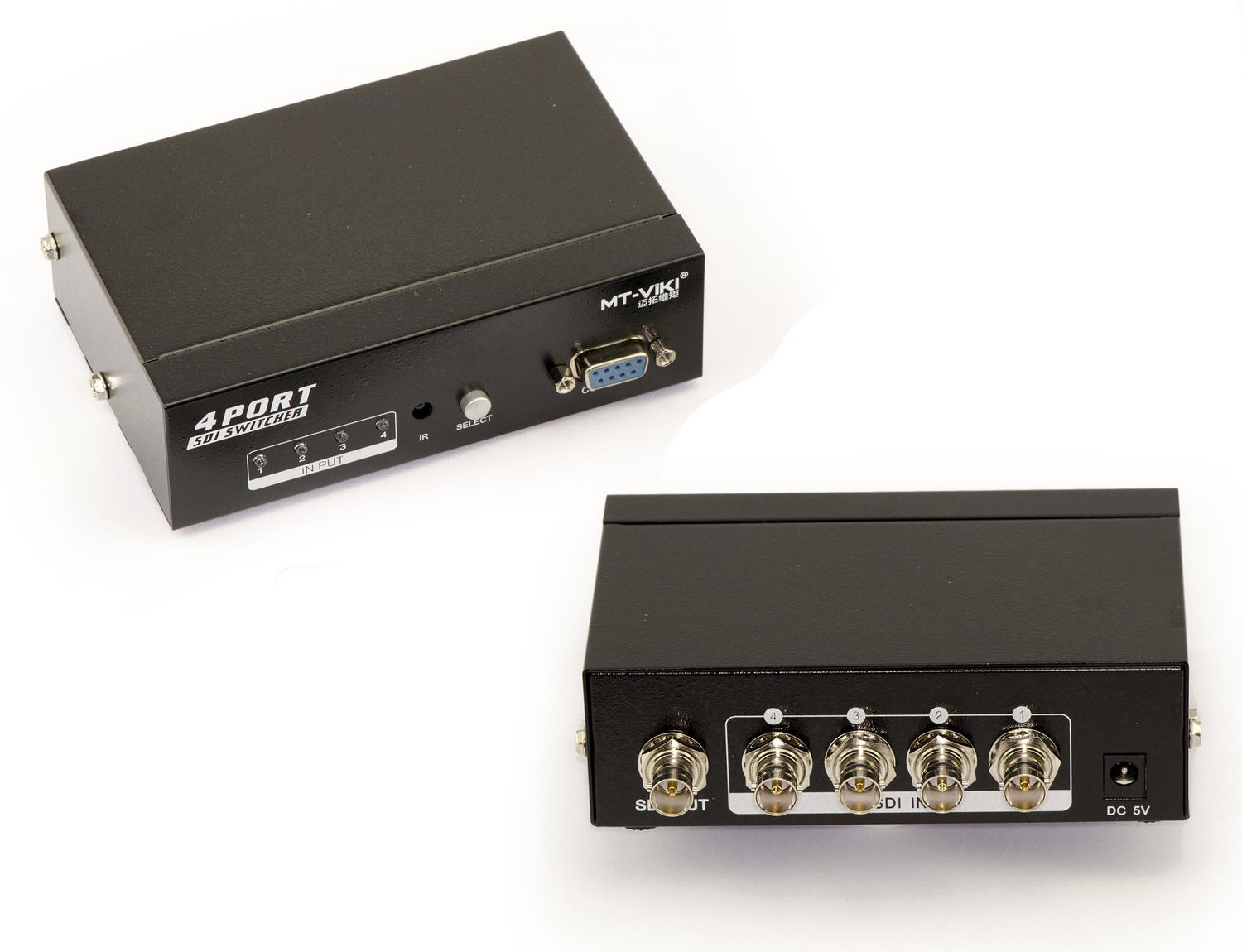

This system functions as a switch from one source among 4 possible to a single output.
Specifications:
1 Output and 4 Inputs per BNC SDI connector.
SD-SDI / HD-SDI and 3G-SDI compatible.
Switch between inputs using a front push button, infrared remote control provided, or control via RS232 port.
External 5V power supply provided.
Metal structure.
Maximum transmission distance: 300m.
Speed ​​143MB/s to 297MB/s.
Maximum supported resolution 1920x1200.
The switch is passive: it does not touch the signal, and does not amplify it.
Dimensions: 138 x 104 x 42 mm - Weight 380g.
This system functions as a switch from one source among 4 possible to a single output. Specifications: 1 Output and 4 Inputs per BNC SDI connector. SD-SDI / HD-SDI and 3G-SDI compatible. Switch between inputs using a front push button, infrared remote control provided, or control via RS232 port. External 5V power supply provided. Metal structure. Maximum transmission distance: 300m. Speed ​​143MB/s to 297MB/s. Maximum supported resolution 1920x1200. The switch is passive: it does not touch the signal, and does not amplify it. Dimensions: 138 x 104 x 42 mm - Weight 380g.
