This listing is for a used SGI Origin200 with Gigachannel XIO expansion vault. It has two R12 360Mhz MIPS processors, 512M of memory, quad port XIO ethernet card installed in the Giga chassis, and has IRIX 6.5.30 installed.
The system boots up and is in fully functional condition, with the system RTC clock still holding correct time. The CDROM works and was used to load the OS on the system. The XIO cables have a couple of issues 1) the outer plastic sheaving is brittle and is sloughing off when handled and 2) the jack screws on one of the cable end are are not straight, but otherwise can be turned to tighten the connector down.

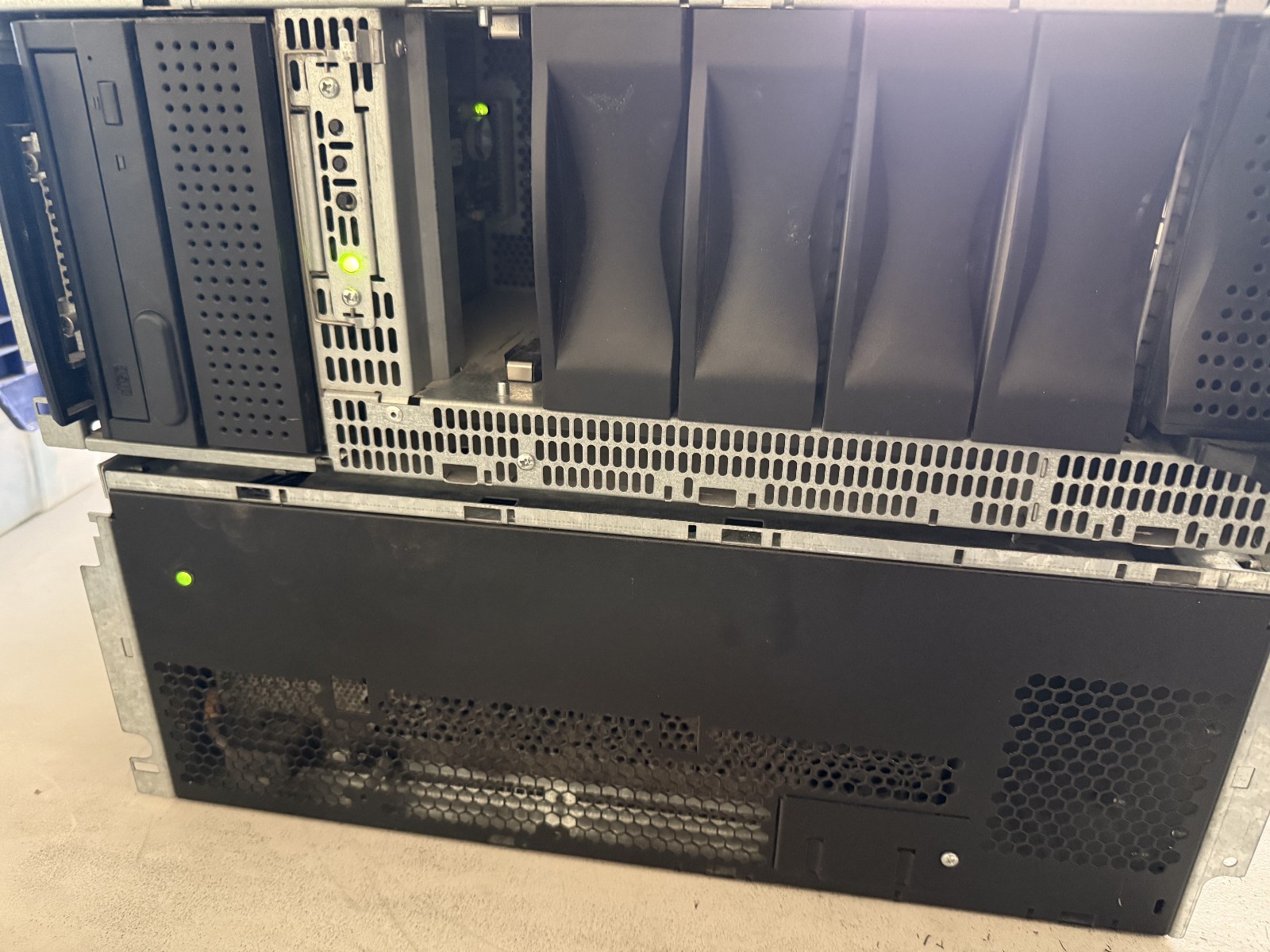

Please also see attached pictures of the unit powered up, and for overall condition and total content of the listing, Sorry no power cable or serial cable to go with the system.
As a bonus I will also include on the system drive images of IRIX 6.5.30 installation CDs, you can then burn them or copy to other media for future use. original CDs not included.
System will be packaged and shipped by Fedex Ground unless other arrangements are suggested and agreed too, E.g. send me labels for weight and dimensions for two (2) boxes (55LBS each 30L x 30W x30H) or a charge # for your Fedex shipping account. Sorry No UPS account numbers, they will not allow me to use receiver accounts.
If interested I have a few XIO to VME bus adapters and XIO Ethernet expansion cards, please see my other listing for details.
Thanks for looking
Output of system console during boot up and Hinv -vm inquiry:IP27 PROM SGI Version 6.136 built 07:37:36 PM Mar 4, 2003
using BaseIO nic
Testing/Initializing memory ............... DONE
Copying PROM code to memory ............... DONE
Discovering local IO ...................... DONE
Discovering NUMAlink connectivity .........
Local hub NUMAlink is down.
*** Local network link down
DONE
Found 1 objects (1 hubs, 0 routers) in 30370 usec
Waiting for peers to complete discovery.... DONE
No other nodes present; becoming global master
Global master is all memory ........... DONE
Checking partitioning information ......... DONE
No other nodes present; becoming partition master
Loading BASEIO prom from XBOX Flashprom.... DONEBASEIO PROM Monitor SGI Version 6.156 built 11:26:28 AM Nov 18, 2003 (BE64)
2 CPUs on 1 nodes found.
Installing PROM Device drivers ............
Base I/O Ethernet set to /dev/ethernet/ef0Walking SCSI Adapter 0 (/hw/module/1/slot/io1), (pci id 0)
1+ 2- 3- 4- 5- 6- 7- 8- 9- 10- 11- 12- 13- 14- 15- = 1 device(s)
Walking SCSI Adapter 1 (/hw/module/1/slot/io1), (pci id 1)
1- 2- 3- 4- 5- 6+ 7- = 1 device(s)Initializing PROM Device drivers .......... DONE
Checking hardware inventory ............... DONE**** System Configuration and Diagnostics Summary ****
CONFIG:
No. of NODEs enabled = 1
No. of NODEs disabled = 0
No. of CPUs enabled = 2
No. of CPUs disabled = 0
Mem enabled = 512 MB
Mem disabled = 0 MB
No. of RTRs enabled = 0
No. of RTRs disabled = 0DIAG RESULTS:
ALL DIAGS PASSED.
**** End System Configuration and Diagnostics Summary ****
Starting up the system... To perform system maintenance instead, press <Esc>
IRIX Release 6.5 IP27 Version 07202013 System V - 64 Bit
Copyright 1987-2006 Silicon Graphics, Inc.
All Rights Reserved.Setting rbaud to 19200
NOTICE: Starting failsoftd
The system is coming up.network: WARNING: IRIS's Internet address is the default.
Using standalone network mode.
WARNING: ef0: link fail - check ethernet cable
Warning: Internet Gateway web server running as root.
Use "chkconfig webface_apache off" to disable.
Starting new eventmond...
No System change detected.IRIS console login: root
IRIX Release 6.5 IP27 IRIS
Copyright 1987-2006 Silicon Graphics, Inc. All Rights Reserved.
Last login: Tue Dec 16 13:48:42 PST 2025 on ttyd1
TERM = (vt100)
IRIS 1#uname -R
6.5 6.5.30f
IRIS 2# Hinv -vm
Hinv - Command not found
IRIS 3# hinv -vm
Location: /hw/module/1/slot/MotherBoard/node
PIMM_360_4M_2P Board: barcode KVJ713 part 030-1497-001 rev H
Location: XBOX_DUALXTOWN Board: barcode LJS140 part 030-1252-001 rev F
Location: /hw/module/1/slot/io1/MotherBoard
IP29 Board: barcode KVJ204 part 030-1389-002 rev B
XBOX_EXT Board: barcode MEK712 part 030-1264-001 rev C
Location: /hw/module/1/slot/io6/menet
MENET Board: barcode MMD290 part 030-0873-005 rev B
2 360 MHZ IP27 Processors
CPU: MIPS R12000 Processor Chip Revision: 3.5
FPU: MIPS R12010 Floating Point Chip Revision: 3.5
CPU 0 at Module 1/Slot 1/Slice A: 360 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 3.5. Scache: Size 4 MB Speed 240 Mhz Tap 0x1b
CPU 1 at Module 1/Slot 1/Slice B: 360 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 3.5. Scache: Size 4 MB Speed 240 Mhz Tap 0x1b
Main memory size: 512 Mbytes
Instruction cache size: 32 Kbytes
Data cache size: 32 Kbytes
Secondary unified instruction/data cache size: 4 Mbytes
Memory at Module 1/Slot 1: 512 MB (enabled)
Bank 0 contains 512 MB (Standard) DIMMS (enabled)
Integral SCSI controller 0: Version QL1040B (rev. 2), single ended
Disk drive: unit 1 on SCSI controller 0 (unit 1)
Integral SCSI controller 1: Version QL1040B (rev. 2), single ended
CDROM: unit 6 on SCSI controller 1
IOC3/IOC4 serial port: tty1
IOC3/IOC4 serial port: tty2
IOC3/IOC4 serial port: tty3
IOC3/IOC4 serial port: tty4
IOC3/IOC4 serial port: tty5
IOC3/IOC4 serial port: tty6
IOC3/IOC4 serial port: tty7
IOC3/IOC4 serial port: tty8
IOC3 parallel port: plp1
Integral Fast Ethernet: ef0, version 1, module 1, slot io1, pci 2
Fast Ethernet: ef1, version 1, module 1, slot io6, pci 0
Fast Ethernet: ef2, version 1, module 1, slot io6, pci 1
Fast Ethernet: ef3, version 1, module 1, slot io6, pci 2
Fast Ethernet: ef4, version 1, module 1, slot io6, pci 3
Origin PCI XIO board, module 1 slot 7: Revision 4
Origin 200 base I/O, module 1 slot 1
PCI Adapter ID (vendor 0x10a9, device 0x0003) PCI slot 2
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 0
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 1
Origin MENET board, module 1 slot 6: Revision 4
PCI Adapter ID (vendor 0x10a9, device 0x0003) PCI slot 0
PCI Adapter ID (vendor 0x10a9, device 0x0003) PCI slot 1
PCI Adapter ID (vendor 0x10a9, device 0x0003) PCI slot 2
PCI Adapter ID (vendor 0x10a9, device 0x0003) PCI slot 3
IOC3/IOC4 external interrupts: 1
HUB in Module 1/Slot 1: Revision 5 Speed 90.00 Mhz (enabled)
IP27prom in Module 1/Slot n1: Revision 6.136
IO6prom on Global Master Baseio in Module 1/Slot io1: Revision 6.156
IRIS 4#
