📜 Three Ethernet Connections on One ISA Card

Offered here is an SMC EtherCard Elite16 Ultra, a 16-bit ISA Ethernet adapter from the mid-1990s.

This model is commonly identified as the SMC-E16C combo adapter and provides three different Ethernet interfaces on a single card:

• RJ45 for 10BASE-T twisted-pair networks
• BNC for 10BASE2 Thin Ethernet coax
• DA-15 AUI for an external Ethernet transceiver

Cards like this were particularly useful during the gradual migration from coaxial Ethernet to twisted-pair cabling. A computer could be moved between several different network environments without replacing its network adapter.

⚙️ The SMC UltraChip Generation

At the center of the card is the SMC 83C790QF UltraChip, which integrates the principal Ethernet and system-interface functions required by the adapter.

The Elite16 Ultra was a more highly integrated successor to SMC’s earlier multi-chip ISA network cards. It retained the broad media compatibility of the older designs while reducing the number of separate controller components on the board.

Visible hardware includes:

• SMC UltraChip 83C790QF controller
• 16-bit ISA host interface
• 16 KB network buffer memory
• RJ45, BNC and AUI external connectors
• Onboard configuration circuitry
• Unpopulated optional boot-ROM position
• Status markings and configuration table printed on the PCB

🔧 Identification and Technical Details

• Manufacturer: Standard Microsystems Corporation
• Product Family: EtherCard Elite16 Ultra
• Common Model: SMC-E16C
• PCB Number: 60-600455-005
• PCB Revision: Rev. A
• Interface: 16-bit ISA
• Maximum Network Speed: 10 Mbps
• Controller: SMC UltraChip 83C790QF
• Network Ports: RJ45, BNC and AUI
• Network Address: 0000C0 5A64BA
• Board Serial: D2C939020
• SMC Copyright Date: 1993

The exposed option-ROM position is not populated. This is normal for a card intended for conventional operating-system driver loading rather than diskless network booting.

🖥️ Intended Uses

This adapter is appropriate for:

• DOS and early Windows networking
• Novell NetWare clients
• 386, 486 and early Pentium restorations
• Mixed-media vintage Ethernet networks
• Thin Ethernet demonstrations
• AUI transceiver projects
• Period-correct workstation builds
• Historical hardware collections

Installation in a vintage computer requires the appropriate SMC driver and system-resource configuration for the intended operating system.

📦 What Is Included

Included:

• One SMC Elite16 Ultra ISA Ethernet card
• Original full-height mounting bracket
• All permanently installed components shown in the photographs

Not included:

• Drivers or software
• Printed documentation
• RJ45 or coaxial cable
• BNC T-connector or terminators
• AUI transceiver
• Original packaging
• Computer or other accessories

💗 Physical Condition

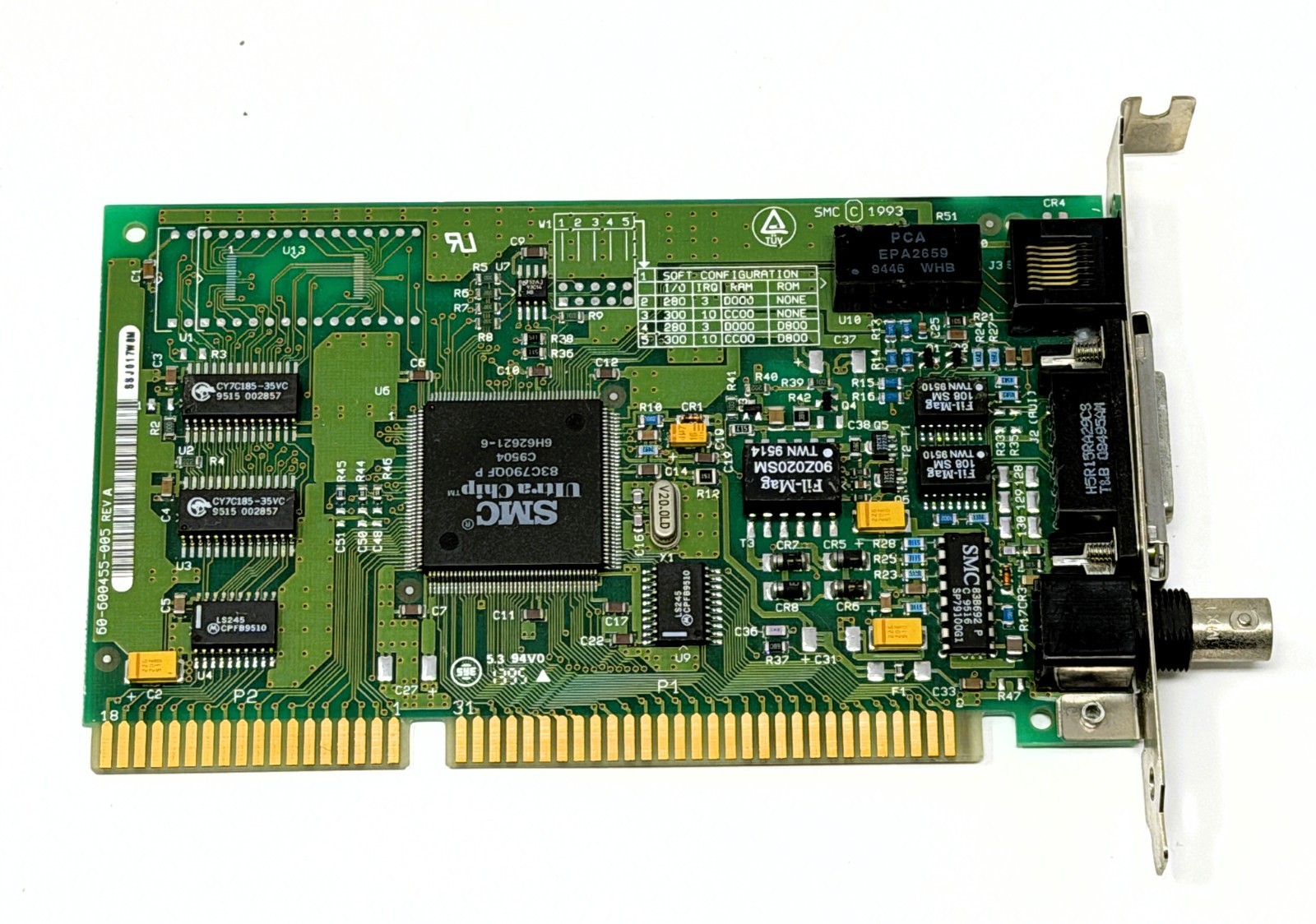

The circuit board appears clean and complete, with the controller, memory, transformer modules, configuration components and external connectors present. The gold ISA edge contacts show normal insertion wear.
