PLEASE BE SURE TO READ THROUGH TO THE BOTTOM OF THE PAGE BEFORE PURCHASE
IITEM DESCRIPTION:
SUPERMICRO

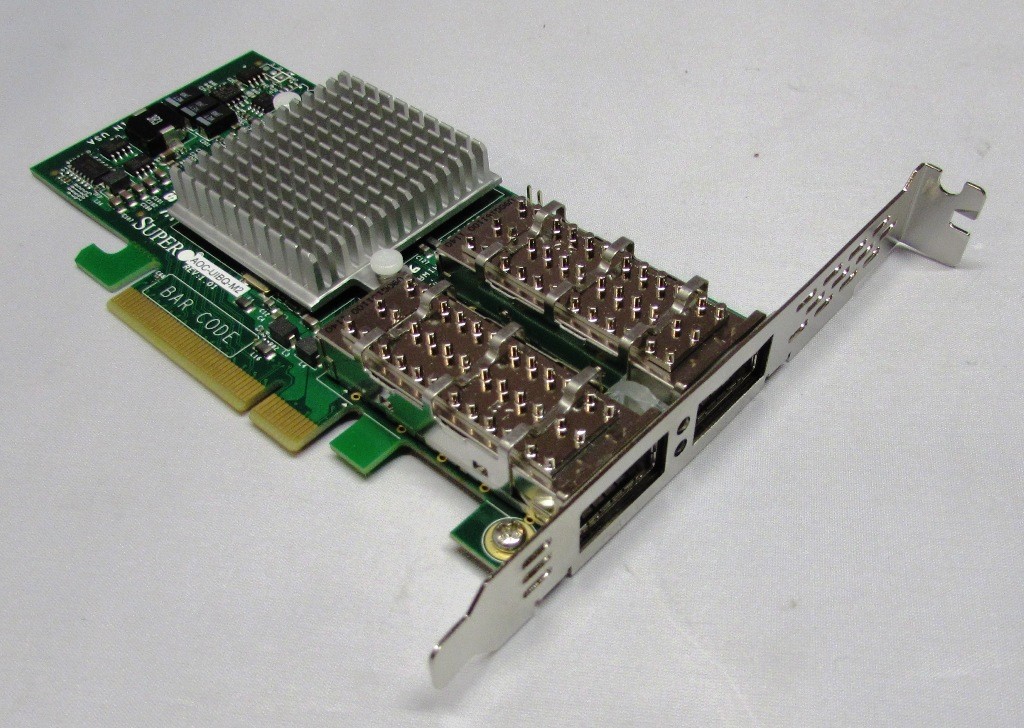

AOC-UIBQ-M2BULK PACKED AS SHOWNDual-port InfiniBand QDR UIO Adapter Card with PCI-E 2.0 and Virtual Protocol Interconnect™ (VPI) AOC-UIBQ-m2 InfiniBand card with Virtual Protocol Interconnect (VPI) provides the highest performing and most flexible
interconnect solution for performance-driven server and storage clustering applications in Enterprise Data Centers, High-
Performance Computing, and Embedded environments. Clustered databases, parallelized applications, transactional services
and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced
completion time and lower cost per operation. AOC-UIBQ-m2 simplifies network deployment
by consolidating clustering, communications, storage, and management I/O and
by providing enhanced performance in virtualized server environments.
Key Features
•
Virtual Protocol Interconnect™ (VPI)
•
1us MPI ping latency
•
Selectable 40Gb/s InfiniBand or 10GbE port
•
PCI Express 2.0 (up to 5GT/s)
•
CPU offload of transport operations
•
End-to-end QoS and congestion control
•
Hardware-based I/O virtualization
•
TCP/UDP/IP stateless offload
•
Fibre Channel encapsulation (FCoIB or FCoE)
Specifications
•
InfiniBand:
- Mellanox® ConnectX-2 IB QDR
- Dual InfiniBand QSFP ports
- 40Gb/s per port
- RDMA, Send/Receive semantics
- Hardware-based congestion control
- Atomic operations
•
Interface:
–
PCI Express 2.0 x8 (5GT/s)
–
UIO low-profile half-length form factor
•
Connectivity:
- Interoperable with InfiniBand or 10GbE switches
- QSFP connector
- 7m+ (40Gb/s) of passive copper cable
- External optical media adapter and active cable support
•
Hardware-based I/O Virtualization:
- Single Root IOV
- Address translation and protection
- Multiple queues per virtual machine
- VMware NetQueue support
- PCI-SIG IOV compliant
•
CPU Offloads:
- TCP/UDP/IP stateless offload
- Intelligent interrupt coalescence
- Compliant to Microsoft RSS and NetDMA
•
Storage Support:
- T10-compliant Data Integrity Field support
- Fibre Channel over InfiniBand or Ethernet
•
Operating Systems/Distributions:
- Novell SLES, RedHat, Fedora and others
- Microsoft® Windows Server 2003/2008/CCS 2003
- OpenFabrics Enterprise Distribution (OFED)
- OpenFabrics Windows Distribution (WinOF)
- VMWare ESX Server 3.5, Citrix XenServer 4.1
•
Operating Conditions:
–
Operating temperature: 0°C to 55°C
•
Physical Dimensions:
–
Card PCB dimensions: 14.29cm (5.63in) x 6.35cm (2.50in) (LxW)
–
Height of end brackets: standard – 12cm (4.725in),
low-profile – 7.94 (3.13in)
•
Optional Accessories:
–
CBL-0417L: 39.37” (100cm) QSFP to QSFP InfiniBand QDR PBF
–
CBL-0325L: 78.74” (200cm) QSFP to QSFP InfiniBand QDR
–
CBL-0446L: 118.11” (300cm) QSFP to QSFP InfiniBand QDR
–
CBL-0422L: 196.85” (500cm) QSFP to QSFP InfiniBand QDR
–
CBL-0467L: 7M QSFP to QSFP InfiniBand QDR Passive Copper Cable
–
CBL-0468L: 15M QSFP to QSFP InfiniBand QDR Fiber Active Optical Compliant 6/6, Pb Free
Supported Platforms
–
Supported Motherboards: All Supermicro UIO Motherboards
–
Supported Servers: All Supermicro UIO Servers ITEM CONDITION AND NOTES:

• THIS ITEM IS NEW, SEE NOTES

• PLEASE DOUBLE CHECK YOUR COMPATIBILITY BEFORE YOU offer
• THE TERMS NEW, USED, ETC, REFER TO CONDITION, NOT PRODUCT AGE

• INTERNAL CODE: 26210 BS8B
