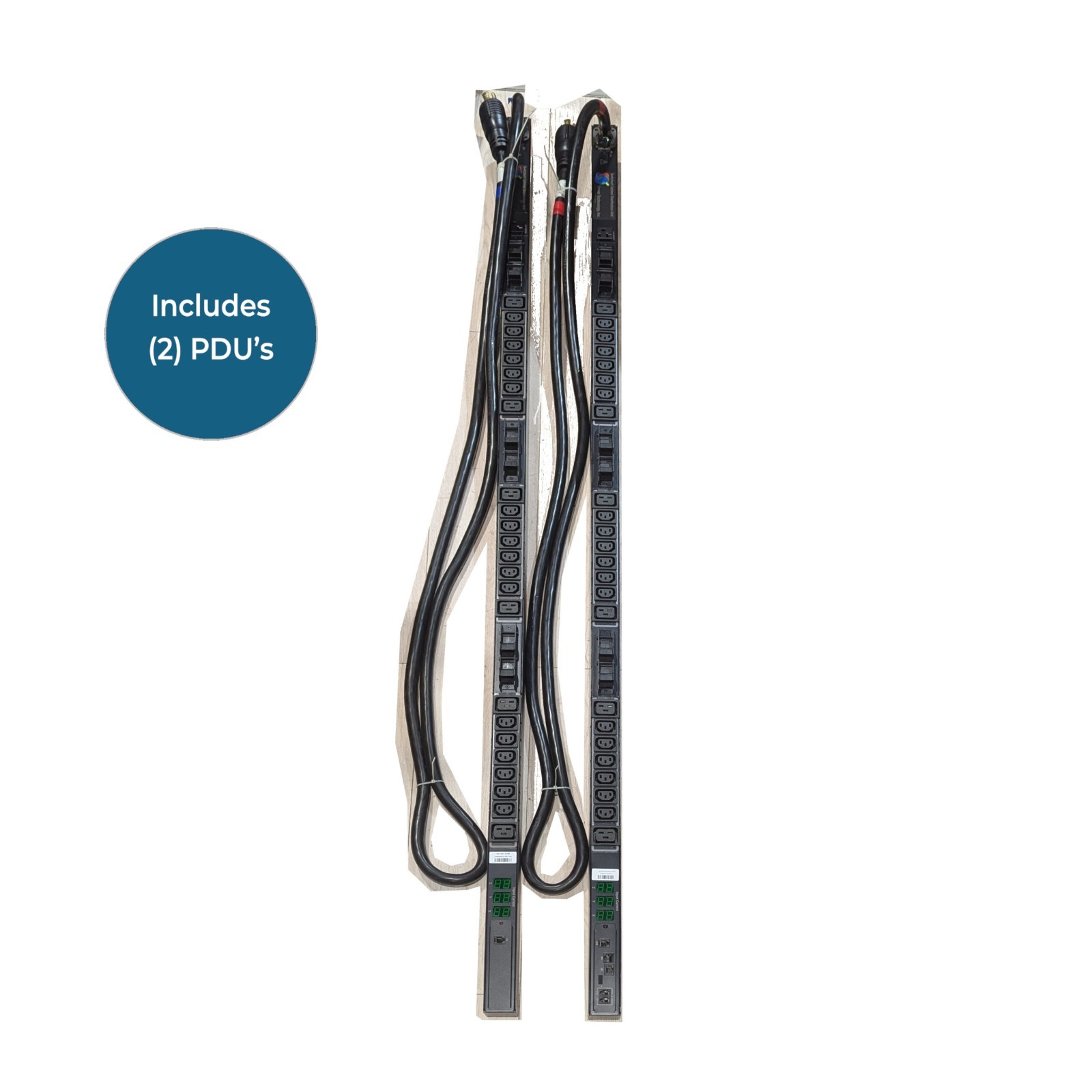

This is for one pair of used Server Technology Switched PDUs 208V 3-Phase 25-Outlets (50 Total Outlets) L21-30P. This is a master PDU CW-24VYM311A1 and a link PDU CX-24VYM311A1. These are full-featured Server Tech PDU’s with power monitoring, separate branch power metering and switching capabilities from one IP address. - Includes two Server Technology PDUs: one CW-24VYM311A1 and one CX-24VYM311A1. Both are Switched PDUs 120/208V 3-Phase 25-Outlets L21-30P as pictured above. Also includes a link cable and button mount hardware. No other parts or accessories are included.
- These PDUs are in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.
Technical Specifications - Input Power Capacity (kW): 8.6
- Input Plug Type: NEMA L21-30P
- Input Current (A): 30
- Input Current Rated (A): 24
- Input Nominal Voltage (V): 120/208
- Input Phase: 3-Phase
- Outlets (per PDU):
- (18) IEC C13 (208V)
- (6) IEC C19 (208V)
- (1) NEMA 5-20R Control: Individual outlet remote on/off switching. Cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
- Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
- PIPS (Per Input Power Sensing): Accurately measures Active Power, Apparent Power, Energy k-Wh, Power Capacity, and Power Capacity Used using the network interface. See the aggregate current draw, in Amps, locally using the onboard LED.
- Branch Circuit Protection: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
Product InformationManufacturer: Server Technology
MPN: CW-24VYM311A1, CX-24VYM311A1
Shipping Weight: 40 lbs.
Shipping Dimensions: 76 x 6 x 6 Inches Store PoliciesShipping- Orders are generally shipped within 1 business day of receipt of cleared payment.
