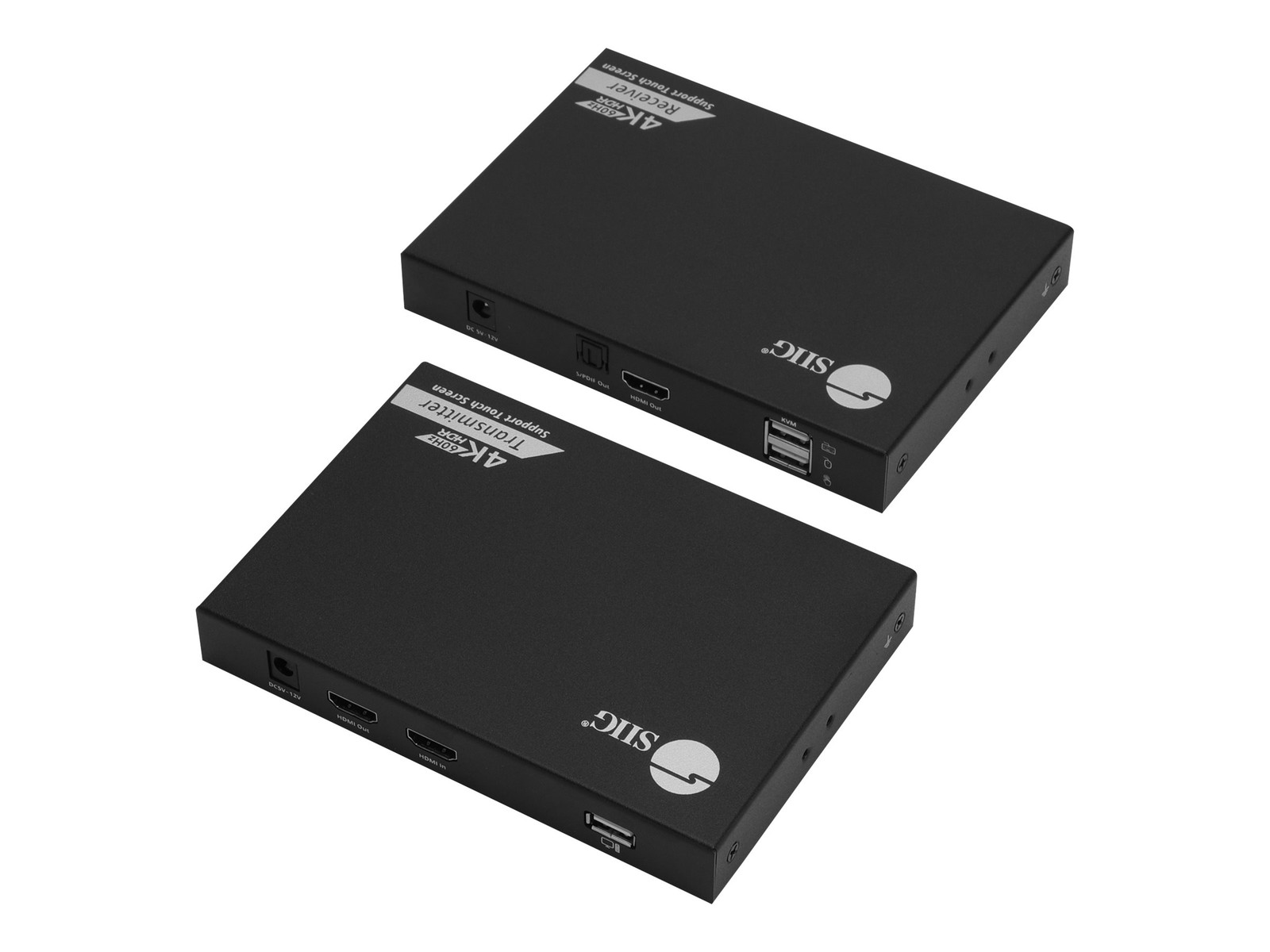

SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support (ce-h27811-s1) SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support (ce-h27811-s1)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 1 x Transmitter 1 x Receiver 2 x Power Adapter USB 2.0 Type-A to Type-A cable Mounting ears & Screw kit User manual
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Features
Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency
Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system
Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
The transmitter's HDMI loop-out allows for local monitoring of the extended display
The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
protection, surge protection, ESD protection
Plug and play, no driver installation required
High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Multiple Connectivity Ports
Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)
Applications
Lecture hall
Educational facilities
Multimedia education
Home theater
Restaurant
Shopping center
Digital signage
Meeting room
Trade show
Library
Show room
Church Compliant with HDCP 2.2 Resolution:
Up to 3840x2160 at 60Hz, 2160p / 1080p / 1080i / 720p / 480p HDMI Audio format:
PCM 2/5.1-ch, Dolby/DTS 5.1 Toslink Audio format:
PCM 2ch, Dolby/DTS 5.1 Transmission Distance:
4K at 60Hz: Up to 40m via Cat5 cable
4K at 60Hz: Up to 70m via Cat6/6a/7 cable Product:
Housing material:
Metal Color:
Black Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop-out
1x 4-pin USB 2.0 Type-A, Female, for Host connection
1x 8-pin, RJ45, Output
1x Reset button
1x Power jack Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse or touch screen for control
1x 8-pin, RJ45, Input
1x S/PDIF Toslink, Audio
1x Reset button
1x Power jack Power adapter:
Input:
100-240V / 50-60Hz Output:
DC 5V/2A UL listed:
E335801 / Level: VI Environmental conditions:
Operating temperature:
14 to 140oC
Storage temperature:
-4 to 158oC
Relative humidity:
0% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Interface
Transmitter unit (TX):
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 4-pin, USB 2.0 Type-A, Female (for Host)
1x 8-pin, RJ45 (output)
1x Reset button
1x DC power jack (5V/2A) Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
2x 4-pin, USB 2.0 Type-A, Female (for keyboard and mouse/touch screen)
1x 8-pin, RJ45 (input)
1x S/PDIF audio, Toslink (output)
1x Reset button
1x DC power jack (5V/2A) Package contents
4K 60Hz HDR HDMI KVM Over Cat6 Extender with SPDIF and Touch Screen Support
Power adapter (x2)
USB 2.0 Type-A to Type-A cable
Mounting ears and Screw kit
User manualItem Dimension (L inchxW inchxH inch)
15 x 4 x 7
Weight
4.00 lb
Warranty Information
NA SpecificationPower DescriptionInput Voltage Range100-240VFrequency
Input Voltage
Physical CharacteristicsTransmitter Weight (Approximate)12.32 ozReceiver Width6.02"Receiver Height0.87"Product ColorBlackReceiver Depth4.15"Transmitter Depth4.15"Receiver Weight (Approximate)12.32 ozTransmitter Height0.87"Transmitter Width6.02"WarrantyLimited Warranty2 YearInterfaces/PortsNumber of USB Ports3Network (RJ-45)YesNumber of HDMI Ports3USBYesHDMIYesNumber of Network (RJ-45) Ports2VideoMaximum Video Resolution3840 x 2160Graphic Mode4KGeneral InformationBrand NameSIIGMarketing Information Multiple Connectivity Ports Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A) Applications Lecture hall Educational facilities Multimedia education Home theater Restaurant Shopping center Digital signage Meeting room Trade show Library Show room Church Product TypeKVM ExtenderProduct Name4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen SupportManufacturerSIIG, IncManufacturer Part NumberCE-H27811-S1TitleProduct TitleSIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support (CEH27811S1)Technical InformationNumber of Remote Users Supported1Number of Computers Supported1Maximum Operating Distance229.66 ftDevice TypeKVM ExtenderConnectivity TechnologyWiredNumber of Local Users Supported1 Shipping
