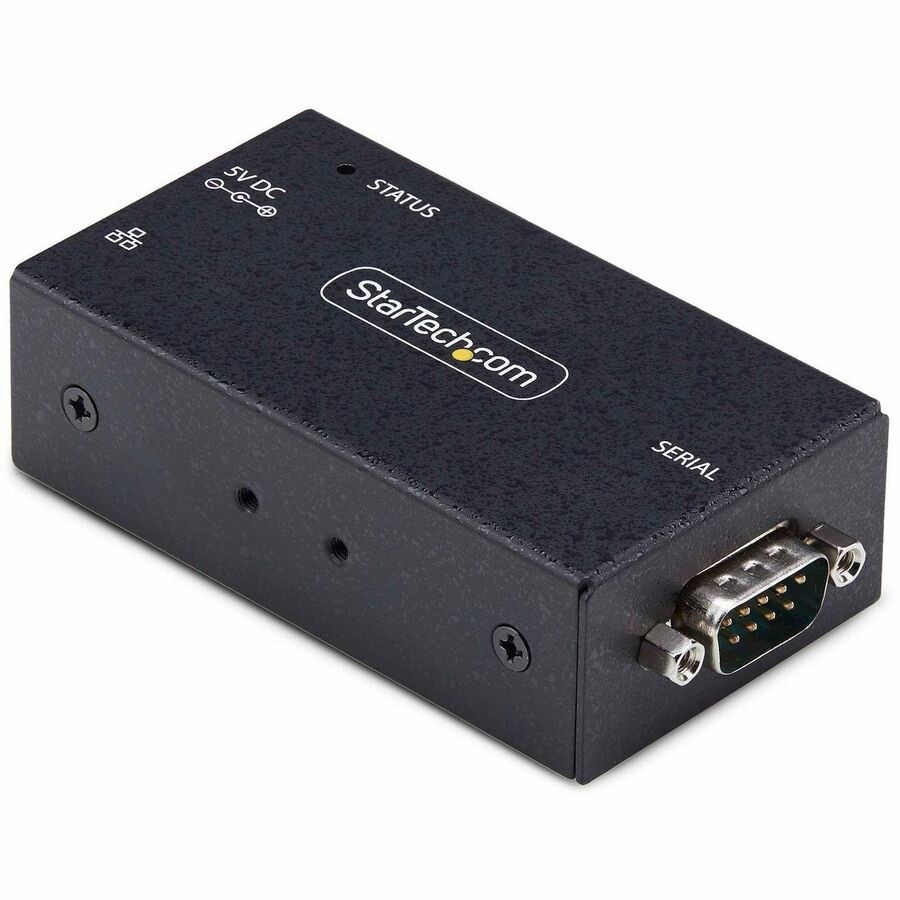

StarTech 1-Port Serial to Ethernet Adapter, RJ45 LAN to DB9 Serial Converter Brand: StarTech UPC: 0065030905978 Mfr Part #: I13SERIALETHERNET
General Information
This 1-port serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.
Configuration and Management
The serial over LAN adapter is highly customizable to support various applications. It can be used to remotely control an RS232 device directly. Alternatively, two serial over LAN adapters can be connected to each other on the same network to create a full end-to-end RS232 serial connection. The Windows-based companion software, Device Server Manager (DSM), enables the creation of virtual COM ports, allowing seamless migration of existing serial applications to the new virtual COM ports. The DSM provides a unified management experience, allowing multiple serial-to-Ethernet converters to be managed simultaneously. The converter also features a versatile web-based interface for remote management, making it compatible in mixed OS environments.
Flexible Installation and Rugged Chassis
The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x 25x 81.9mm) is ideal for environments where space is at a premium.
Ethernet and Power Options
The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.
More from the Manufacturer
Technical InformationConnectivity Technology:Wired
Media & PerformanceMedia Type Supported:Twisted Pair
Network & CommunicationEthernet Technology:Fast EthernetNetwork Standard:10/100Base-T
Power DescriptionInput Voltage:120 V ACInput Voltage:230 V ACInput Voltage Range:100V AC to 240V ACPower Consumption:15 WInput Current:480 mAPlug/Connector Type:Type M
Physical CharacteristicsColor Family:BlackProduct Color:BlackProduct Material:SteelForm Factor:DIN Rail MountableForm Factor:Wall (Approximate):5.50 oz
Device Server 1 x Din Rail Kit 1 x Mounting Bracket 4 x Mounting Bracket Screws 1 x Universal Power Adapter 1 x Quick-Start GuideCertifications & Standards:
TAA Compliant:Yes
