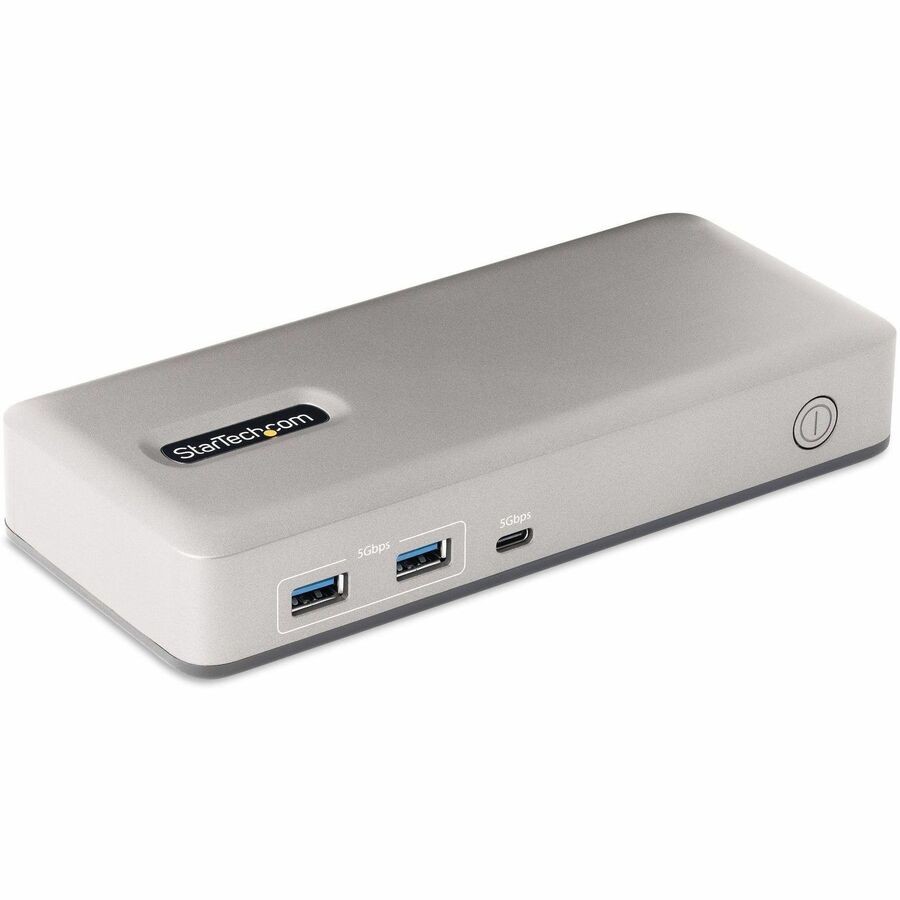

StarTech Dual-Monitor USB-C Docking Station DisplayPort & HDMI/VGA 101NUSBCDOCK Brand: StarTech UPC: 0065030893985 Mfr Part #: 101NUSBCDOCK

General Information

This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.

High-Performance Dual Video via MST

The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.

Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video Monitor

Resolution

Dual 1.4 (Intel 11th Generation and Higher)

1x 4K 60Hz

2x 2560 x 1440p 60Hz

DisplayPort 1.2 (Intel 10th Generation and Below) 1x 4K 30Hz 2x 1920x1200/1080p 60Hz

Notes:

• All specified resolutions support RGB color representation (4:4:4)
• Computers with discrete graphics controllers may achieve higher performance
• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration

Full-Featured Docking Station with Built-in 7-Port USB Hub

Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:

• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.

More from the Manufacturer

Technical InformationConnectivity Technology:WiredDevice Supported:MouseDevice Supported:MonitorDevice Supported:Desktop PCDevice Supported:NotebookDevice Supported:KeyboardFeatures:Power Delivery Pass-throughNumber of Displays Supported:2Screen Mode Supported:4K @ 60HzScreen Mode Supported:Full HDScreen Mode Supported:WUXGAScreen Mode Supported:QHDSupported Resolutions:3840 x 2160Supported Resolutions:1920 x 1080Supported Resolutions:1920 x 1200Supported Resolutions:2560 x 1440Maximum Data Transfer Rate:640 MB/s

Power DescriptionMaximum Power Supply Wattage:135 WPower Source Type:Power Adapter

Physical CharacteristicsColor Family:GrayProduct Color:Space GrayHeight:1.20"Width:7.30"Weight (Approximate):9.70 oz

Docking Station

1 x 3.3ft [1m] USB-C Host Cable (Screw Locking)

1 x Universal Power Adapter (North America)

1 x Quick-Start Guide

Kensington Security Slot:YesCompatibility:

Compatible with USB-C and Thunderbolt 3/4 computers

Environmentally Friendly:YesEnvironmental Certification:EU RoHSEnvironmental Compliance:Restriction of Hazardous Substances (RoHS) 2Environmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)TAA Compliant:YesEnd of Life Manual Availability:YesREACH free of SVHC:Yes
