StarTech PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper IP-30 (248821) StarTech PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper IP-30 (248821)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
WEEE Statement: RoHS Declaration URL: Contents: Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block
Environmental Certification: EU RoHS
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

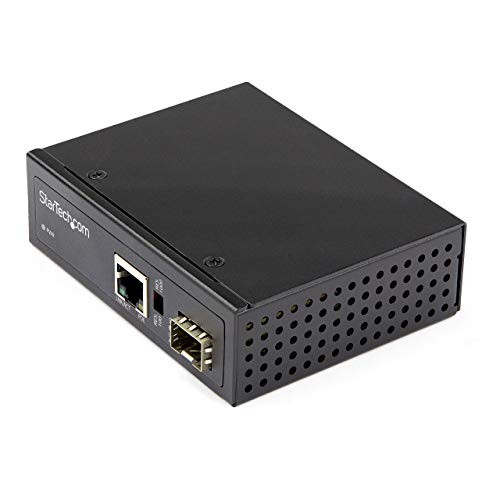

PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C (IMC1GSFP60W)
- EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
- TECH SPECS: 1 Gbps | 1 x Open SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af / IEEE 802.3at (60W) | 10/100/1000Mbps | LFP | 16K Jumbo Frames | DIN or Wall Mount Hardware Included | 2 yr warr
- ROBUST DESIGN: Industrial Gigabit Media Converter w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp -40C to 75C
- OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
- FLEXIBLE POWER: Can be hardwired using terminal block (48-56VDC) power or powered using a standard Type-N barrel wall adapter (not included)
- Brand: StarTech
- Item model number: IMC1GSFP60W
- Item Weight: 13.4 ounces
- Package Dimensions: 8.31 x 6.38 x 2.52 inches
- Manufacturer: STARTECH.COM
This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector
It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.
Designed for Harsh Environments
This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.
OPERATING TEMPERATURE STORAGE TEMPERATURE
-40C to 75C
-40C to 85C
-40F to 167F -40F to 185F Up to 60 Watts of Power for Connected Devices
60 watts of available support a wide range of PD devices such as:
- Pan-and-Tilt Cameras
- Lighting
- Cameras
- Sensors
- WiFi Access Points
Open SFP Slot to Leverage Your Current Infrastructure
The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.
Dual Power Inputs
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC1GSFP60W is backed by a 2-year warranty and free lifetime technical support.
Package Contents:
- Transceiver/Media Converter
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
SpecificationPower DescriptionPlug/Connector Type
- Terminal Block (3 Wire)
- Type N
Power SourcePoE+Power Consumption60 WPhysical CharacteristicsForm Factor
- DIN Rail Mountable
- Wall Mountable
Weight (Approximate)5.40 Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesTotal Number of Ports1Number of PoE (RJ-45) Ports1I/O ExpansionsTotal Number of Expansion Slots1Number of SFP Slots1Expansion Slot TypeSFP (mini-GBIC)General InformationBrand Name
