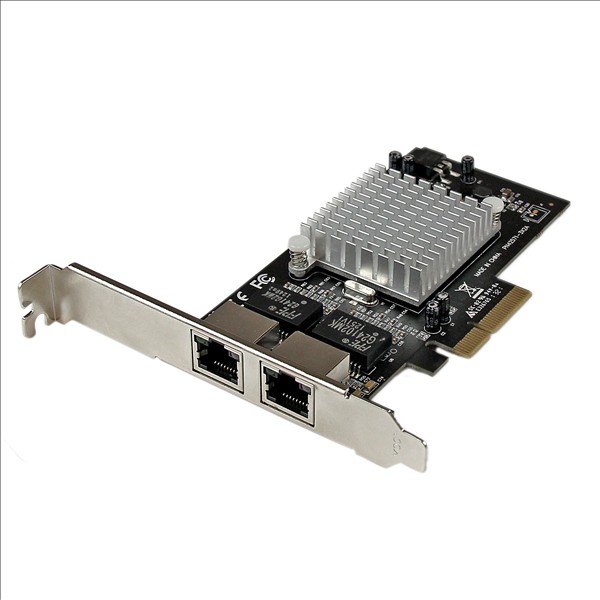

StarTech Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC (ST2000SPEXI) StarTech Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC (ST2000SPEXI)

International Customers: All electronic products are packaged for sale in the US with US voltage.

End of Life Manual Availability: Yes

WEEE Statement: RoHS Declaration URL: Contents: 2 Port Network Card 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual

Environmental Certification: EU RoHS

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

System Requirements: Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.4.x to 4.11.x LTS versions only

Device Supported: Computer

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

This 2-port GbE network card is based on the high-performance Intel I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.

Also useful for virtualization applications or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
Intel - I350-AM2
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
PCI Express Base Specification 2.1
Interface
RJ45 (Gigabit Ethernet)
Port Style
Integrated on Card
Ports
2Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
2 - RJ-45 FemalePerformance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Supported Protocols
IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging)Software
OS Compatibility
Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)Indicators
LED Indicators
2 - 10/100/1000 Mbps Indicator
2 - Link / ActivitySpecial Notes / Requirements
System and Cable Requirements
Available PCI Express x4 or higher (x8, x16) slot

Included in Package
1 - 2 Port Network Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction ManualWeight
0.29
Item Dimension
6.57 x 5.51 x 1.10
Warranty Information
2 years SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)2.80 Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesTotal Number of Ports2Host InterfacePCI Express x4USBNoSerial PortNoEthernet AUINoPoE (RJ-45) PortNoXJACKNoNumber of Network (RJ-45) Ports2General InformationBrand Name
