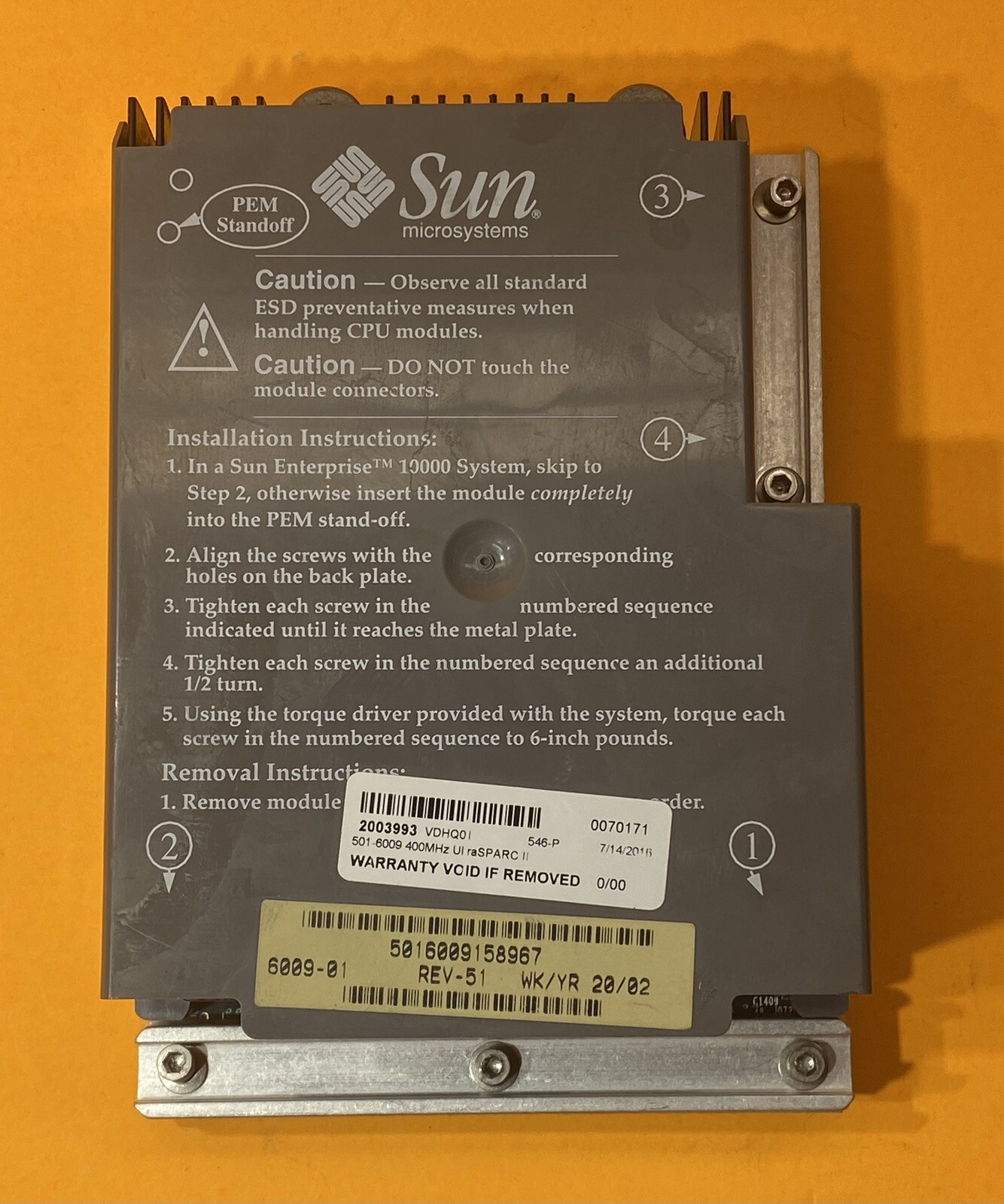

400MHz UltraSPARC II Module
Part# 501-6009Option# X2580AManufacturer: Sun MicrosystemsDescription: 400MHz UltraSPARC II CPU ModuleMHZ: 400MHxCache: 8MB Cache (Sapphire Black)

• Mirrored Data SRAM
• Mirrored Tag SRAM

Condition: Pulled from a working environment.
Compatible Sun Microsystems Servers:

• Enterprise 3000
• Enterprise 3500
• Enterprise 4000
• Enterprise 4500
• Enterprise 5000
• Enterprise 5500
• Enterprise 6000
• Enterprise 6500
• Enterprise 10000

Manufacturer Notes:

1. The minimum operating system is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
2. Solaris 2.5.1 patch >=103640-27 and 2.6 patch >=103640-27 are required.
3. OBP 3.2 Version 21 is required. OBP 3.2 Version 29 is recommended.

Compatibility Notes:

1. Clock 501-2975 is not supported.
2. The E6000 and E6500 require Clock 501-5365 for a 5:1 clock ratio.
3. The E3x00, E4x00, and E5x00 require Clock 501-5365 for a 5:1 clock ratio if 84MHz system boards are installed.
4. Clock 501-4286 or 501-4946 is supported in the E3x00, E4x00, and E5x00 if the centerplane and all system boards are 100MHz.
5. Clock 501-5365 is supported if 84MHz or 100MHz system boards are installed in the E3x00, E4x00, and E5x00.

E1000 Compatibility Notes:

1. The minimum SSP release is 3.3.
2. Patch >=108885-09 (SSP 3.3) or >=110304-05 (SSP 3.4) is required.
3. (No patching is required for SSP 3.5.)
4. Mixing module speeds within a system is supported.
5. A minimum of one processor per System Board is required.
6. Set the clock multiplier to 2:1 with the command:

• sys_clock -p two-to-one -s -i 100000000
• Caution: Using sys_clock with command line options can crash a running system.

1. System Boards 501-4347, 501-4786, and 501-4903 are not compatible with the 400MHz UltraSPARC module.
2. System Boards 501-5240, 501-5278, 501-5279, and 501-5693 are compatible with the 400MHz UltraSPARC module.


Ships SAFE & Fast!!!
