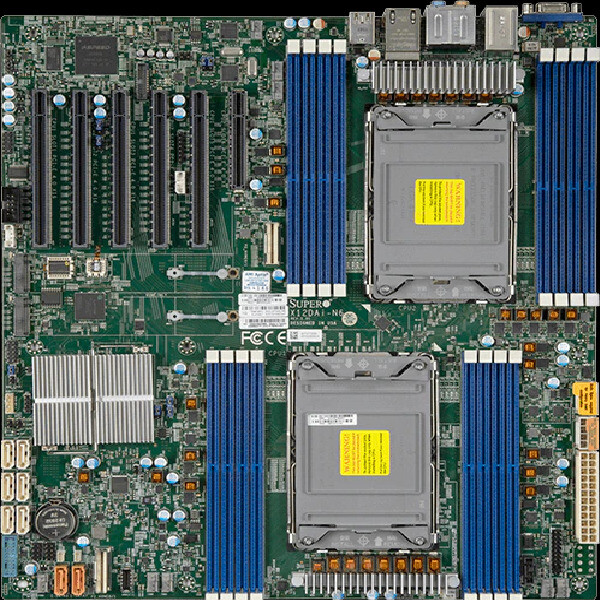

Specifications Product SKUs MBD-X12DAI-N6 - 12" x 13" (30.48cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; font-size: 11px !important; color: rgb(93, 139, 96) !important;">
- 3rd Gen Intel® Xeon® Scalable processors
- Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
System Memory Memory Capacity - 16 DIMM slots
- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
- Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
- Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.
Memory Type - 3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices Chipset SATA - Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI Audio Graphics Network Controllers - Dual LAN with Intel® i210 Gigabit Ethernet Controller
Input / Output USB - 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
- 2 USB 3.2 Gen2 port(s) (1 via header; 1 rear type A)
Video Output - 1 VGA D-Sub Connector port(s)
Serial Port DOM - 2 SuperDOM(Disk on Module) power connector
TPM Expansion Slots PCI-E - 1 PCI-E 4.0 x8,
- 5 PCI-E 4.0 x16
M.2 - M.2 Interface: 2 PCI-E 4.0 x4, RAID 0 & 1
- Form Factor: 2280/22110
- Key: M-Key
System BIOS BIOS Type - AMI class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; font-size: 11px !important; color: rgb(93, 139, 96) !important;">
- SuperDoctor® 5,SUM,SPM, Intel® Node Manager,SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
PC Health Monitoring Voltage - VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, CPU, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, 8 -fan status
LED - Power LED
- BMC/IPMI Heartbeat LED
- CPU / System Overheat LED
Temperature - Monitoring for CPU and chassis environment
- CPU thermal trip support
FAN - 8x 4-pin fan headers (up to 8 fans)
- PWM fan speed control
- Status monitoring for speed control
- 8x fans with tachometer monitoring
Other Features - WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
Operating Environment Operating Temperature Range - 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range - 8% - 90% (non-condensing)
Non Operating Relative Humidity Range - 5% - 95% (non-condensing)
 |
|
