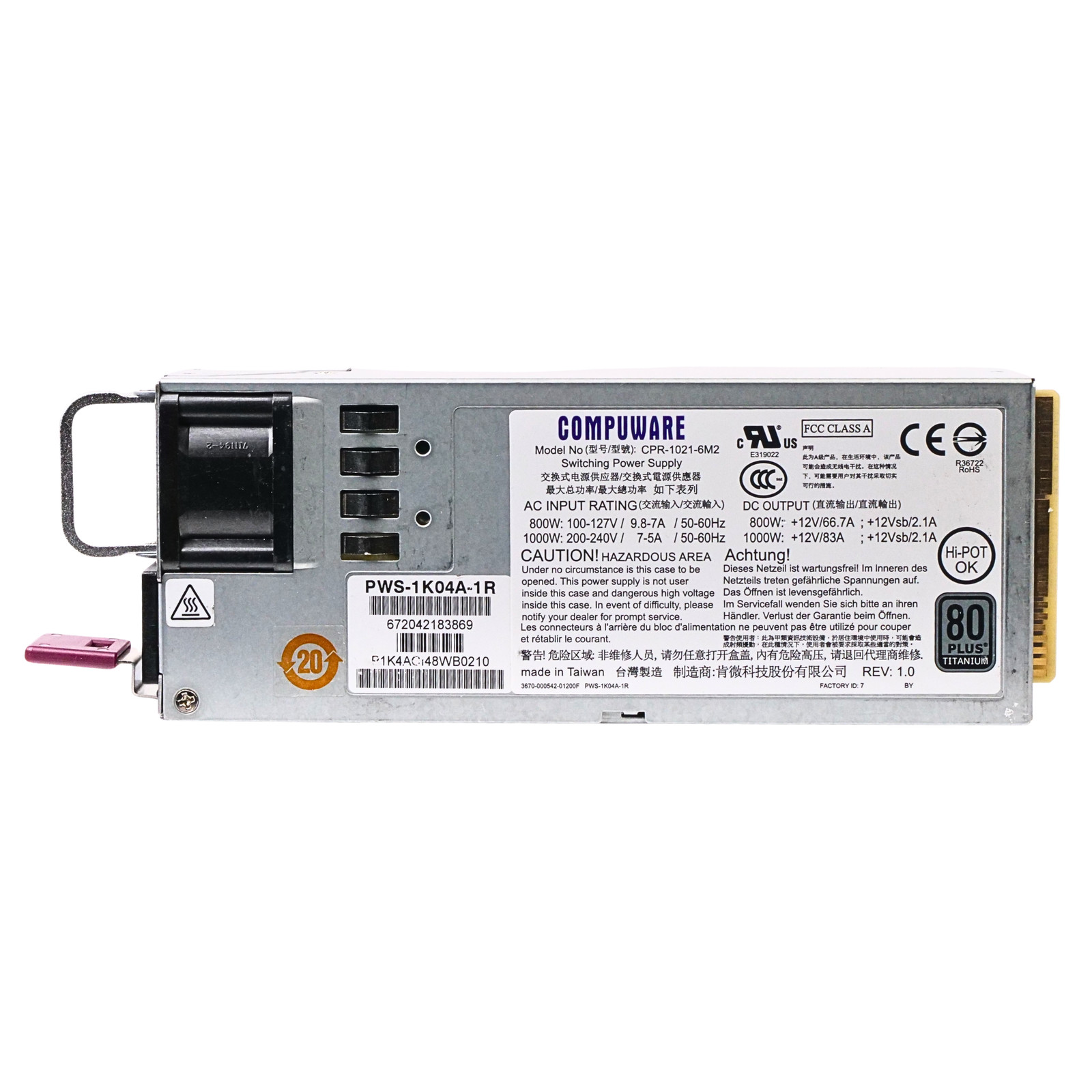

Supermicro 1000W PWS-1K04A-1R 1U Rackmount Redundant Switching Power Supply

ADDITIONAL INFORMATION

Technical Specifications

Brand

Supermicro Model PWS-1K04A-1R Form Factor / Type 1U Rackmount Part Number CPR-1021-6M2, PWS-1K04A-1R Product Condition Seller Refurbished Warranty Information 30 Day Seller Product Description

Key Features

• Model: Supermicro PWS-1K04A-1R -- A PSU designed for 1U server systems.
• Input Requirements: Requires a 200–240V AC input voltage at 7–5A to achieve the full 1000W output power.
• 12V Rail Performance: Capable of a maximum output current of 83A on the +12V rail when operating at 1000W.
• Efficiency: 80 PLUS Titanium certified, achieving up to 96% efficiency at peak loads to minimize power waste.
• Connector Type: Uses a 25-pair Gold Finger card edge connector for direct connection to compatible server backplanes.
• Standby Power: Provides 12Vsb @ 2.1A for system management and standby functions.
• Form Factor: Slim design engineered for 1U server systems with dimensions of 73.5mm x 40mm x 185mm.
• Management Features: Includes PMBus support for real-time remote monitoring of power consumption and status.
• Reliability: Rated for a Mean Time Between Failure (MTBF) of over 100,000 hours and features an LED indicator for status monitoring.
• NOTE: This power supply does not include power cord.

Best Fit Applications

• High-Density Rackmount Servers: Optimized for 1U server systems where space is limited but high power density is required for compute-heavy tasks.
• GPU-Accelerated Computing: Ideal for systems housing power-hungry accelerators or multiple graphics cards that demand high amperage on the 12V rail.
• Mission-Critical Data Centers: Perfect for environments requiring 24/7 availability; its hot-swappable design allows for hardware replacement without interrupting system operations.
• Enterprise-Grade Storage Arrays: Suited for high-bay storage enclosures and JBODs (Just a Bunch Of Disks) that require consistent, redundant power for large drive arrays.
• Energy-Efficient IT Infrastructures: A top choice for "green" data centers aiming for Titanium-level efficiency (up to 96%) to drastically reduce heat output and electricity overhead.
• Network Communications Equipment: Fits high-end networking switches and routers that utilize a Gold Finger card edge interface for power distribution.
• Edge Computing Nodes: Provides the reliability and remote monitoring capabilities (PMBus) necessary for managing hardware in decentralized or remote locations.
