Add-on Card

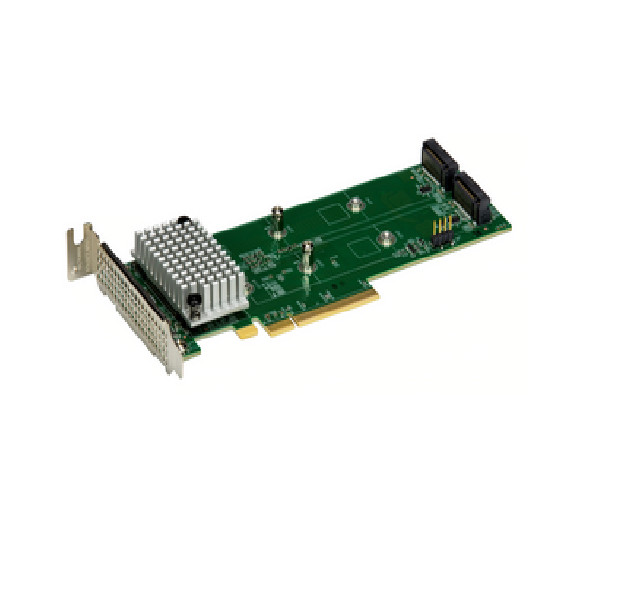

Supermicro Low Profile 2x PCIe Gen 4 Hybrid NVMe/SATA M.2 RAID Boot Storage Adapter

The Supermicro MegaRAID Low Profile AOC-SLG4-2H8M2 is a PCIe Gen 4.0 x8 M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express 4.0 technology. AOC-SLG4-2H8M2 supports adjustable stand-offs in 22110, 2280, & 2242 M.2 SSD form factors with RAID 0 and RAID 1.
This product is only available through Supermicro.
Compatible with Supermicro motherboards only.
Product Note:

• Supermicro AOC-SLG4-2H8M2, as a Gen 4 NVMe M.2 adapter, is carrying its new accessory - a uniquely designed heatsink - when being compared to the previous gen product - AOC-SLG3-2H8M2 - for Gen 3 NVMe M.2 and without heatsink. While adopting 22x110mm M.2s, it is suggested to ONLY select the M.2s qualified by referencing each system's AVL with AOC-SLG4-2H8M2.

• AOC-SLG4-2H8M2 carries SAS 3808 chipset, a 12Gb/s SAS/SATA controller. Thus NVMe M.2s populated on the carrier are exposed with SAS addresses and recognized as SATA devices or SAS drives by OS or BIOS.

• When a system with IOMMU or VT-d enabled is configured with an iMR controller-based storage add-on-card/module, please make sure the system BIOS supports either IVMD (AMD-based system) or RMRR (Intel-based system) for iMR controller to work seamlessly with host memory.
  Also see statements from Broadcom in its user guide, section “HII Configuration Utility”.

• AOC-SLG4-2H8M2 supports both SATA/NVMe M.2.
  With StorCLI cmd "storcli /call show all" executed, it should report the follows on slot numbering:
  #0 and #4 for SATA M.2
  #0 and #1 for NVMe M.2

• To build VD (virtual drive) / RAID, state of the drives in RAID volume must be "Unconfigured Good'.
  Users can force and disable "JBOD" mode and change drive state to "Unconfigured Good" for M.2s installed on AOC-SLG4-2H8M2 by executing the following StorCLI command.
  storcli /cx/ex/sx set good force

  To enable/disable "JBOD Mode" for AOC-SLG4-2H8M2 or on any of the SAS 3816/3808 based controller AOC, you can either:

  • executing the StorCLI commands below; or
    storcli /cx set JBOD=on
    storcli /cx set JBOD=off
  • operating through BMC IPMI WebGUI > Storage Monitoring > Controller View > Enable JBOD; or

  • operating under BIOS > Controller > Advanced (Controller Properties) > JBOD Mode

Key Features

• Broadcom 3808 SAS controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1.
• Broadcom SAS3808 I/O RAID Controller
• x8 PCIe Gen4 Host interface
• Dual M-Key sockets (for 2x M.2 SSD)
• Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors
• Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
• Supports RAID 0 and RAID 1
• Support MCTP over PCIe/ I2C
• Support BMC-enabled management
• Support secure erase
• Support hardware secure boot
• Support on-board LEDs for SSD Activity and Status
• UEFI Configuration utility
• OS Support: Windows, Linux, and VMWare
• Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded)
• Thermal operating range: System dependent (55°C or higher w/ enough airflow)
