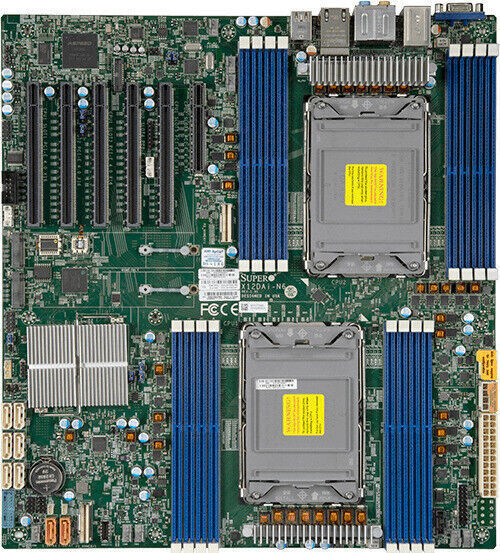

Package include: 1x Supermicro X12DAI-N6 Motherboard 2x intel Xeon Gold 5317 CPU 12Cores 24Threads 3.00GHz Processors CPU EssentialsProduct Collection3rd Generation Intel® Xeon® Scalable ProcessorsCode NameProducts formerly Ice LakeVertical SegmentServerProcessor Number5317Lithography10 nmUse ConditionsServer/EnterpriseCPU SpecificationsTotal Cores12Total Threads24Max Turbo Frequency3.60 GHzProcessor Base Frequency3.00 GHzCache18 MBIntel® UPI Speed11.2 GT/sMax # of UPI Links3TDP150 WSupplemental InformationMarketing StatusLaunchedLaunch DateQ2'21Servicing StatusBaseline ServicingEmbedded Options AvailableYesMemory SpecificationsMax Memory Size (dependent on memory type)6 TBMemory TypesDDR4-2933Maximum Memory Speed2933 MHzMax # of Memory Channels8Intel® Optane™ Persistent Memory SupportedYesECC Memory SupportedYesExpansion OptionsScalability2SPCI Express Revision4Max # of PCI Express Lanes64Package SpecificationsSockets SupportedFCLGA4189TCASE84°CPackage Size77.5mm x 56.5mmAdvanced TechnologiesIntel Speed Select Technology – Core PowerYesIntel Speed Select Technology – Turbo FrequencyYesIntel Deep Learning Boost (Intel® DL Boost) on CPUYesIntel Speed Select Technology - Base FrequencyYesHigh Priority Cores4High Priority Core Frequency3.20 GHzLow Priority Cores8Low Priority Core Frequency2.80 GHzIntel Resource Director Technology (Intel RDT)YesIntel® Speed Shift TechnologyYesIntel® Turbo Boost Technology2Intel® Hyper-Threading TechnologyYesIntel® Transactional Synchronization ExtensionsYesIntel® 64YesInstruction Set ExtensionsIntel SSE4.2 |Intel AVX |Intel AVX2 |Intel AVX-512# of AVX-512 FMA Units2Intel® Volume Management Device (VMD)YesSecurity & ReliabilityIntel® Crypto AccelerationYesIntel® Platform Firmware Resilience SupportYesIntel® Total Memory EncryptionYesIntel® AES New InstructionsYesIntel® Software Guard Extensions (Intel® SGX)Yes with Intel® SPSDefault Maximum Enclave Page Cache (EPC) Size for Intel® SGX64 GBIntel® Trusted Execution TechnologyYesExecute Disable BitYesIntel® Run Sure TechnologyYesMode-based Execute Control (MBEC)YesIntel® Virtualization Technology (VT-x)YesIntel® Virtualization Technology for Directed I/O (VT-d)YesIntel® VT-x with Extended Page Tables (EPT)Yes Motherboard Product SKUsMBD-X12DAI-N6Physical StatsForm Factor - 12" x 13" (30.48cm x 33.02cm)
ProcessorCPU - 3rd Gen Intel® Xeon® Scalable processors
- Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
System MemoryMemory Capacity - 16 DIMM slots
- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
- Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type - 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipset SATA - Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI Audio Graphics - 1 ASPEED AST2600 BMC port(s)
Network Controllers - Dual LAN with Intel® i210 Gigabit Ethernet Controller
Input / OutputUSB - 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
- 2 USB 3.2 Gen2 port(s) (1 via header; 1 rear type A)
Video Output - 1 VGA D-Sub Connector port(s)
Serial Port DOM - 2 SuperDOM(Disk on Module) power connector
TPM Expansion SlotsPCIe - 1 PCIe 4.0 x8,
- 5 PCIe 4.0 x16
M.2 - M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1
- Form Factor: 2280/22110
- Key: M-Key
System BIOSBIOS Type ManagementSoftware - Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),SuperDoctor® 5,Super Diagnostics Offline,KVM with dedicated LAN,IPMI 2.0
SecurityHardware - Trusted Platform Module (TPM) 2.0
PC Health MonitoringVoltage - VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, CPU, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, 8 -fan status
LED - Power LED
- BMC/IPMI Heartbeat LED
- CPU / System Overheat LED
Temperature - Monitoring for CPU and chassis environment
- CPU thermal trip support
FAN - 8x 4-pin fan headers (up to 8 fans)
- PWM fan speed control
- Status monitoring for speed control
- 8x fans with tachometer monitoring
Other Features - WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
Operating EnvironmentOperating Temperature Range - 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range - 8% - 90% (non-condensing)
Non Operating Relative Humidity Range 5% - 95% />
|
|
