TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that WAS PULLED FROM A WORKING ENVIRONMENT and is GUARANTEED WORKING
The unit has been reset to the factory default settings. See console log below.

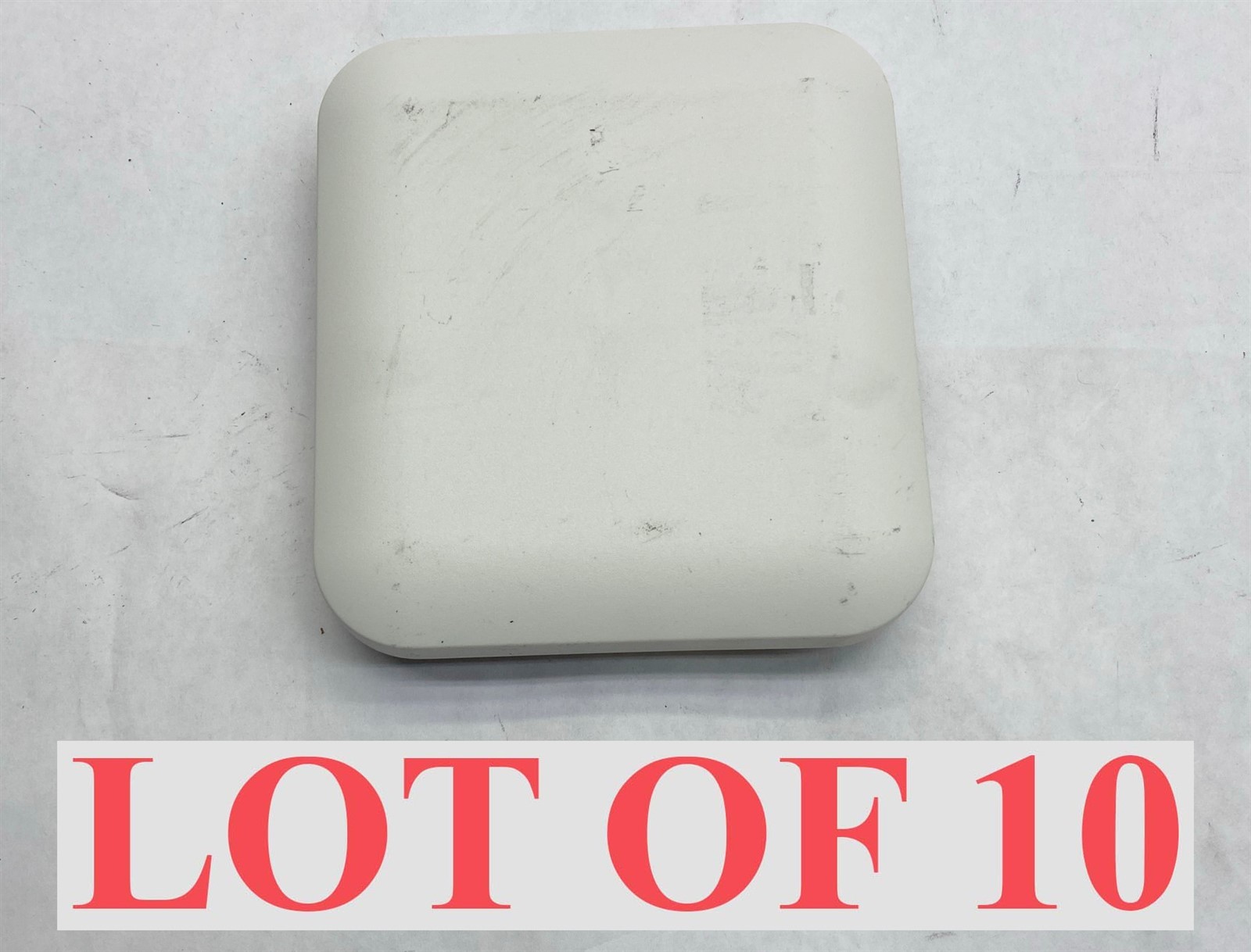

COMPONENTS INCLUDED IN THIS sale:• (10) - SYMBOL TECHNOLOGIES AP-7532I WIRLESS ACCESS POINT AP-7532-67030-US
• (10) - MOUNTING BRACKET
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION: read config...............w1i1c7
write config..............w1i1c6
booting image1 @ address 0x1c020000
U-Boot 5.8.4.0-034R (Jul 16 2016 - 09:34:39)
I2C: ready
Wait.
Done.
DEV ID= 0000cf12
SKU ID = 0
OTP status: eca00018
MEMC 0 DDR speed = 800MHz
Log: ddr40_phy_init.c: Configuring DDR Controller PLLs
Log: offset = 0x18010800
Log: VCO_FREQ is 1600 which is greater than 1Ghz.
Log: DDR Phy PLL polling for lock
Log: DDR Phy PLL locked.
Log: ddr40_phy_init::DDR PHY step size calibration complete.
Log: ddr40_phy_init:: Virtual VttSetup onm CONNECT=0x01CF7FFF, OVERRIDE=0x00077F
FF
Log: ddr40_phy_init:: Virtual Vtt Enabled
Log: DDR Controller PLL Configuration Complete
PHY register dump after DDR PHY init
PHY register dump after mode register write
SHMOO VER 1.13
S300001CB
000012C0
RDLYW0 00000005
RDENW0 00000041
RDQSW0
/> /> 00 /> 01 /> 02 /> 03 /> 04 /> 05 /> 06 /> 07 /> 08 /> 09 /> 10 /> 11 /> 12 /> 13 /> 14 /> 15 />
PW0
/> /> 00 /> 01 /> 02 /> 03 /> 04 /> 05 /> 06 /> 07 /> 08 /> 09 /> 10 /> 11 /> 12 /> 13 /> 14 /> 15 />
NW0
/> /> 00 /> 01 /> 02 /> 03 /> 04 /> 05 /> 06 /> 07 /> 08 /> 09 /> 10 /> 11 /> 12 /> 13 /> 14 /> 15 />
WRDQW0
/> /> 00 /> 01 /> 02 /> 03 /> 04 /> 05 /> 06 /> 07 /> 08 /> 09 /> 10 /> 11 /> 12 /> 13 /> 14 /> 15 />
WRDMW0 00000022
WRDMW0 00000023
ADDR
/> /> 00 />
DRAM: 256 MiB
NAND: cs 0 dev_id word 0 1dc9095
S34ML04G1 (ONFI),
ONFI info: device 512MB, page 2048B, oobsize 64B, block 128KB,
col-addr 2, row-addr 3, 8-bit
Found strap type 0x2 strap page 0x1
REG_ACC_CONTROL c1040010 spare_area_bytes 10 ecc_level 4 eccbytes 7 steps 4
REG_CONFIG 27152300
128 KiB blocks, 2 KiB pages, 16B OOB, 8-bit
NAND: user oob per page: 34 bytes (4 steps)
NAND: device size 512 MiB
Card detected in PCIe port 0
Card detected in PCIe port 1
In: serial
Out: serial
Err: serial
Loading runtime image 1. Press ESC to abort. 0
boot config w1i1c6 -booting linux1/rootfs1
## Booting kernel from Legacy Image at a1007fc0 ...
Image Name: Linux-2.6.35.9-ws-symbol
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 4128896 Bytes = 3.9 MiB
Load Address: a1008000
Entry Point: a1008000
Verifying Checksum ... OK
XIP Kernel Image ... OK
OK
Starting kernel ...
Welcome.
restoring /etc2/./config_version
Running Primary software, version 5.8.4.0-034R
Alternate software Secondary, version 5.7.2.0-008R
Software fallback feature is enabled
Starting daemons...,....,,,
Waiting for system initialization to complete
Please press Enter to activate this console.
ap7532-876408 login: admin
Password:
System is currently using the factory default login credentials.
Please change the default password to protect from unauthorized access.
Enter new password: Please Click Here to Visit Our StoreSearchBy47 - 264340 | Loc: D82 | L: Rob |T: Rob | PM: Nick | QTY: 0| Plan: 50/50 OCD PAYS FEES |20.00"x10.00"x10.00"27.00lbs |Start: $0.00 | BIN: $99.99 | |2024-10-24 ||175709
