TFX- 500W Flex-ATX Power Supply for Small Form-Factor Cases/`
Price: US $82.34
TFX-500W Flex-ATX Power Supply

Your quest for a reliable power source for small form-factor systems has led you to the TFX-500W Flex-ATX Power Supply, crafted to elevate your computing experience. This power supply is not just a component; it’s a gateway to performance, versatility, and peace of mind.

Key Features:
  • ⚡ Maximum Power: 500W – Enough to handle high-performance systems effortlessly.
  • 🌐 Full Range Active PFC: Supports input voltage from 90-264V for seamless operation worldwide.

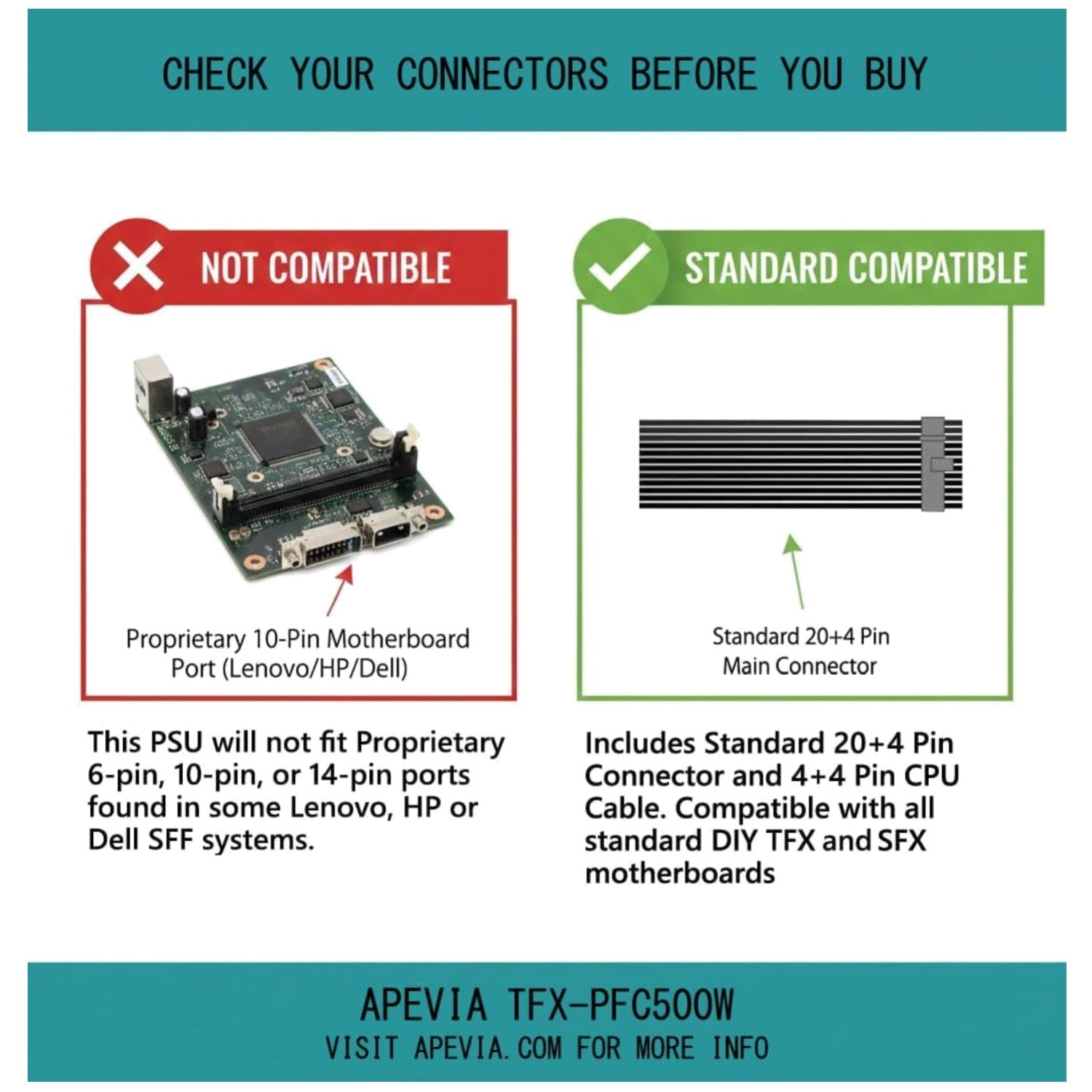

  • 🔌 Versatile Connectors: Includes 1 x 20+4pin Main Power, 1 x 8pin 12V (P4+4), 2x 6+2 PCIe, 3 x SATA, and 3 x 4pin Molex to accommodate various configurations.
  • ❄️ Cooling System: Features a 1 x 80mm fan for efficient heat dissipation ensuring optimal performance.
  • 🛡️ Comprehensive Protection: Equipped with Overvoltage Protection, Overload Protection, Overcurrent Protection, Heating Protection, and Short Circuit Protection for a safe computing environment.
  • 📏 Dimensions: 175.26mm x 83.82mm x 63.5mm (6.9" x 3.3" x 2.5") – Designed to fit in most small TFX form-factor cases effortlessly.
Why Choose TFX-500W?

This power supply is the embodiment of robustness, combining high-quality components, superior cooling, and a high stability with a 5% tolerance on 5V, 3.3V, and 12V outputs. Whether you’re powering a compact workstation or a home theater PC, the TFX-500W offers uncompromised performance, keeping your system reliable and efficient.

Important Setup Information:

For optimal performance, please ensure that:

  • All power supply cables are properly connected.
  • The 8pin CPU connector can be split to accommodate either a 4-pin or 8-pin requirement.
  • The 24pin motherboard connector can also be adjusted to fulfill a 20-pin need.
Conclusion:

Upgrade your computing experience with the TFX-500W Flex-ATX Power Supply, where safety meets power, and performance meets elegance. Invest in a power supply that not only meets your needs but also inspires confidence and reliability. Secure yours today and harness the true potential of your compact computing applications!

Unit Quantity: 1Features: Overvoltage Protection (OVP),Overload Protection (OLP),Overcurrent Protection (OCP),Heating Protection (OTP),Short Circuit Protection (SCP),Full Range Active PFC,90-264V input range,Forced Air Ventilation,1 x 80mm Fan,Non-modular designConnectors: 20+4 Pin,1 x 20+4pin Main Power,1 x 8pin 12V(P4+4),2 x 6+2 PCI Express,3 x SATA,3 x 4pin MolexVoltage Compatibility: 500 W,90 V,264 VCompatible Model: APEVIA TFX-PFC500WCooling: 1 Fan,1 x 80mm Fan,Forced Air VentilationType: Power SupplyMaximum Power: 500 WColor: BlackUnit Type: UnitForm Factor: TFXNumber of Outlets: 0Maximum Wattage: 500 WMaximum Input Current: 20 A
